Category | Specifications |
Brand | Bionoon |
Temperature Control Precision | ±1℃ |
Temperature Range | Room Temperature ~ 100℃ |
Price Range | Negotiable |
Instrument Type | Vacuum Centrifugal Concentrator,suit including main unit+cold trap+vacuum oil pump. |
Origin Category | Domestic (Made in China) |
Application Fields | Food/Agricultural Products, Bio-industry, Agriculture/Forestry/Animal Husbandry/Fishery, Public Security/Judiciary, Pharmaceutical/Biopharmaceutical |
Ultimate Vacuum Value | ＜ 10 Pa |
Rotational Speed Range | 0 ~ 2000 rpm |
Centrifugal Force | 590 × g |
Timing Range | 0 ~ 99h59min |
Noise Level | ≤ 50 dB(A) |
Power Supply | 220V |
Concentrated Sample Capacity | 1.5 mL ~ 250 mL |
Cold Trap Temperature | Standard: -65℃; Optional: -80℃, -110℃ |
Vacuum Pump | Included |
Centrifugal Imaging | Optional |
Product Description
The BIONOON VAC-P1 Bionoon Vacuum Centrifugal Concentrator is suitable for evaporating solvent samples with small volumes and medium boiling points. It has the function of quickly and safely evaporating water and organic solvents from samples, and can be used with EP tubes, glass test tubes, various centrifuge tubes, chromatographic vials, centrifuge bottles, or 96-well plates.
Ⅰ Technical Advantages
1. High Throughput: Capable of processing dozens to hundreds of samples simultaneously, with no cross-contamination.
2. Low-Temperature Concentration: Prevents sample loss, denaturation, decreased activity, and oxidation.
3. Minimal Sample Loss: No foam formation in samples, resulting in low loss and high recovery rate.
4. Safe & Simple Operation: One-key operation, safe and convenient, avoiding misoperation.
Ⅱ Working Principle
When pressure decreases, the boiling point of the solvent also decreases accordingly. When the pressure drops to a certain level, the solvent can boil and evaporate under relatively low temperature conditions. To prevent sample evaporation and cross-contamination, high-speed centrifugal rotation technology is adopted to ensure that samples remain in the sample tubes without splashing out.
Ⅲ Application Scope
1. Oligomers and peptides
2. Synthesis and separation of organic substrates
3. RNA/DNA research
4. Clinical diagnostics
5. ADMET (Drug Metabolism Research)
6. Protein crystallography
7. Pharmaceutical analysis and medicinal chemistry
8. General laboratory concentration
Ⅳ Product Features

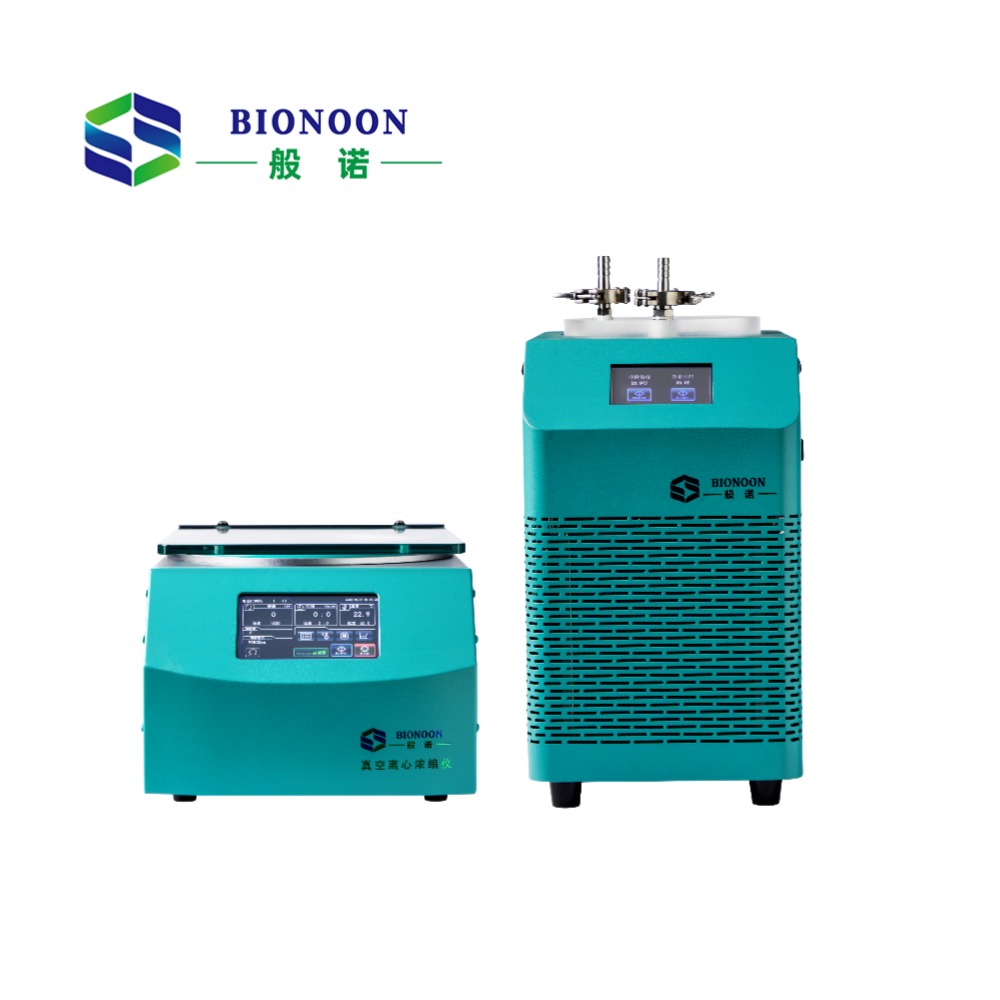

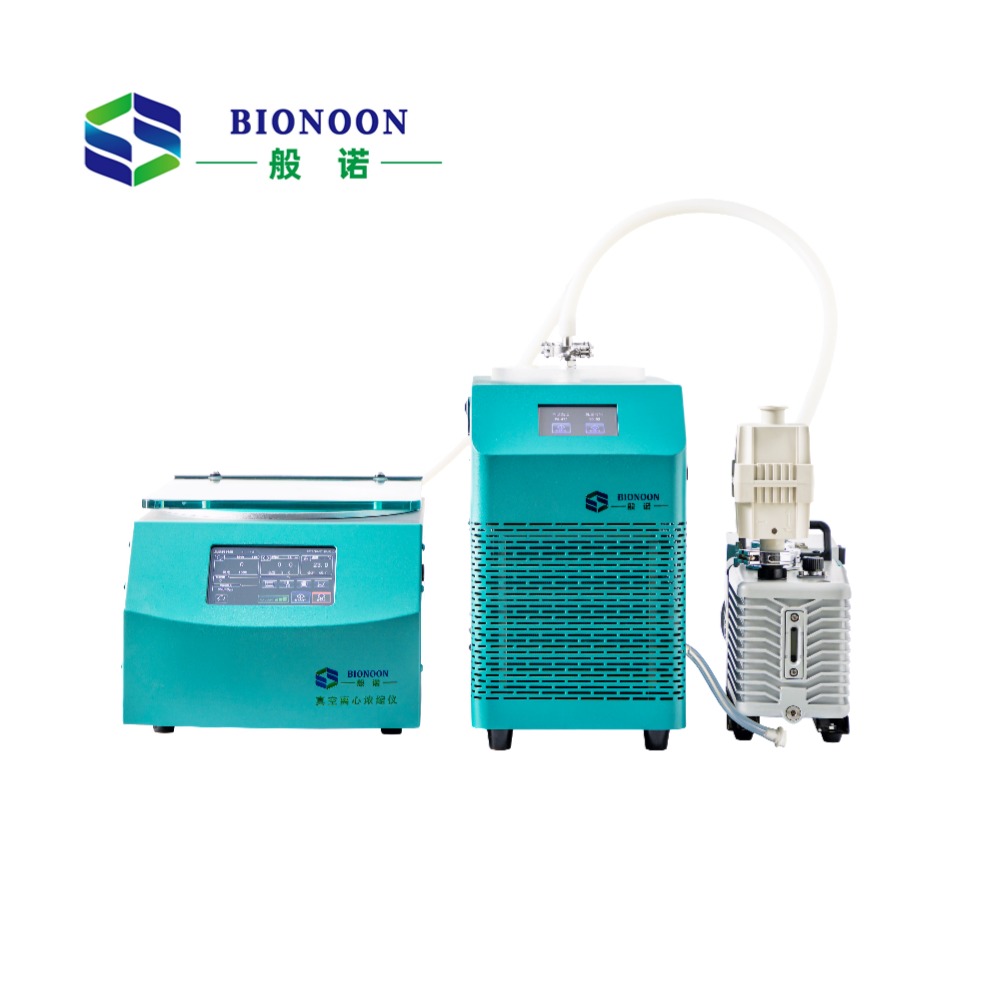

1. Modular Design: High flexibility, composed of three parts: main unit, vacuum pump, and low-temperature cold trap.

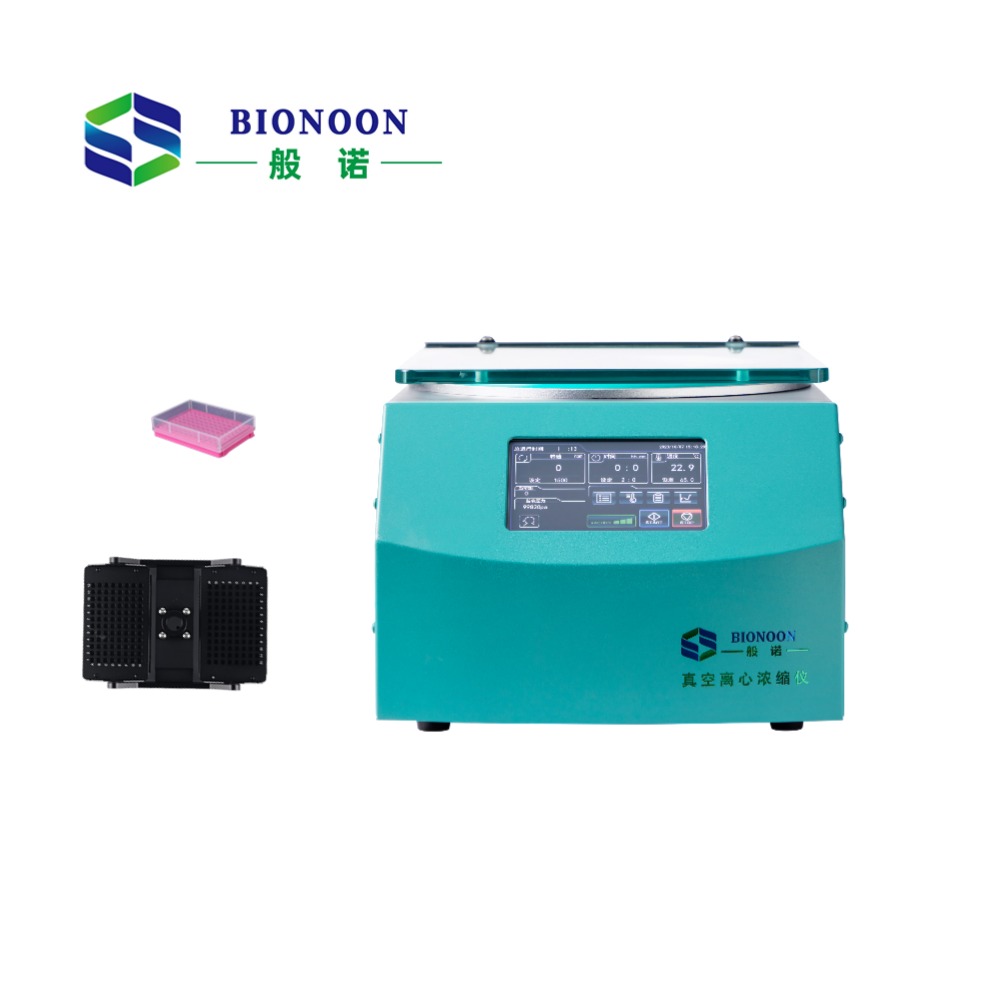

2. 7-inch Touch Screen Display: Shows equipment operation status, program group number, set and actual rotational speed, set and actual temperature, set time and running time.
3. Built-in Programs: Equipped with 32 different built-in programs, which can be called arbitrarily according to different samples.
4. High Throughput: Can concentrate 184 pieces of 2 mL samples at a time; equipped with an ultra-low temperature cold trap to effectively improve solvent collection efficiency.
5. Room-Temperature Concentration Support: Temperature range: Room temperature ~ 100℃, adjustable in 0.1℃ increments.
6. Chemical Corrosion-Resistant Centrifugal Chamber: Acid and alkali resistant, integrally formed, with R-angle arc design for easy cleaning.
7. Preheating Function: Can heat up to 100℃, reducing concentration time and improving work efficiency.
8. Built-in Vacuum Delay Function: Effectively protects samples and prevents splashing.
9.AC frequency conversion maintenance-free induction motor that has an electromagnetic drive centrifugal system which can make less noise and maintenance-free;
10.The five-stage temperature control design of the sample chamber effectively protects the safety of the sample;
11.Built-in vacuum control system allows setting different vacuum levels according to experimental requirements.
12.One-button start function makes the whole process is completed in one go and with a high degree of automation.
13.Quick-insert rotor design, can quickly change different rotors, rotors are formed without solder joints.

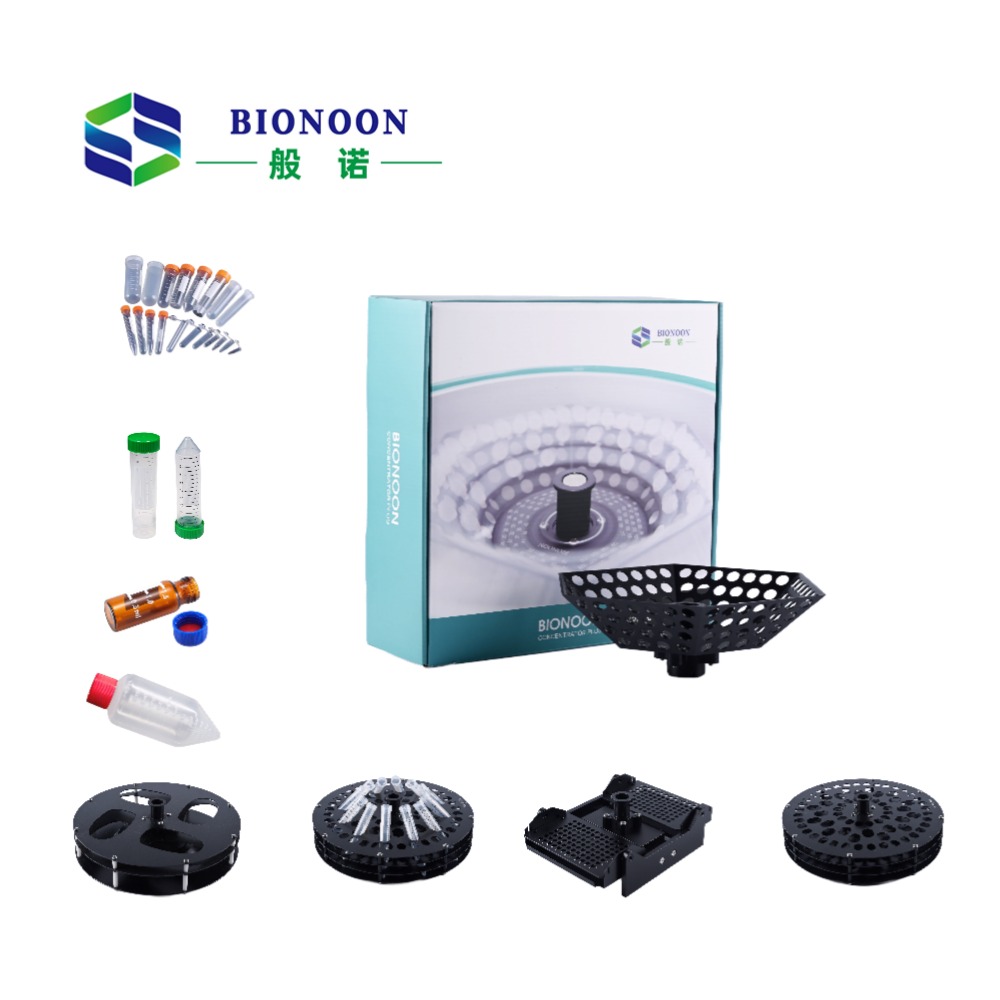

14.Compatible rotor capacity: 184*1.5ml/2ml; 132*1.5/2ml; 72*5ml; 24*15ml; 12*50ml; 8*100ml; 4*250ml, 2* 96-well plate.

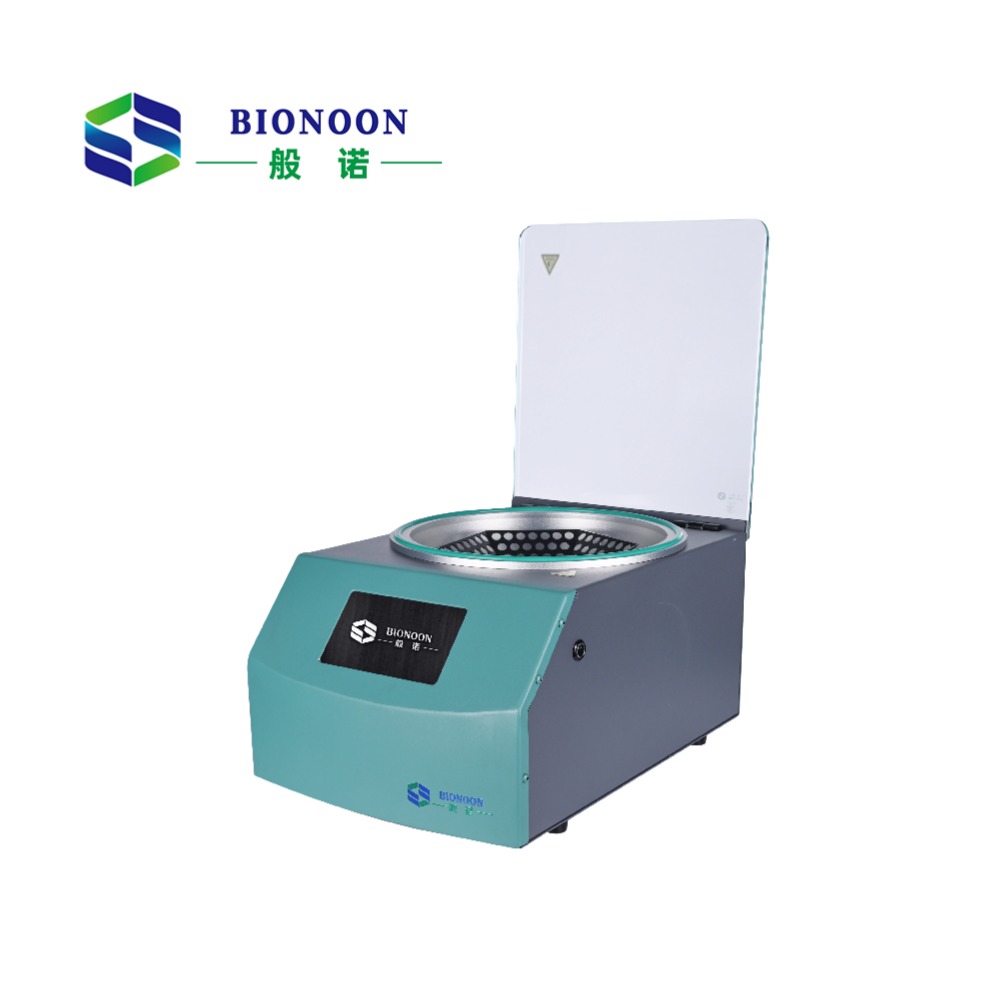

15.High penetration tempered glass cover, easy to observe the evaporation situation.
16.An optional stroboscope can be used to observe sample concentration during instrument operation.
17.The cold trap adopts PLC control, 4.3 inch touch screen display, showing the cold trap temperature, setting time, total running time, defrosting time, one-button start;
18.The 304 stainless steel cold trap body is formed in one body, the coil is in the groove, and the outer coil is left 20-30mm space around the inner wall of the groove, which is convenient for users to clean.
19.The cold trap has a one-click defrosting function, and the defrosting time can be modified arbitrarily.
Ⅴ Technical Parameters
Parameter | Specifications | Parameter | Specifications |
Rotational Speed Range | 0 rpm ~ 2000 rpm | Temperature Control Precision | ±1℃ |
Centrifugal Force | 590 × g | Ultimate Vacuum Value | ≤ 10 Pa |
Timing Range | 0 ~ 99h59min | Noise Level | ≤ 50 dB(A) |
Cold Trap Temperature | Standard-65℃ Optional-85℃，-110℃
| Total Power | 1300 W |
Sample Chamber Pre-cooling Function | Available | Power Supply | AC 220V 50Hz/60Hz 10A |
Centrifugal Imaging/ stroboscope | Optional | Dimensions (L×D×H) | main unit 520 × 350 × 240 mm |
Temperature Control Range | Room Temperature ~ 100℃ | Vacuum oil Pump | Standard Configuration |
| Vacuum control | Available | Compatible rotor | 184*1.5ml/2ml; 132*1.5/2ml; 72*5ml; 24*15ml; 12*50ml; 8*100ml; 4*250ml, 2* 96-well plate. |
| Cold trap | -65℃，3L | Pumping speed
| 120L/min |
