Room Temperature ~ 100℃; Adjustable in 0.1℃ increments
Price Range
Negotiable
Instrument Type
Vacuum Centrifugal Concentrator
Origin Category
Domestic (Made in China)
Application Fields
Food/Agricultural Products, Bio-industry, Agriculture/Forestry/Animal Husbandry/Fishery, Public Security/Judiciary, Pharmaceutical/Biopharmaceutical
Display Screen
7-inch Touch Screen
Rotational Speed
0 ~ 2000 rpm
Centrifugal Force
590 × g
Timing Range
0 ~ 99h59min
Ultimate Vacuum Value
≤ 2 mbar
Noise Level
≤ 60 dB(A)
Total Power
800 W

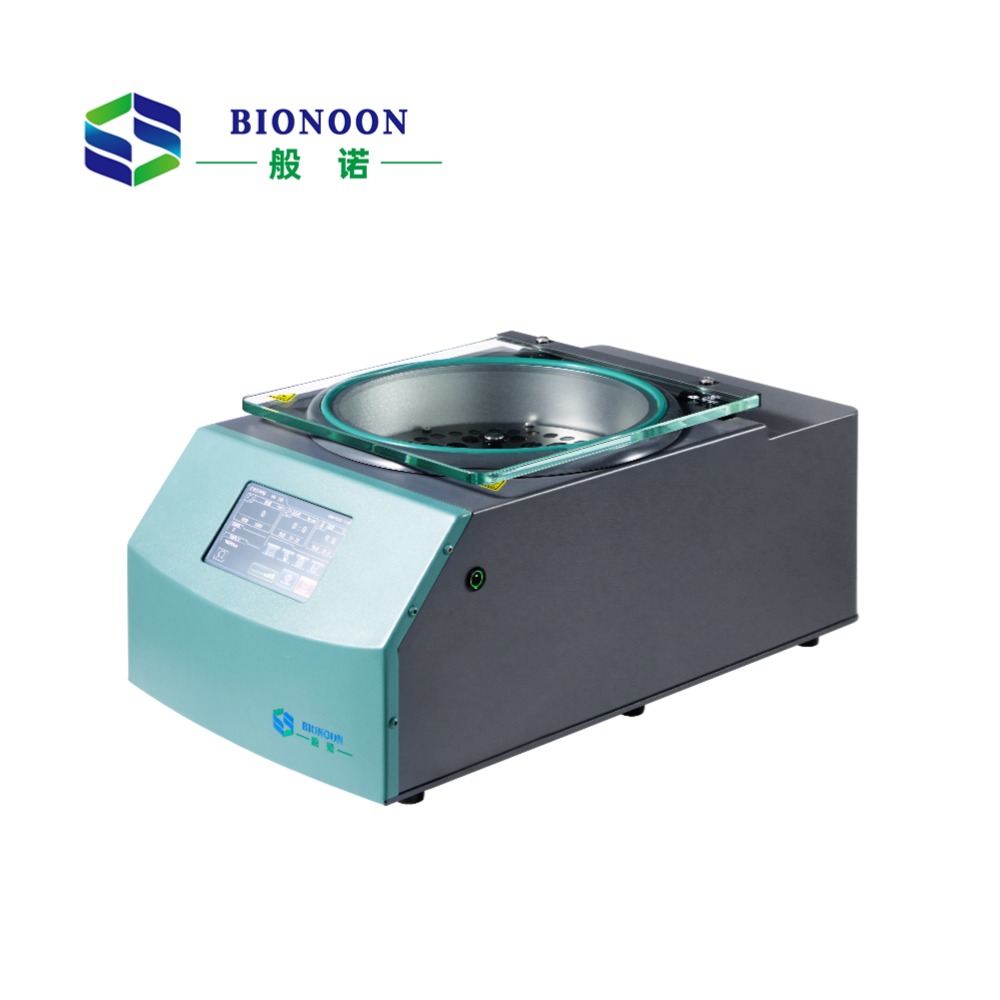

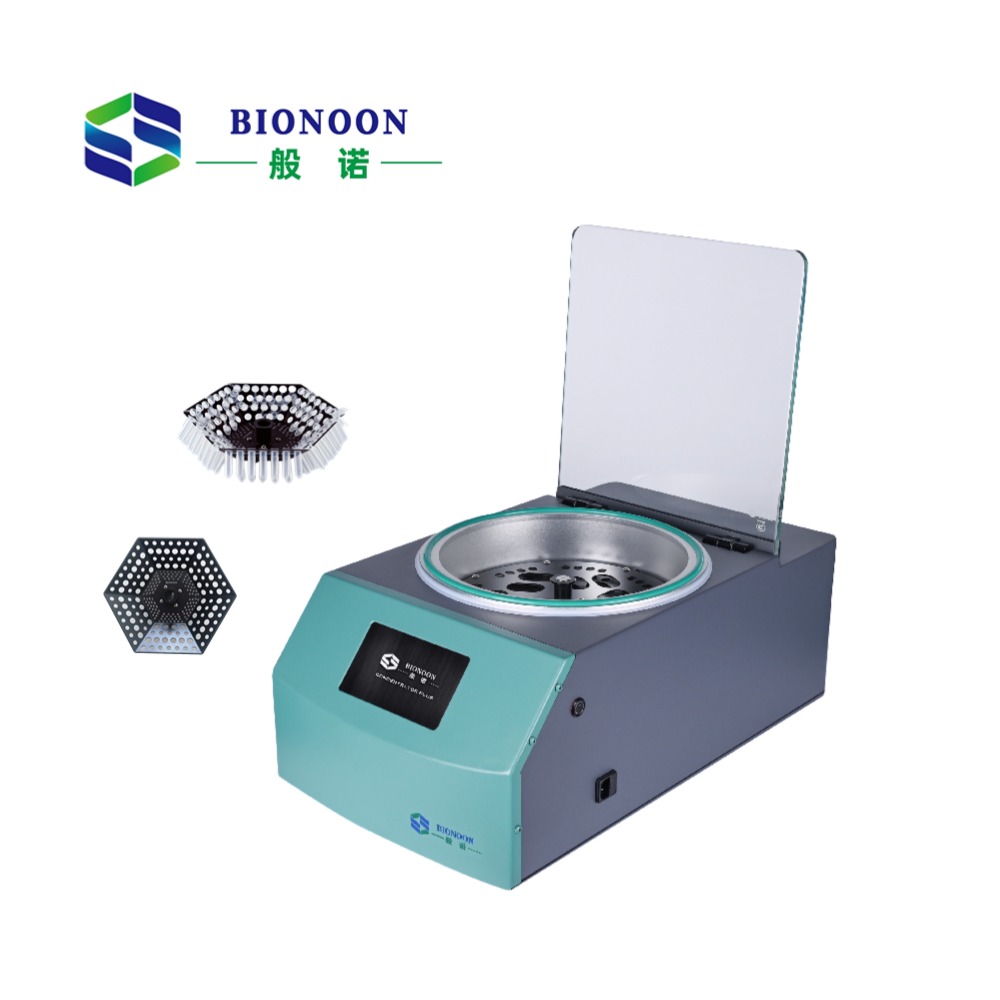

Bionoon VAC-AIO integrated vacuum centrifugal concentrator adopts an integrated design, which is three-dimensional and saves space. It is suitable for evaporating solvent samples with a small sample size and medium boiling point. It has the function of quickly and safely evaporating water and organic solvents in the sample. It can be used in EP tubes, glass test tubes, various centrifuge tubes, chromatographic bottles, centrifuge bottles or 96-well plates.
The vacuum centrifugal concentrator is an instrument that integrates multiple technologies such as centrifugation, vacuum, and heating. Below is a detailed introduction:
I. Working Principle
Under vacuum conditions, the reduction in pressure lowers the boiling point of the solvent. When the pressure reaches a certain level, the solvent can boil and evaporate at a relatively low temperature. At the same time, the centrifugal force generated by high-speed rotational centrifugation prevents sample bumping and splashing, ensuring the sample remains in the centrifuge tube at all times and avoiding cross-contamination. In addition, methods such as cold traps and filtration can be used to effectively collect the evaporated solvent.
II.Technical Advantages
1. High-throughput : Dozens to hundreds of samples can be processed at the same time without cross-contamination.
3.Less loss: The sample does not produce foam, so that the loss is less and the yield is high.
4.Safe and simple : One-key operation, safe and convenient, avoid misoperation.
III. Product Features
1. The whole machine adopts an integrated design, three-dimensional, small volume, and space-saving;
2. Built-in imported diaphragm pump, high pumping speed, more environmentally friendly, with an external solvent trap bottle.

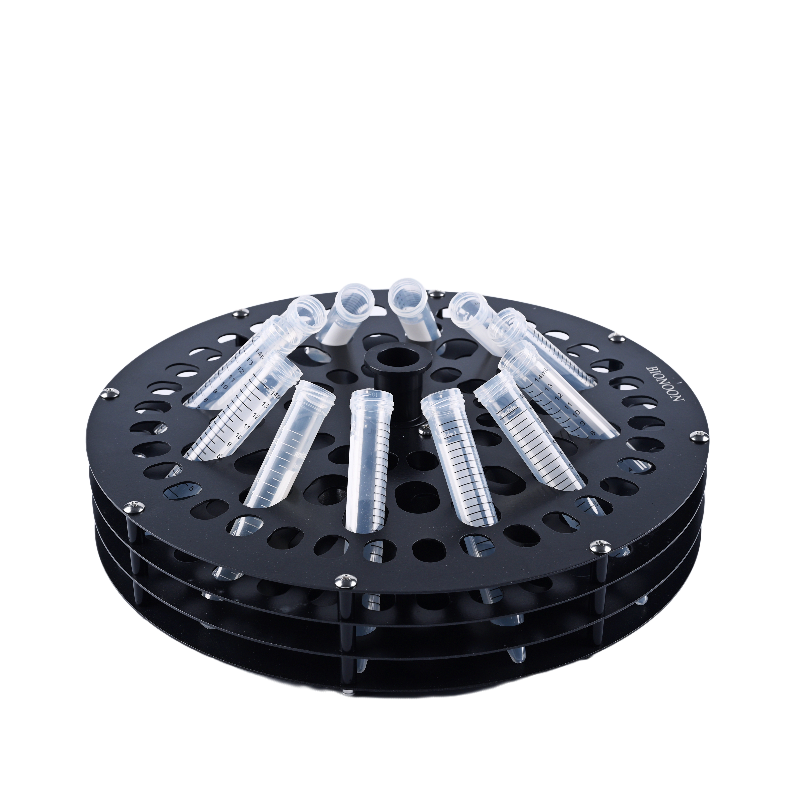

3. The quick-plug rotor is integrally formed, easy to replace and more durable;
4. Anti-chemical corrosion centrifugal chamber, acid and alkali resistance, one-piece molding, R angle arc design, easy to clean;
5. AC frequency conversion maintenance-free induction motor, electromagnetic drive centrifugal system, low noise and maintenance-free;
6. One-button start function, the whole process is completed in one go, with a high degree of automation;
7. Built-in 32 groups of different programs, which can be called arbitrarily according to different samples;
8. The five-stage temperature control design of the sample chamber effectively protects the safety of samples.
IV. Application Fields
1. Oligomers and peptides ;
2. Synthesis and separation of organic substrates
3. RNA/DNA research
4. Clinical diagnostics
5. ADMET (Drug Metabolism Research)
6. Protein Crystallography
7. Pharmaceutical analysis, medicinal chemistry
8. General laboratory enrichment
In summary, relying on its working principle, efficient concentration capability, precise control performance, and wide application fields, the vacuum centrifugal concentrator plays an indispensable role in multiple fields such as scientific research, industrial production, and environmental protection.
