Category | Specifications |
Brand | Bionoon |
Temperature Control Precision | ±1℃ |
Temperature Range | -10℃ ~ 100℃ |
Price Range | Negotiable |
Instrument Type | Vacuum Centrifugal Concentrator Refrigerated type; One set. |
Origin Category | Domestic (Made in China) |
Application Fields | Food/Agricultural Products, Bio-industry, Agriculture/Forestry/Animal Husbandry/Fishery, Public Security/Judiciary, Pharmaceutical/Biopharmaceutical |
Ultimate Vacuum Value | ≤ 10 Pa |
Rotational Speed Range | 0 ~ 2000 rpm |
Centrifugal Force | 590 × g |
Timing Range | 0 ~ 99h59min |
Noise Level | ≤ 60 dB(A) |
Power Supply | 220V |
Total Power | 1200 W |
Centrifugal Imaging | Optional |
Sample Chamber Cooling Function | Available |
Sample Chamber Temperature | -10℃ ~ 100℃ |
Cold Trap Temperature | Standard: -65℃; Optional: -80℃, -110℃ |

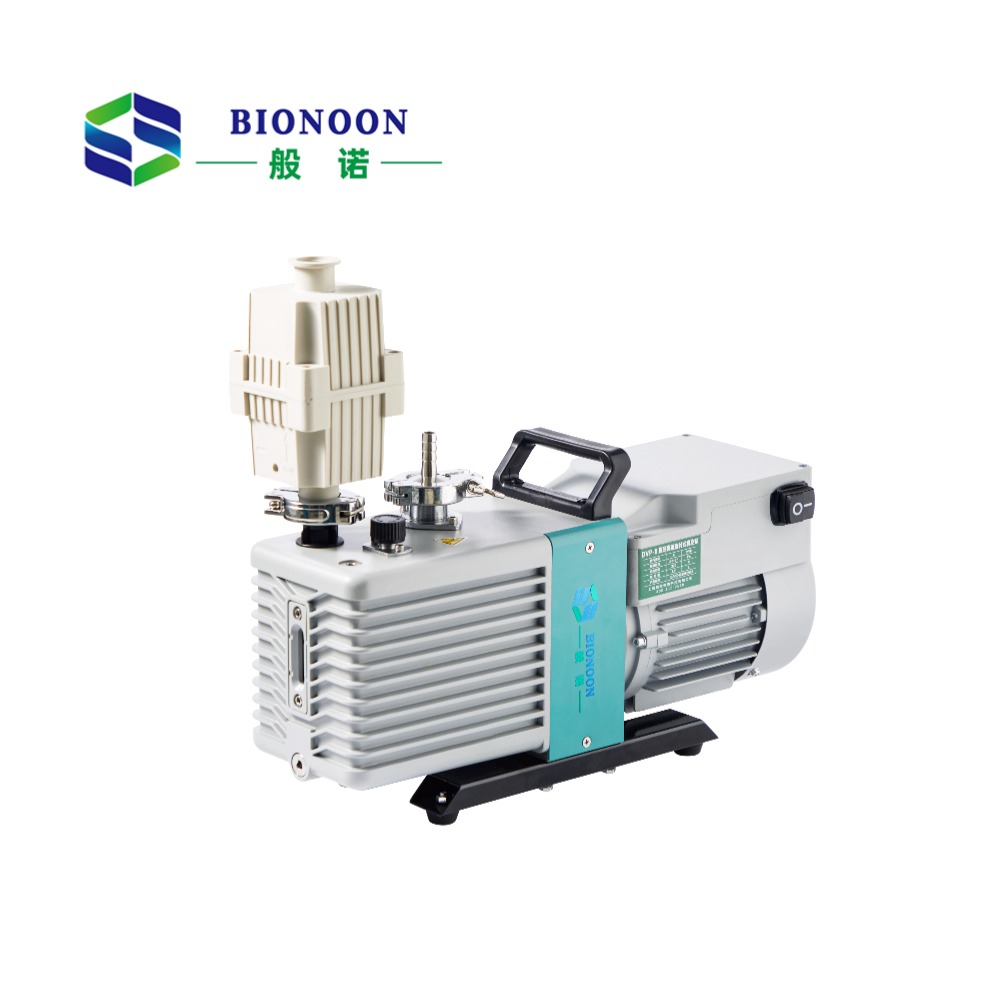

Vacuum Pump Configuration | Included,Standard: Vacuum oil pump Optional:diaphragm pump |
Concentration Capacity | 1.5 mL ~ 250 mL/bottle |
Product Description

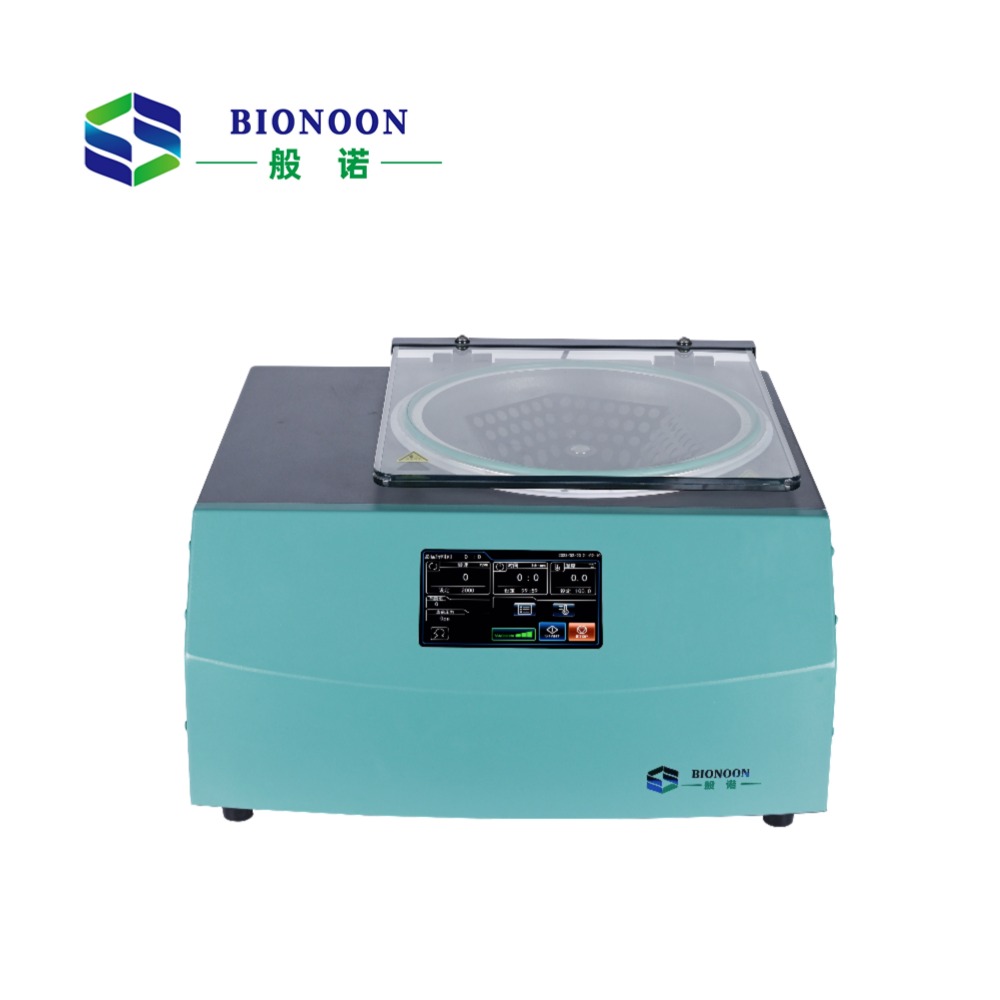

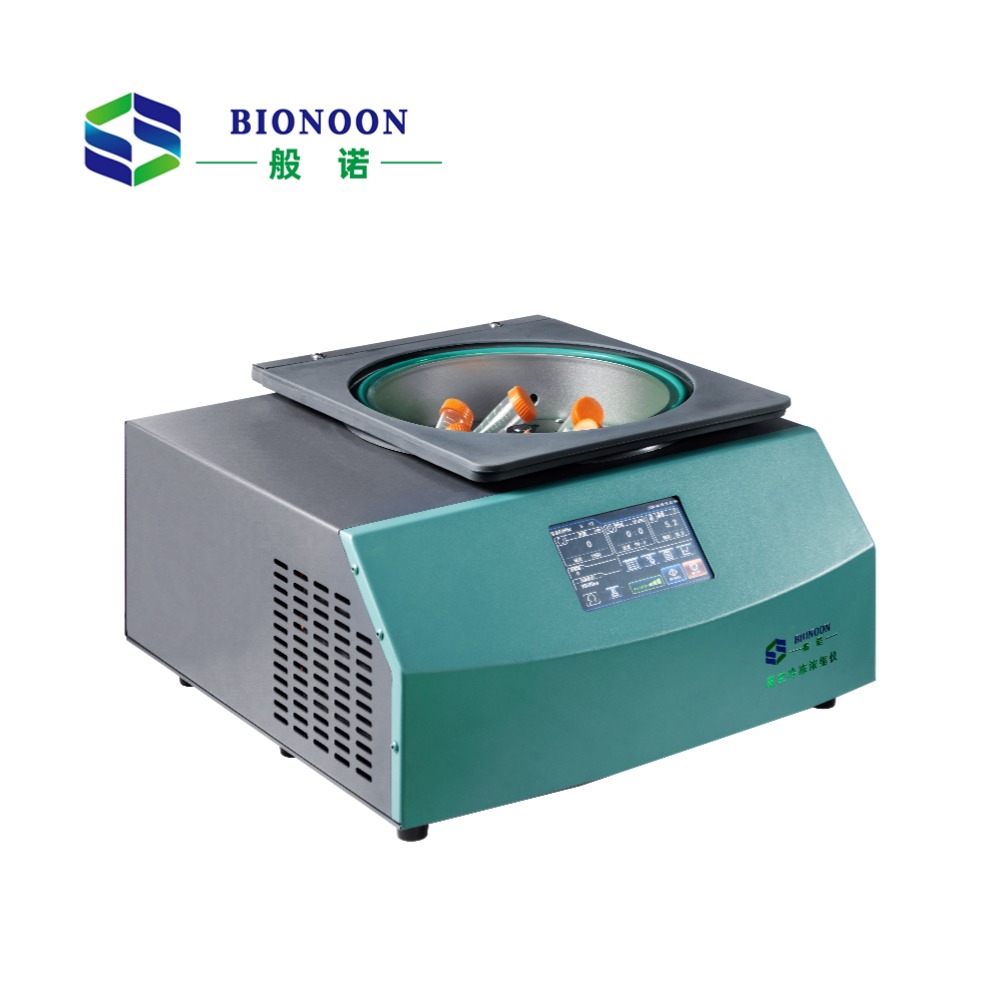

The BIONOON VAC-RP1 Refrigerated Type Vacuum Centrifugal Concentrator from Shanghai Bionoon is specially developed for concentrating heat-sensitive samples. Including the main unit, cold trap and vacuum oil pump.It can meet the low-temperature concentration needs of heat-sensitive samples such as RNA/DNA and proteins, and also satisfy room-temperature concentration requirements. It has a wide temperature control range, with the chamber temperature supporting -10℃ ~ 100℃. During use, different types of rotors, as well as EP tubes, glass test tubes, various centrifuge tubes, chromatographic vials, centrifuge bottles, or 96-well plates, can be selected according to the sample volume.
ⅠWorking Principle
When pressure decreases, the boiling point of the solvent also decreases accordingly. When the pressure drops to a certain level, the solvent can boil and evaporate under relatively low temperature conditions. To prevent sample evaporation and cross-contamination, high-speed centrifugal rotation technology is adopted to ensure that samples remain in the sample tubes without splashing out.
Ⅱ Technical Advantages
1. High Throughput: Capable of processing dozens to hundreds of samples simultaneously, with no cross-contamination.
2. Low-Temperature Concentration: Prevents sample loss, denaturation, decreased activity, and oxidation.
3. Minimal Sample Loss: No foam formation in samples, resulting in low loss and high recovery rate.
4. Safe & Simple Operation: One-key operation, safe and convenient, avoiding misoperation.
Ⅲ Application Scope
1. Oligomers and peptides
2. Synthesis and separation of organic substrates
3. RNA/DNA research
4. Clinical diagnostics
5. ADMET (Drug Metabolism Research)
6. Protein crystallography
7. Pharmaceutical analysis and medicinal chemistry
8. General laboratory concentration
Ⅳ Product Features
1. Refrigerated Type: Supports low-temperature concentration; the concentrator chamber temperature ranges from -10℃ to 100℃ (adjustable in 0.1℃ increments), effectively protecting heat-sensitive biological samples.
2. Modular Design: The centrifugal chamber/vacuum chamber, vacuum oil pump, and cold trap are all independent units, allowing free assembly.
3. 7-Inch Touch Screen Display: Shows equipment operation status, program group number, set and actual rotational speed, set and actual temperature, set time and running time.
4. One-Click Start Function: The entire process is completed in one go with high automation.
5. Built-in Vacuum Delay Function: Vacuum is drawn only after the rotational speed reaches the preset value, effectively protecting samples and preventing splashing.
6. Maintenance-Free Induction Motor: Equipped with an electromagnetic drive centrifugal system, featuring low noise and no maintenance required.
7. Quick-Connect Rotor Design: Enables fast replacement of different rotors; the rotors are integrally formed without welding points.
8. Chemical Corrosion-Resistant Centrifugal Chamber: Integrally formed from aluminum alloy with an R-angle arc design for easy cleaning.
9. Electronic Pressure Sensor: Provides more accurate value display, automatic vacuum release, simple and safe operation, and is equipped with an automatic on/off function.
10. High-Transparency Tempered Glass Cover: Facilitates observation of the evaporation process.

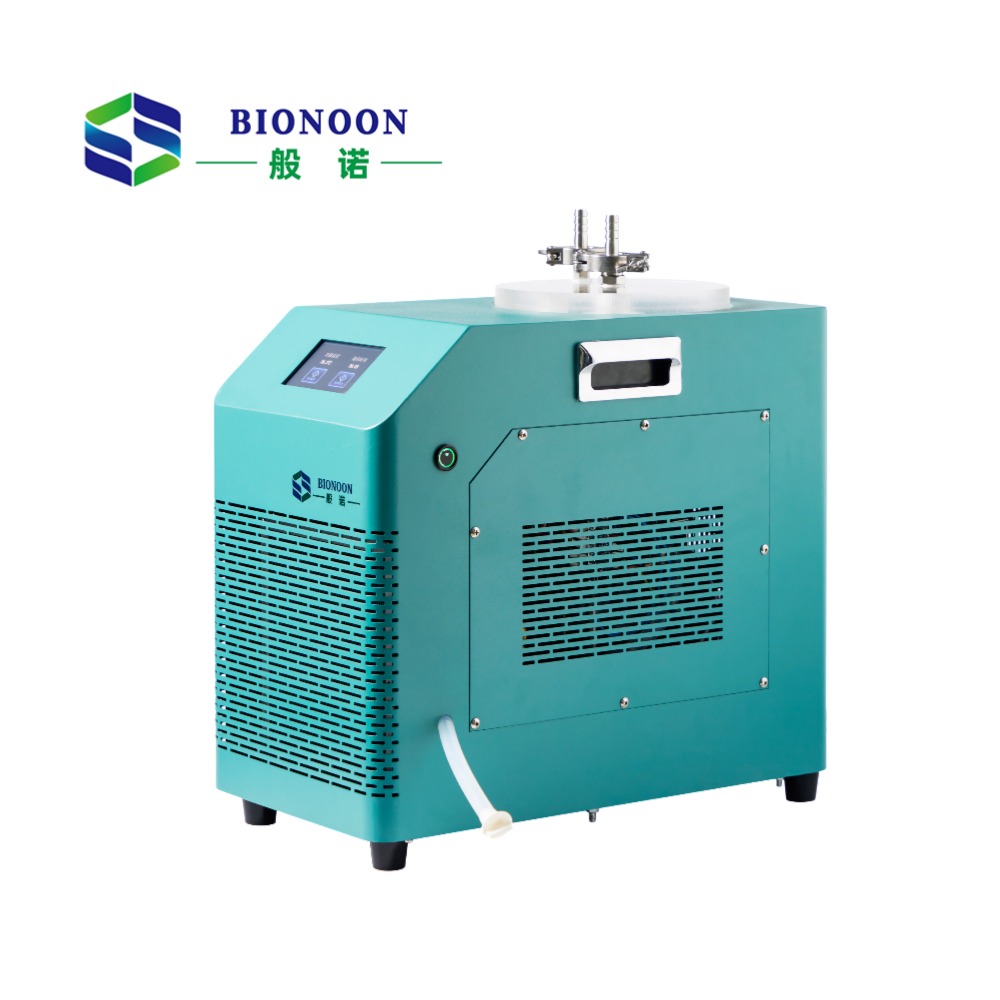

11. Equipped with Upgraded Version 2.0 Low-Temperature Cold Trap: Compact size, fast cooling speed, and with one-click defrosting function.
Technical Parameters
Parameter | Specifications | Parameter | Specifications |
Rotational Speed Range | 0 rpm ~ 2000 rpm | Temperature Control Precision | ±1℃ |
Centrifugal Force | 590 × g | Ultimate Vacuum Value | ≤ 10 Pa |
Timing Range | 0 ~ 99h59min | Pumping Speed | 2L/S
|
Sample Chamber Pre-Cooling Function | Available | Power Supply | AC 220V 50Hz/60Hz 10A |
Centrifugal Imaging | Optional | Noise Level | ≤ 60 dB(A) |
Temperature Control Range | -10℃ ~ 100℃ | Cold Trap Temperature | Standard: -65℃ |
