Category | Specifications |
Brand | BIONOON |
Condensing Temperature | ≤ -65℃ (no-load); Optional ≤ -90℃ (no-load) |
Water Catching Capacity | 5kg, 5kg per 24 hours |
Vacuum Degree | ＜ 10 Pa |
Freeze-Drying Area | 0.14㎡ |
Price Range | Negotiable |
Instrument Type | Standard Shelf Type |
Application Scope | Laboratory |
Origin Category | Domestic (Made in China) |
Application Fields | Environmental Protection, Food/Agricultural Products, Bio-industry, Agriculture/Forestry/Animal Husbandry/Fishery, Pharmaceutical/Biopharmaceutical |
Sample Tray Size | Φ240mm |
Sample Tray Quantity | 3 |
Sample Tray Spacing | 70mm |
Vacuum Pumping Rate | 120 L/min |
Total Power | 900 W |
Product Description

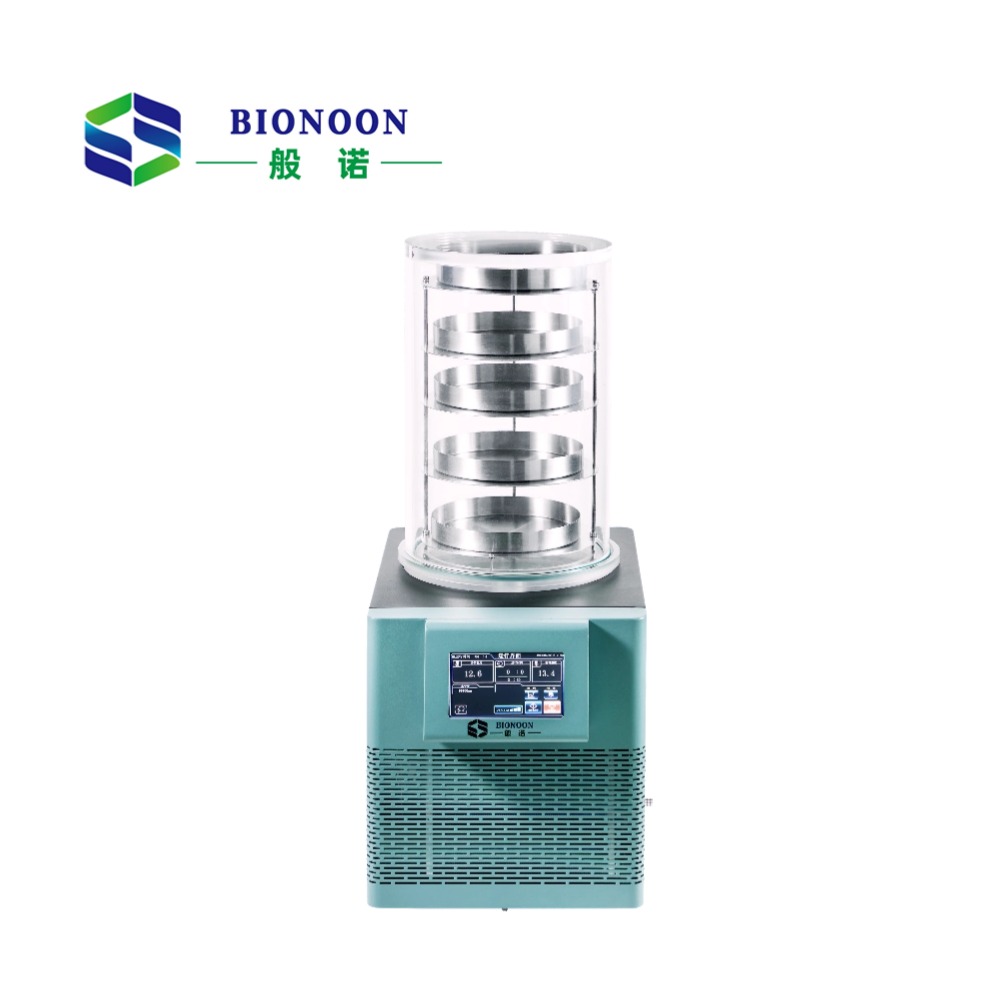

The BIONOON-16A Laboratory-Scale Lyophilizer is mainly used in medicine, pharmaceuticals, biological research, chemical engineering, and food industries. Items treated with its freeze-drying technology are easy to store long-term, and can recover to the pre-freeze-dried state (with original biochemical properties retained) after adding water.

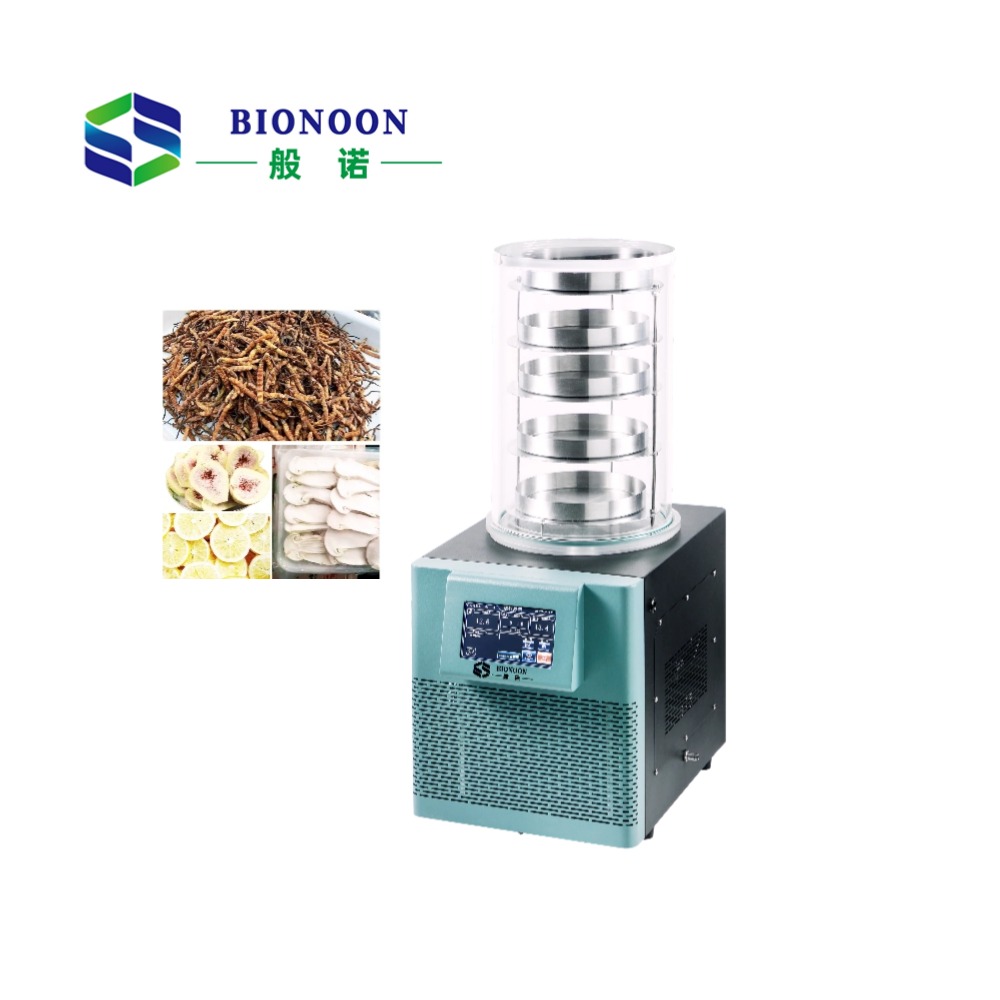

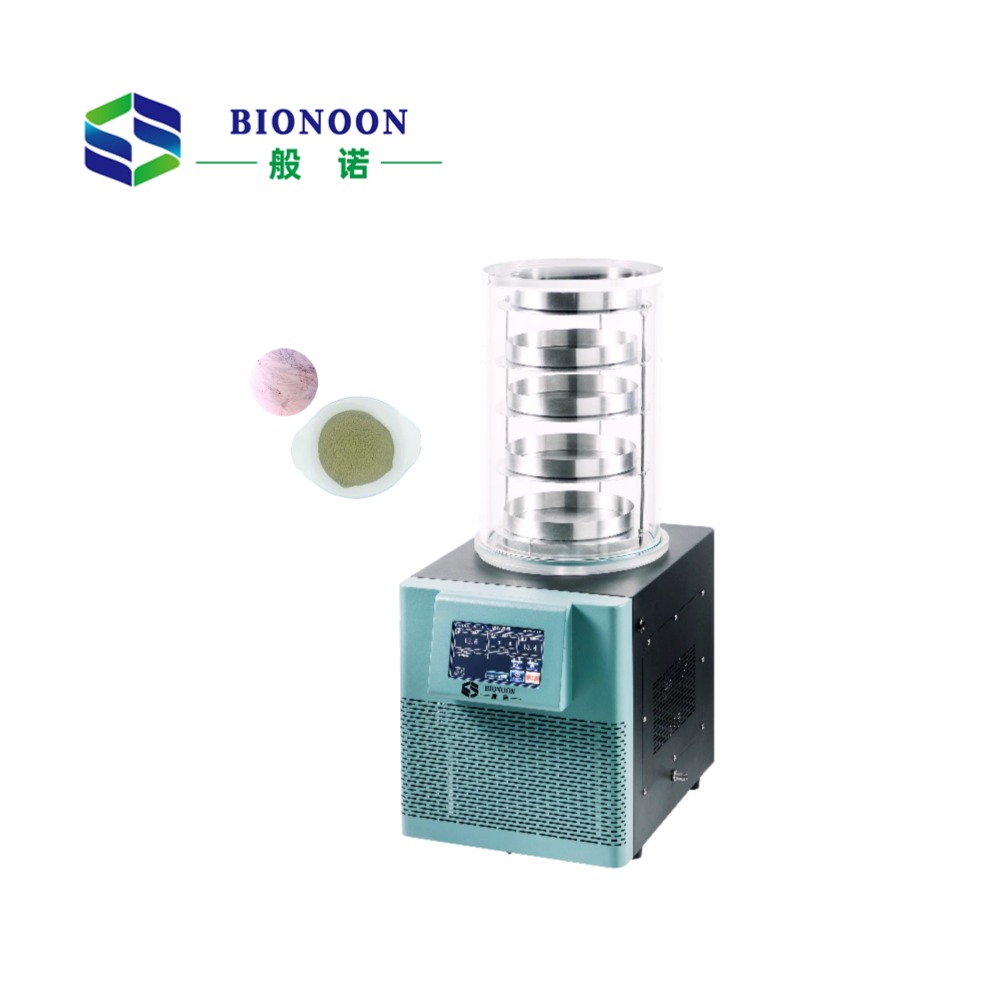

The BIONOON-16A Lyophilizer is suitable for the freeze-drying of conventional bulk materials (liquid, paste, solid). It is mainly used for laboratory use or small-batch production, and can meet the conventional freeze-drying needs of most laboratories.
I. Working Principle
The drying principle of the laboratory-scale vacuum freeze-dryer is mainly based on the law of three states change of matter. When a substance is cooled to a certain low temperature, its molecular motion slows down and forms a solid state. In a vacuum environment, the external pressure on water molecules is reduced, and the distance between molecules increases—allowing water molecules to sublimate directly from solid to gas to achieve drying. This drying method preserves the original nutritional components and color of the material, while preventing oxidation and deterioration of heat-sensitive substances.
II. Application Scope
Lyophilizers are widely used in medicine, pharmaceuticals, biological research, chemical engineering, and food industries. Items processed by freeze-drying are easy to store for a long time; after adding water, they can return to the state before freeze-drying and retain their original biochemical properties.
III. Features
1. Automatic Control System
1. Equipped with a 7-inch LCD touch screen and self-developed BIONOON operating system, with sensitive touch response.
2. High automation level and easy operation: supports one-click start/stop, automatic defrosting, and automatic drainage.
3. Power failure protection function: automatically releases vacuum after power failure to prevent vacuum pump oil backflow and protect sample safety.
4. Imported pressure relief valve for automatic vacuum release; compatible with filters to ensure sample cleanliness.
5. Built-in cold trap vacuum protection system: protection parameters can be set to extend the service life of the vacuum system.
6. Standard permission management to ensure the safety of experimental data.
7. Intelligent data recording system: allows query of historical curves and records, and enables data export via USB or WIFI.
8. Upgradable system maintenance reminder function: vacuum pump oil change reminder, radiator cleaning reminder, instrument operation time recording, voltage deviation reminder, etc.
9. Adopts PLC control system: provides system customization services, and the software system is upgradable.
10. Supports WIFI and IoT (Internet of Things) technology: a mobile APP can be downloaded for remote real-time monitoring and equipment operation (optional).
11. Batch instrument management function: supports cloud storage of data for multiple instruments (optional).
12. Automatic freeze-drying end detection system: facilitates real-time mastery of freeze-drying progress (optional).
2. Refrigerating System

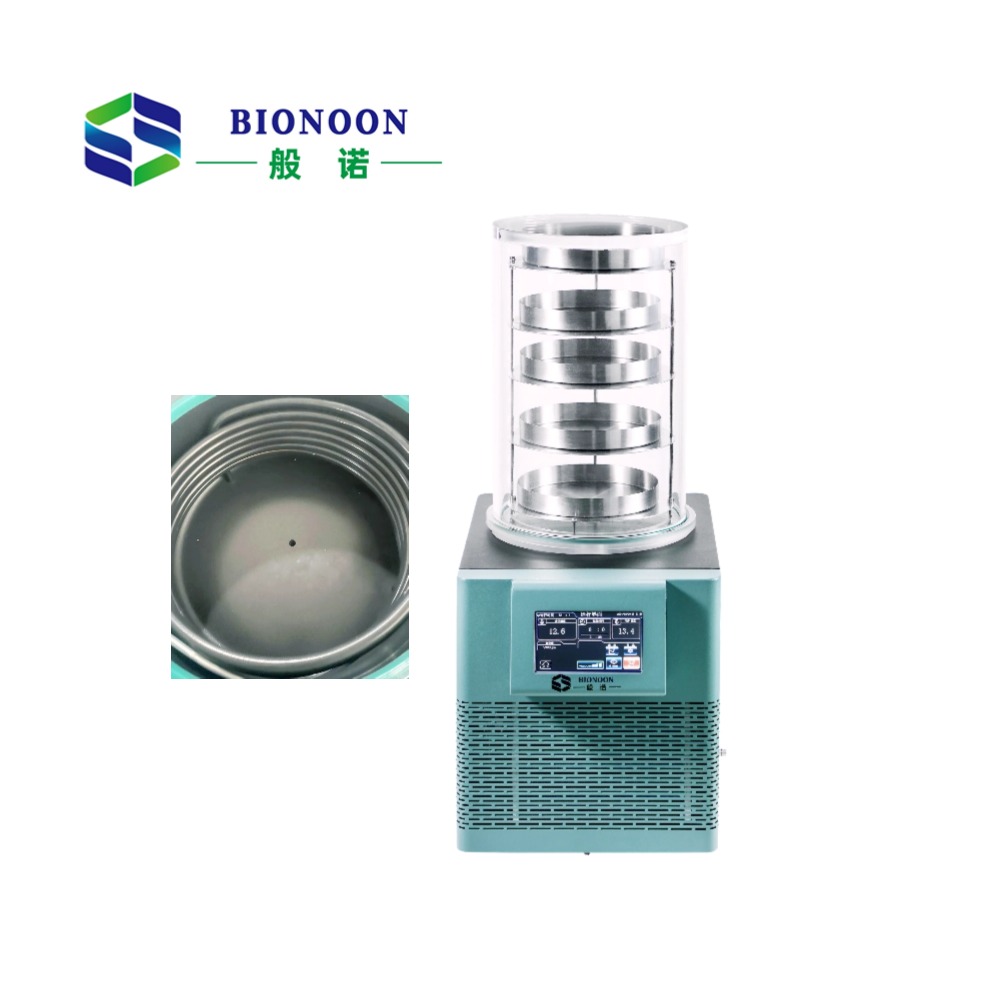

1. Built-in 304 stainless steel condenser tube: the displayed temperature is consistent with the actual temperature, ensuring better water catching performance.
2. Adopts hybrid refrigeration technology, achieving lower and more stable temperature.
3. Equipped with a high-quality refrigeration compressor.
3. Vacuum System
1. 30cm large-diameter integrally formed cold trap: thick, durable, and with better airtightness.
2. Built-in high-precision vacuum sensor for accurate display of vacuum degree.
3. Compatible with high-quality domestic or imported vacuum pumps to meet different customer needs.
Ⅳ. Technical Parameters
1. Freeze-Drying Area: 0.14㎡
2. Sample Tray Size: Φ240mm
3. Sample Tray Quantity: Standard 4, Optional 5-8
4. Cold Trap Temperature: ≤ -65℃ (no-load), Optional ≤ -90℃ (no-load)
5. Water Condensing Capacity & Efficiency: 5kg, 5kg per 24 hours
6. Vacuum Pumping Rate: ≥ 120 L/min
7. Ultimate Vacuum Degree: ＜ 10 Pa
8. Total Power: 900 W
9. Overall Dimensions of Main Unit (L×W×H): 500×380×520mm
10. Defrost Mode: Automatic Defrosting
11. Drainage Mode: Automatic Drainage
V. Configuration List
1. Freeze-Dryer Main Unit × 1
2. Vacuum Pump × 1
3. Standard Drying Rack × 1
4. Drying Chamber × 1
5. Sample Trays (Φ220mm) × 4
6. Pre-Freezing Rack × 1
