Category | Specifications |
Brand | BIONOON |
Batch Grinding Capacity | 0.2~50ml |
Output Particle Size | ≤ 3μm |
Input Particle Size | 0.1-30mm |
Price Range | Negotiable |
Final Discharge Particle Size | 0.01-0.5mm |
Applicable Samples | Multiple sample types |
Instrument Type | Grinding Mill |
Origin Category | Domestic (Made in China) |
Application Fields | Environmental Protection, Food/Agricultural Products, Bio-industry, Pharmaceutical/Biopharmaceutical, Comprehensive |
Sample Processing Capacity | 576 samples |
Grinding Methods | Dry grinding, wet grinding, ultra-low temperature grinding |
Number of Grinding Platforms | ≥ 2 |
Gradient Programs | 4-stage gradient |
Number of Methods | Up to 50 method programs storable in software |
Time Setting | 0~9999 seconds |
Frequency Setting | 0~70Hz |
Power Supply | 220V |
I. Application Scenarios
1. Suitable for grinding and crushing various plant tissues, including roots, stems, leaves, flowers, fruits, seeds, etc.
2. Suitable for grinding and crushing various animal tissues, including brain, heart, lung, stomach, liver, thymus, kidney, intestine, lymph nodes, muscle, bone, etc.
3. Suitable for grinding and crushing samples such as bacteria, yeast, etc.
4. Suitable for grinding and crushing food, pharmaceuticals, and tablets for component analysis and testing.
5. Suitable for grinding and crushing samples such as oil shale, coke, coal, glass, minerals, ores, etc.
6. Suitable for grinding and crushing plastics and polymers, including PE, PS, textiles, resins, etc.
II. Product Introduction

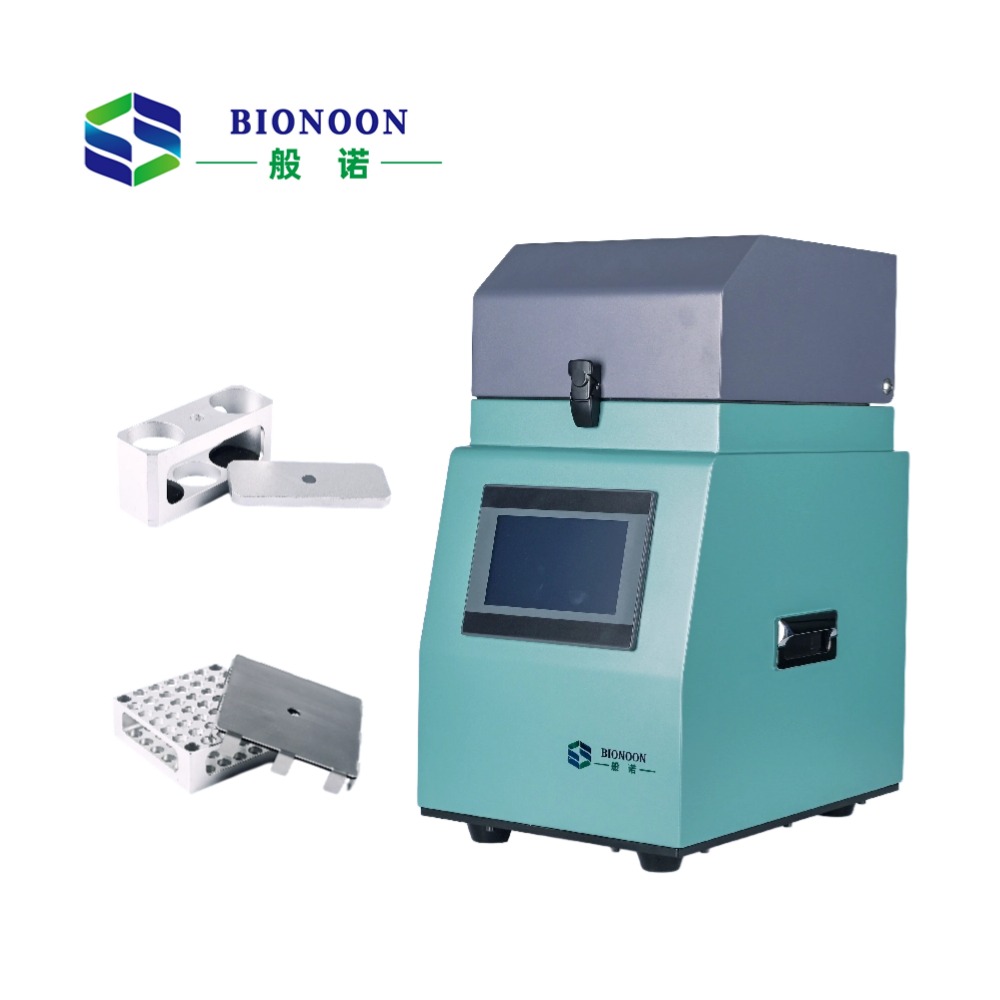

The main purpose of the BIONOON-576 Ultra-High-Throughput Grinding Mill is for crushing, mixing, homogenization, and cell disruption; it is used for sample pretreatment of biological samples and high-throughput automated rapid genome extraction.
III. Product Features
1. High Sample Processing Capacity with Excellent Results
It works efficiently and can grind up to 576 samples at one time, saving time and effort with small batch-to-batch and intra-batch differences. The extracted proteins have higher activity, and nucleic acid fragments are longer.
2. No Cross-Contamination
The grinding jar is fully enclosed during the crushing process; disposable centrifuge tubes and beads can be used. Samples are completely retained in the jar, avoiding cross-contamination between samples and external contamination.
3. Easy Operation
It has a humanized operation interface and a built-in program controller, which can set parameters such as grinding time and rotor vibration frequency (touch screen optional).
4. Convenient Low-Temperature Operation
When a low-temperature grinding environment is required, the adapter with samples can be immersed in liquid nitrogen for 1-2 minutes to cool. After taking it out, it can be quickly fixed on the main unit to start grinding—no re-freezing is needed, saving liquid nitrogen. (An air cooler is available as an optional accessory.)
5. Good Repeatability
Setting the same program for the same tissue sample ensures consistent grinding results. The working time is short, so the sample temperature does not rise.
IV. Technical Parameters
1. Sample Characteristics: Hard, medium-hard, soft, brittle, elastic, fibrous.
2. Operating Software: Microcomputer control with a 7-inch touch screen; displays the instrument’s current operating status with graphical display and control for intuitive operation.
3. Crushing Principle: Impact force and friction force generated by vertical and left-right radial vibration.
4. Oscillation Speed: Adjustable from 100 to 1800 rpm.
5. Rated Amplitude: 32mm.
6. Sample Positions (for Centrifuge Tubes): 20 positions for 50mL centrifuge tubes (simultaneous oscillation).
7. Oscillation Cycle Function: Continuous oscillation time (1~40min) and oscillation interval time (1~60min) can be set, with up to 20 cycles.
8. Scheduled Operation Function: Schedulable up to 12 hours in advance.
9. Gradient Programs: 4-stage gradient; a single program can set 4 operating steps, including oscillation frequency, grinding time, interval time, number of cycles, and scheduled time.
10. Total Sample Positions: 576 positions. Compatible with 6×96 deep-well plates, 3×96 standard plates (for 2mL flip-top tubes), 20×50mL grinding tubes, and 38×15mL grinding tubes (customizable for other specifications).
11. Number of Methods: Up to 50 method programs storable in software.
12. Control System: Equipped with start, pause, and stop buttons; has program memory function. It can stop, pause, and restart the unfinished previous program at any time during operation.
13. Visibility: Visual window made of glass; built-in lighting in the cavity for real-time observation of the sample processing process.
14. Safety Devices: Safety lock during operation for full protection; fastening device with automatic centering.
15. Time Setting: 0~9999 seconds.
16. Frequency Setting: 0~70Hz.
17. Power Supply: 220V.
