Category | Specifications |
Brand | BIONOON |
Condensing Temperature | ≤ -65℃ (no-load); Optional ≤ -90℃ (no-load) |
Water Catching Capacity | 5kg, 5kg/24h |
Vacuum Degree | ＜ 10 Pa |
Freeze-Drying Area | 0.12㎡ |
Price Range | Negotiable |
Instrument Type | Manifold Type |
Application Scope | Laboratory |
Origin Category | Domestic (Made in China) |
Application Fields | Environmental Protection, Food/Agricultural Products, Bio-industry, Agriculture/Forestry/Animal Husbandry/Fishery, Pharmaceutical/Biopharmaceutical |
Number of External Flasks | Standard 8 |
Condensate Capacity & Efficiency | 5kg, 5kg/24h |
Number of Sample Trays | Standard 3 |
Sample Tray Size | Φ220mm |
Sample Tray Spacing | 70mm |
Vacuum Pumping Rate | ≥ 120 L/min |
Overall Dimensions | 500×380×520mm (L×W×H) |
Defrost Mode | Automatic Defrosting |
Drainage Mode | Automatic Drainage |

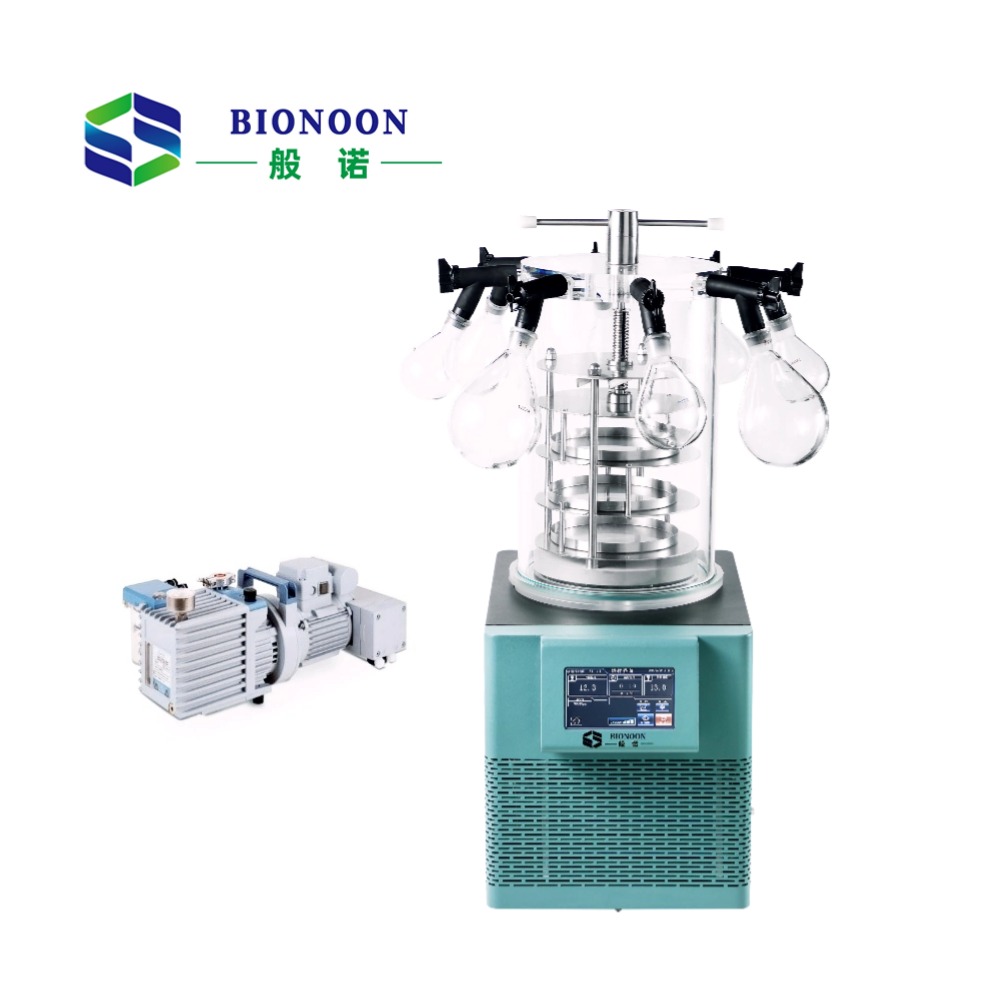

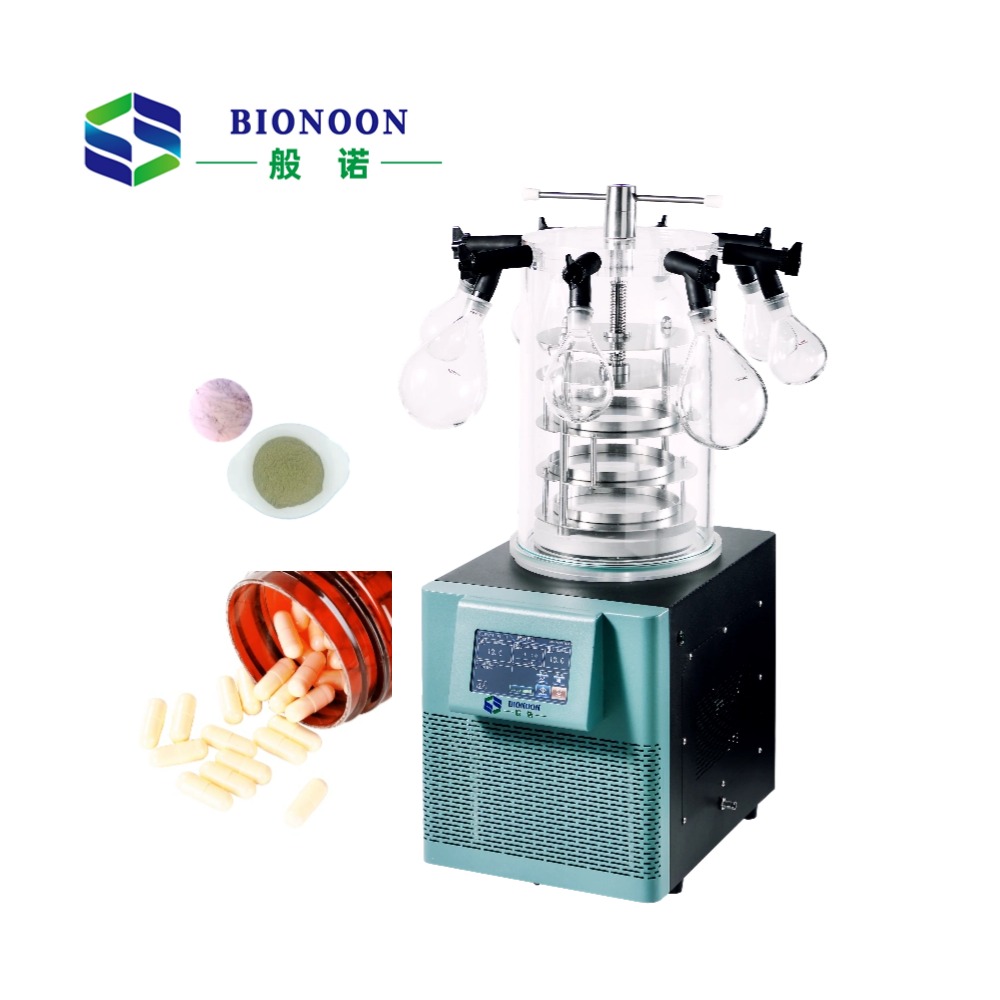

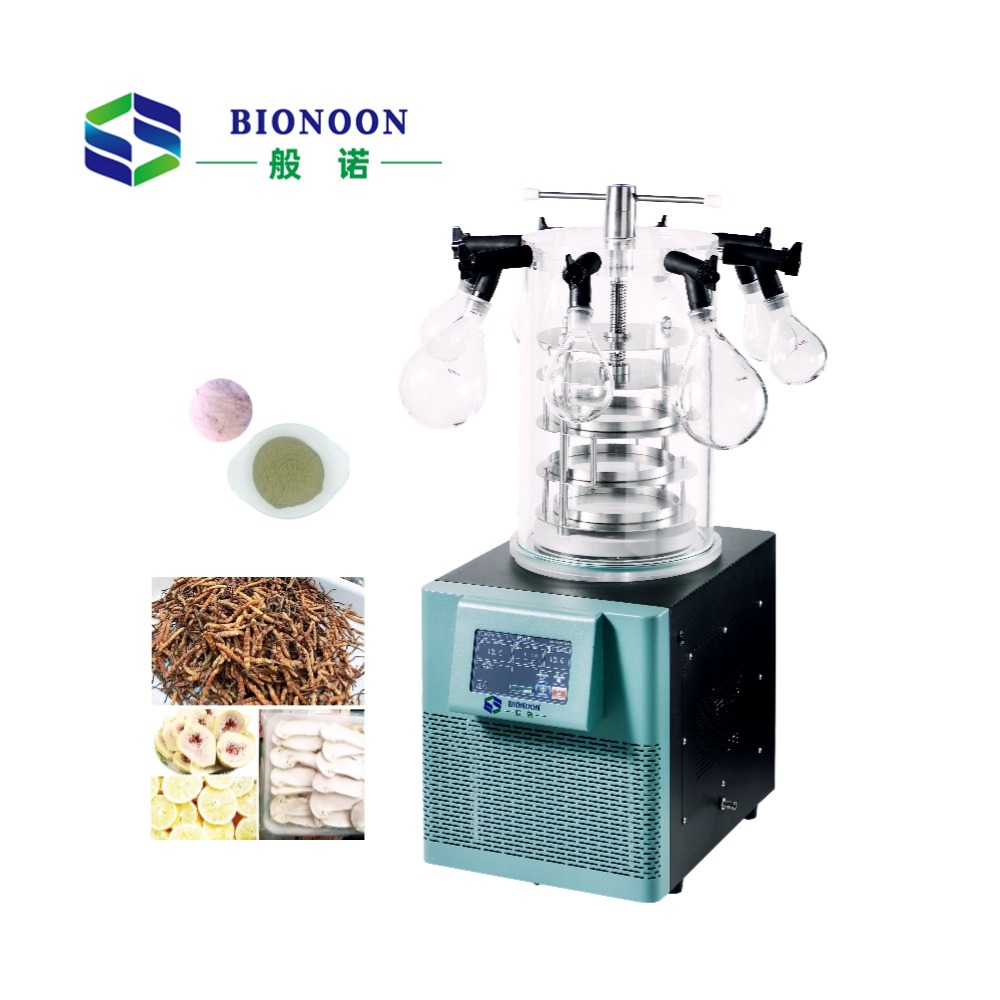

Product Introduction
Designed for laboratory use and small-scale production, this model meets routine freeze-drying needs. It preserves samples through low-temperature vacuum sublimation, ensuring minimal impact on biochemical properties.
Key features include:
Bulk material drying: Suitable for liquids, pastes, and solids.
Vial compatibility: Supports lyophilization of vials with floating stoppers, followed by automated stopper pressing to prevent contamination and moisture absorption.
External flask connection: Enables drying of materials frozen on flask walls via a detachable manifold system, allowing flask removal/installation without.
I. Working Principle
The drying principle of the Lyophilizer is based on the three-state phase change law of matter. At low temperatures, molecular motion slows, forming a solid state. In a vacuum environment, reduced external pressure allows water molecules to sublimate directly from solid to gas, achieving dehydration. This method preserves original nutrients and color while preventing oxidation of heat-sensitive materials.
II. Application Scope
Widely used in medicine, pharmaceuticals, biological research, chemical engineering, and food industries, freeze-dried products maintain long-term stability and fully recover their original biochemical properties upon rehydration.
III. Features
1. Automatic Control System
1. 7-inch touchscreen: Equipped with BIONOON's proprietary OS for intuitive operation.
2. One-touch automation: Start/stop, defrosting, and drainage with integrated safety protocols.
3. Power failure protection: Automatically vents vacuum to prevent oil backflow and sample contamination.
4. Vacuum release system: Imported pressure relief valve with filter compatibility ensures sample purity.
5. Cold trap protection: Configurable thresholds extend vacuum system lifespan.
6. Data security: Standardized access controls safeguard experimental data.
7. Intelligent logging: Historical curves and records exportable via USB/Wi-Fi.
8. Maintenance alerts: Reminders for pump oil changes, radiator cleaning, and voltage monitoring.
9. PLC control: Customizable system with software upgradability.
10. Remote monitoring (optional): Real-time IoT-enabled control via mobile app.
11. Batch management (optional): Cloud storage for multi-unit data synchronization.
12. End-point detection (optional): Automatically identifies completion of lyophilization.
2. Refrigerating System
1. 304 stainless steel condenser: Accurate temperature display with enhanced water-trapping efficiency.
2. Hybrid refrigeration: Low-temperature stability via dual-compressor technology.
3. Premium compressor: Imported components ensure reliable performance.
3. Vacuum System
1. 30cm integrated cold trap: Heavy-duty design with superior sealing.
2. High-precision sensor: Real-time vacuum monitoring.
3. Flexible compatibility: Supports domestic/imported pumps for diverse applications.
Ⅳ. Technical Parameters
1. Freeze-drying area: 0.12㎡
2. Sample tray size: Φ220mm (3 trays standard)
3. External flasks: 8 (standard)
4. Cold trap temp: ≤-65℃ (no-load); optional ≤-90℃
5. Condensate capacity: 5kg/24h
6. Vacuum speed: ≥120 L/min
7. Ultimate vacuum: ＜10 Pa
8. Power: 900W
9. Dimensions: 500×380×520mm (L×W×H)
10. Defrost/drainage: Fully automated
V. Configuration List
1. Freeze-dryer main unit ×1
2. Vacuum pump ×1
3. Stopper press drying rack ×1
4. Manifold stopper press chamber ×1
5. Φ220mm sample trays ×3
6. Pre-freezing rack ×1
7. Round-bottom flasks ×8
8. Rubber valves ×8
9. User manual ×1
10. Warranty card ×1
11. Certificate of conformity ×1
BIONOON-16D combines advanced technology with user-centric design, offering reliable and versatile freeze-drying solutions for modern laboratories.
