Category | Specifications |
Brand | Bionoon |
Temperature Control Precision | ±1℃ |
Temperature Range | -10℃ ~ 100℃ |
Price Range | Negotiable |
Instrument Type | Vacuum Freezing Centrifugal Concentrator, Main unit |
Origin Category | Domestic (Made in China) |
Application Fields | Food/Agricultural Products, Bio-industry, Agriculture/Forestry/Animal Husbandry/Fishery, Public Security/Judiciary, Pharmaceutical/Biopharmaceutical |
Ultimate Vacuum Value | ≤10 Pa |
Rotational Speed Range | 0 ~ 2000 rpm |
Centrifugal Force | 590 × g |
Timing Range | 0 ~ 99h59min |
Noise Level | ≤60 dB(A) |
Power Supply | 220V |
Total Power | 900W |
Centrifugal Imaging | Optional |
Sample Chamber Cooling Function | Available |
Sample Chamber Temperature | -10℃ ~ 100℃ |
ⅠProduct Description

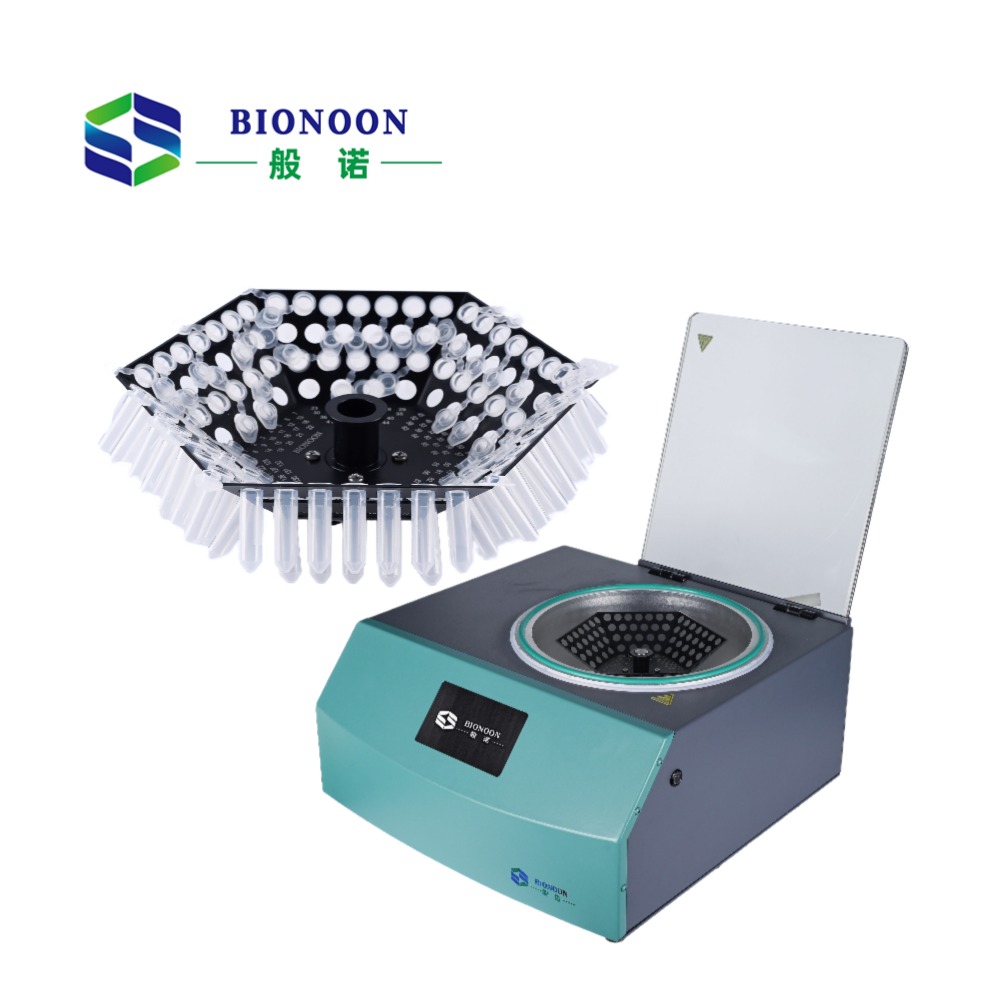

The BIONOON VAC-R Vacuum Freezing Centrifugal Concentrator is engineered for heat-sensitive sample concentration, supporting both low-temperature (-10℃) and room-temperature applications. It accommodates various tube sizes (1.5ml~250ml) and 96-well plates, with a maximum capacity of 184×1.5/2ml, 132×1.5/2ml, 72×5ml, 24×15ml, 12×50ml, 8×100ml, or 2×96-well plates. BIONOON VAC-R is the main unit. The modular design allows flexible assembly of the centrifugal chamber, vacuum pump, and optional cold trap.
Ⅱ Technical Advantages
1. High Throughput: Processes dozens to hundreds of samples simultaneously with zero cross-contamination.
2. Low-Temperature Concentration: Preserves heat-sensitive biological samples (e.g., RNA/DNA, proteins) by operating at -10℃ ~ 100℃.
3. Minimal Sample Loss: No foam formation ensures high recovery rates.
4. User-Friendly Operation: One-touch start simplifies workflow while preventing errors.
Ⅲ Application Scope
1. Oligomers and peptides
2. Synthesis and separation of organic substrates
3. RNA/DNA research
4. Clinical diagnostics
5. ADMET (Drug Metabolism Research)
6. Protein crystallography
7. Pharmaceutical analysis and medicinal chemistry
8. General laboratory concentration
Ⅳ Working Principle
When pressure decreases, the boiling point of the solvent decreases accordingly. At a certain pressure level, the solvent can boil and evaporate at low temperatures. High-speed centrifugal rotation technology prevents sample evaporation and cross-contamination by keeping samples securely within tubes.
Ⅴ Product Features
1. Wide Temperature Control: -10℃ ~ 100℃ (0.1℃ increments) for heat-sensitive sample protection.
2. Modular Design: Independent components,Host unit, optional vacuum pump and cold trap
3. 7" Touchscreen: Real-time display of operational parameters (speed, temperature, timer).
4. One-Click Operation: Fully automated workflow with high efficiency.
5. Vacuum Delay Function: Activates vacuum after reaching set speed to prevent splashing.
6. Maintenance-Free Motor: Low-noise electromagnetic drive system requires no maintenance.
7. Quick-Change Rotor: Tool-free rotor replacement with seamless construction.
8. Corrosion-Resistant Chamber: One-piece aluminum alloy design with R-angle arcs for easy cleaning.
9. Electronic Pressure Sensor: Precise vacuum control with automatic release for safety.
10. Transparent Glass Lid: Enables visual monitoring of evaporation progress.
Ⅵ Technical Parameters
Parameter | Specifications | Parameter | Specifications |
Rotational Speed Range | 0 rpm ~ 2000 rpm | Temperature Control Precision | ±1℃ |
Centrifugal Force | 590 × g | Ultimate Vacuum Value | ≤10 Pa |
Timing Range | 0 ~ 99h59min | Noise Level | ≤60 dB(A) |
Sample Chamber Pre-Cooling | Available | Power Supply | AC 220V 50Hz/60Hz 10A |
Centrifugal Imaging | Optional | Dimensions (L×D×H) | 720 × 620 × 400 mm |
Temperature Control Range | -10℃ ~ 100℃ | N.Weight | 60 kg |
