Category | Specifications |
Brand | Bionoon |
Temperature Control Precision | ±1℃ |
Temperature Range | Room Temperature ~ 80℃ |
Price Range | Negotiable |
Instrument Type | Vacuum Centrifugal Concentrator，Room temperature type, Medium-throughput . |
Origin Category | Domestic (Made in China) |
Application Fields | Food/Agricultural Products, Bio-industry, Agriculture/Forestry/Animal Husbandry/Fishery, Public Security/Judiciary, Pharmaceutical/Biopharmaceutical |
Ultimate Vacuum Value | ＜ 10 Pa |
Rotational Speed Range | 0 ~ 1500 rpm |
Centrifugal Force | 590 × g |
Timing Range | 0 ~ 99h59min |
Noise Level | ≤ 50 dB(A) |
Power Supply | 220V |
Adaptable rotor | 42*1.5/2ml；12*15ml；6*50ml. |
Product Description

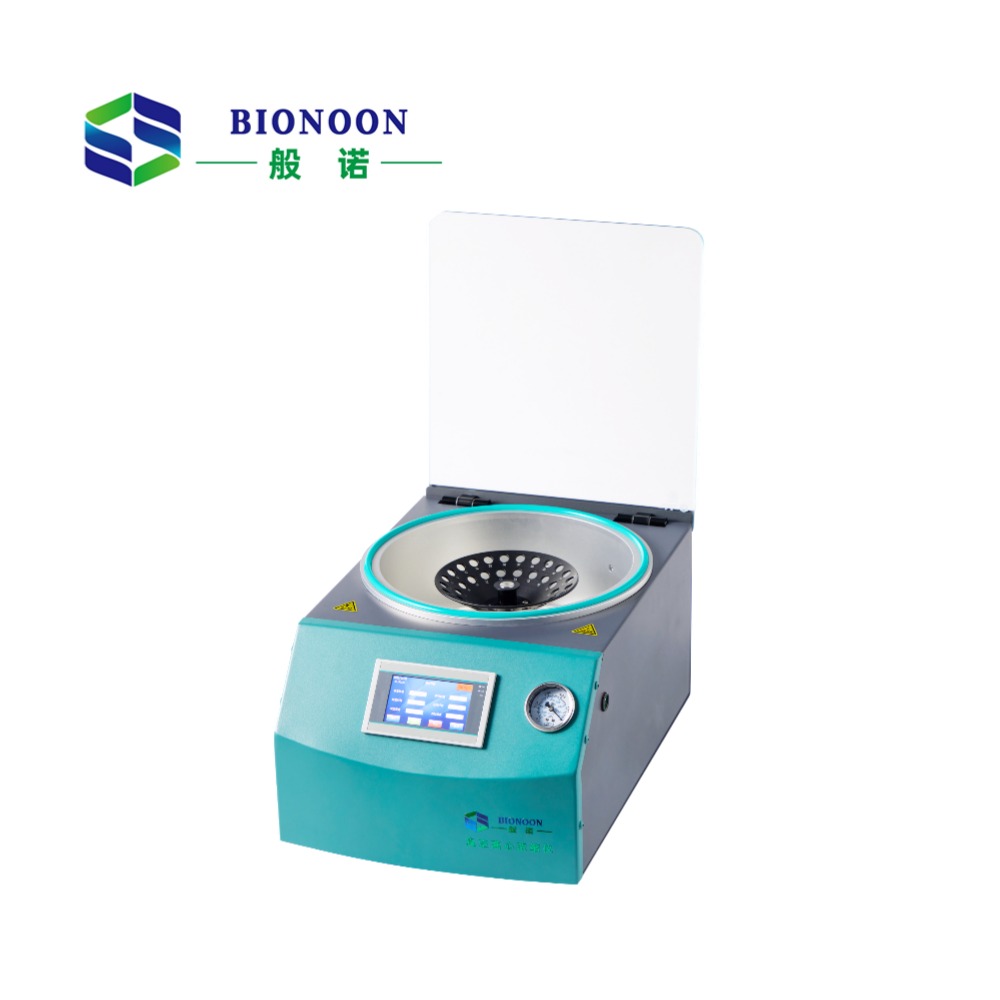

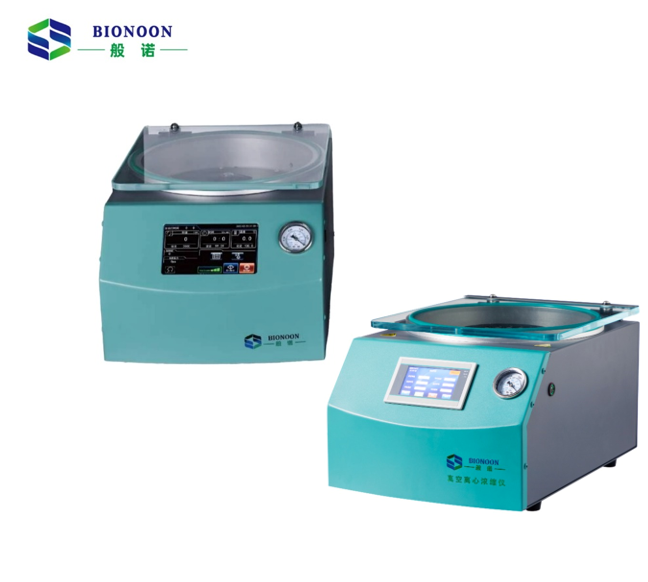

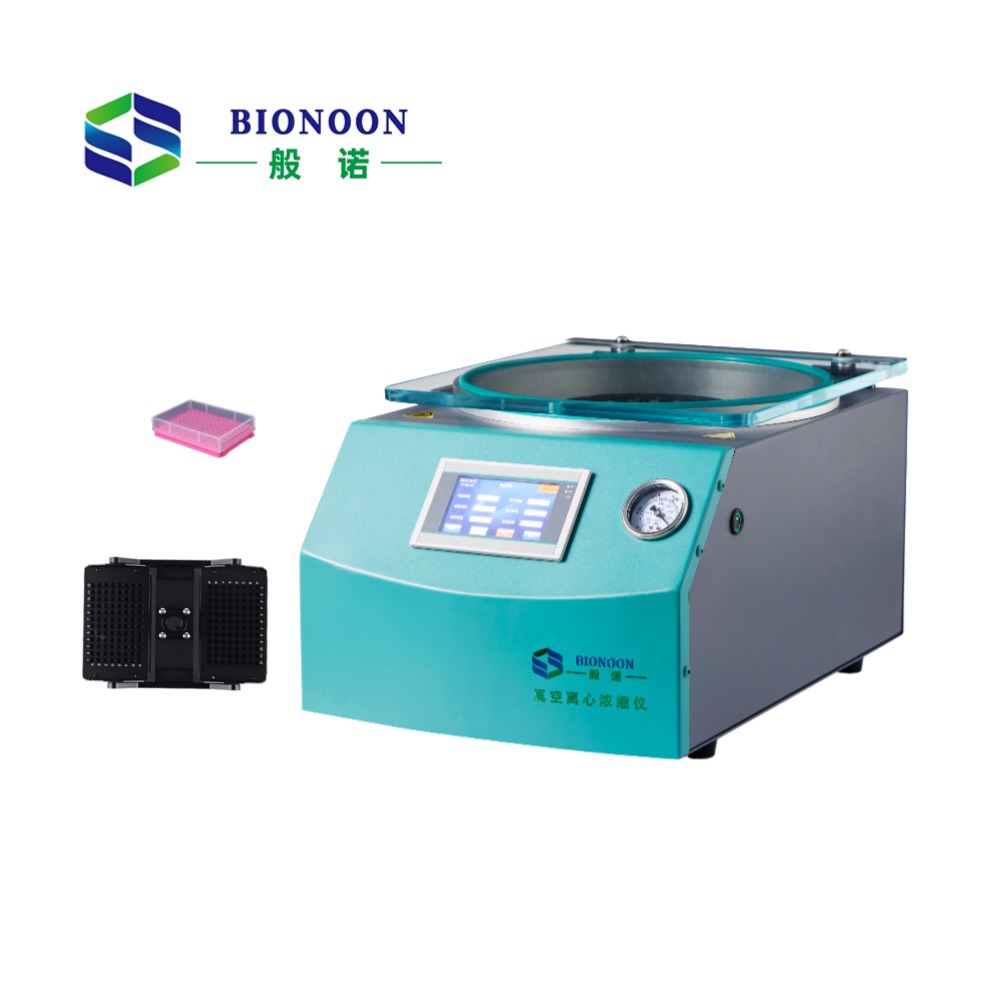

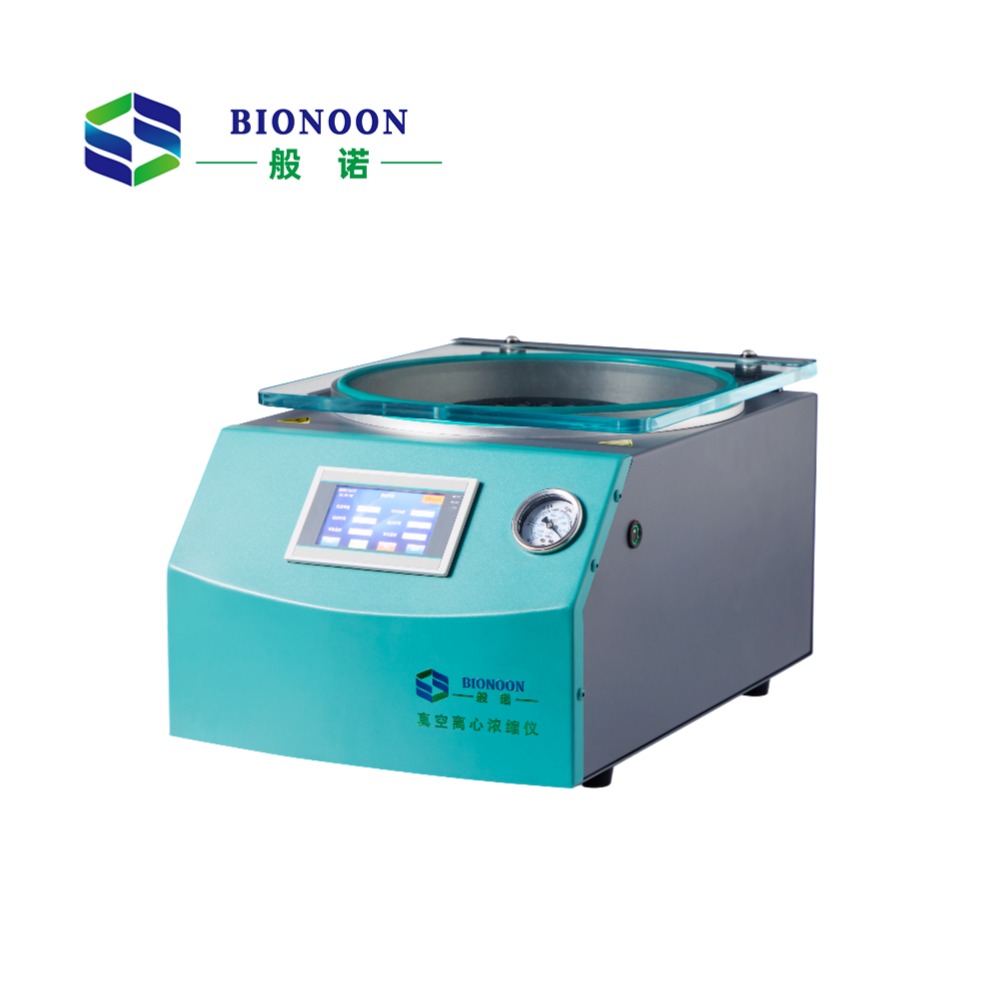

The BIONOON SVAC Room-Temperature Type Vacuum Centrifugal Concentrator from Shanghai Bionoon is designed for evaporating small-volume samples with medium boiling points. It efficiently and safely removes water and organic solvents, compatible with EP tubes, glass test tubes, centrifuge tubes, chromatographic vials, centrifuge bottles, and 96-well plates.
I. Working Principle
When pressure decreases, the boiling point of the solvent decreases accordingly. When the pressure drops to a certain level, the solvent can boil and evaporate at relatively low temperatures. To prevent sample evaporation and cross-contamination, high-speed centrifugal rotation technology is employed to ensure samples remain within the tubes without splashing out.
II. Technical Advantages
1. High Throughput: Simultaneously processes dozens to hundreds of samples with zero cross-contamination.
2. Low-Temperature Concentration: Minimizes sample loss, denaturation, activity degradation, and oxidation.
3. Minimal Sample Loss: No foam formation ensures high recovery rates.
4. User-Friendly Operation: One-touch start simplifies workflow while preventing errors.
III. Application Scope
1. Oligomers and peptides
2. Synthesis and separation of organic substrates
3. RNA/DNA research
4. Clinical diagnostics
5. ADMET (Drug Metabolism Research)
6. Protein crystallography
7. Pharmaceutical analysis and medicinal chemistry
8. General laboratory concentration
IV. Product Features
1. Temperature Control: Supports room-temperature concentration (0.1℃ increments from room temperature to 80℃).

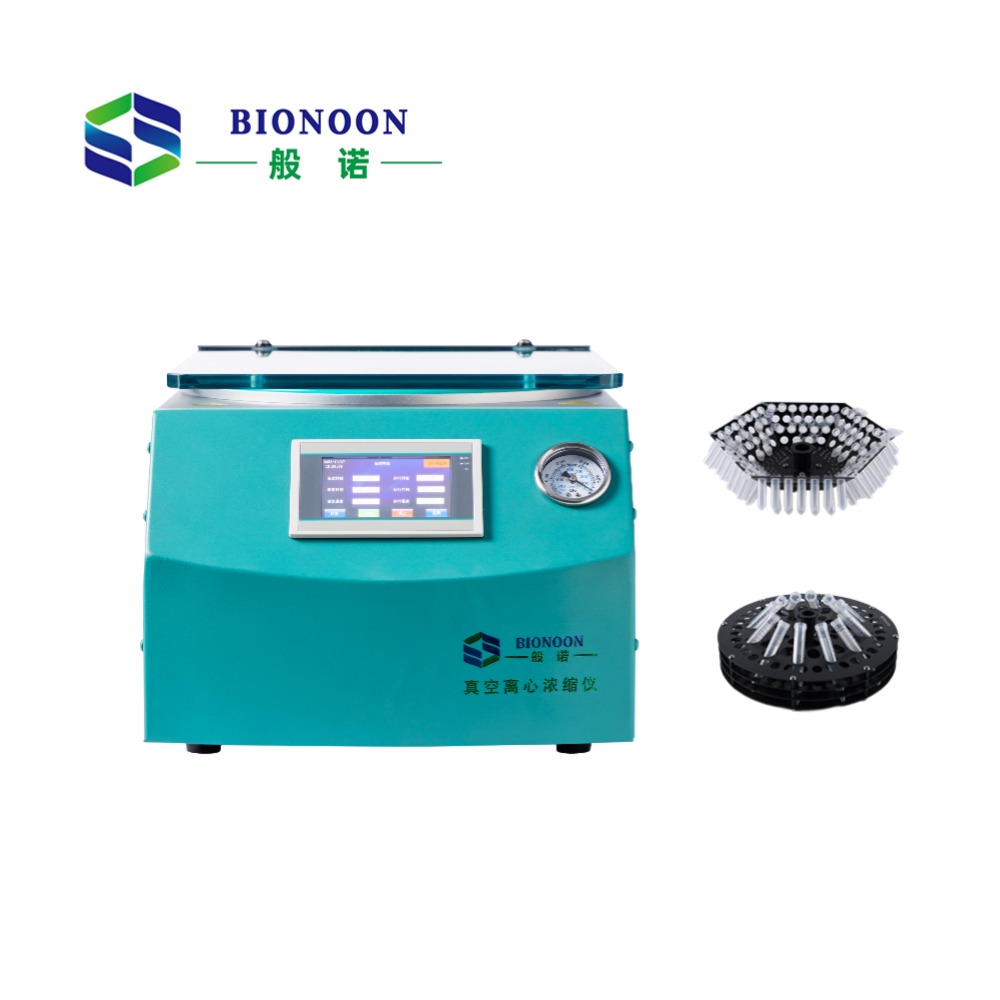

2. Medium-throughput : Suitable for laboratories with smaller sample volumes. Chamber can adapt rotor: 42*1.5/2ml；12*15ml；6*50ml.
3. 4.3" Touchscreen: Displays real-time parameters including speed, temperature, and timer.
4. One-Click Operation: Automates the entire process for high efficiency.
5. Vacuum Delay Function: Activates vacuum after reaching set speed to prevent sample splashing.
6. Maintenance-Free Motor: Low-noise electromagnetic drive system requires no maintenance.
7. Perimeter Heating: Imported heating tape with preheating function (up to 80℃) ensures safe sample concentration.

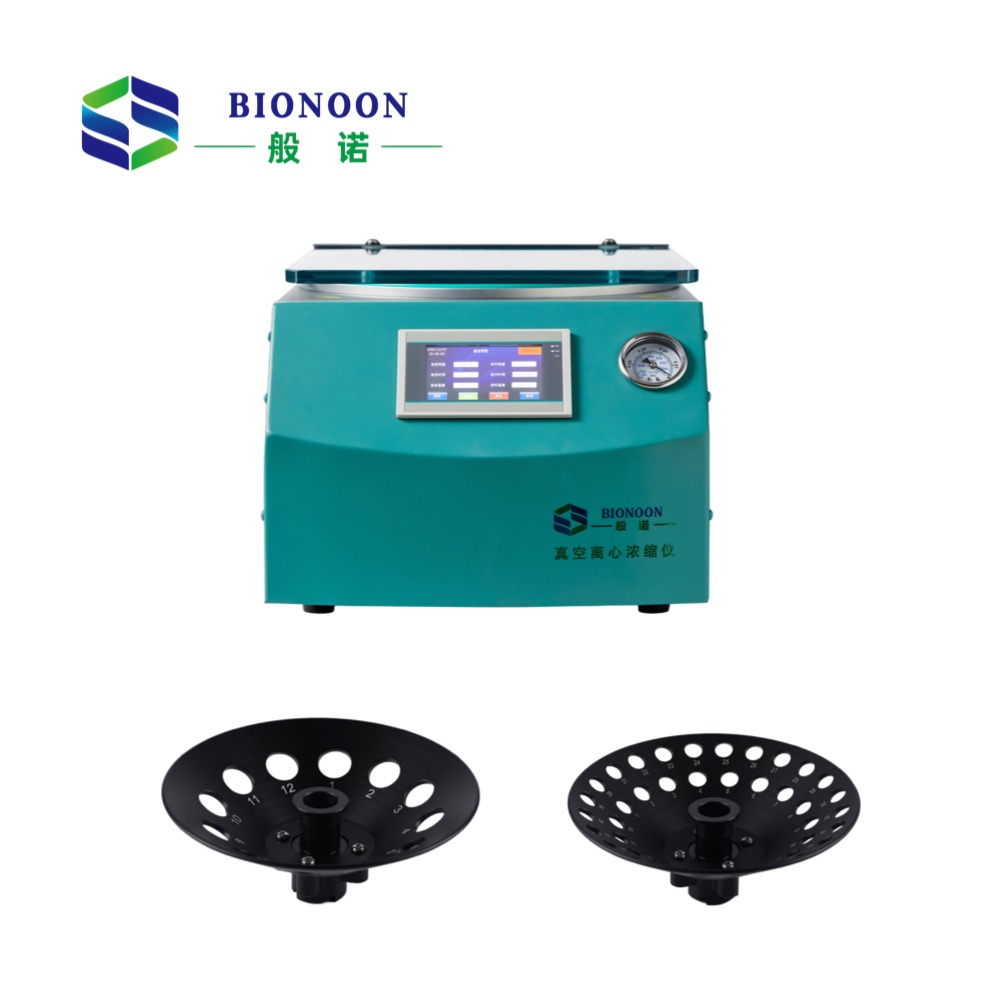

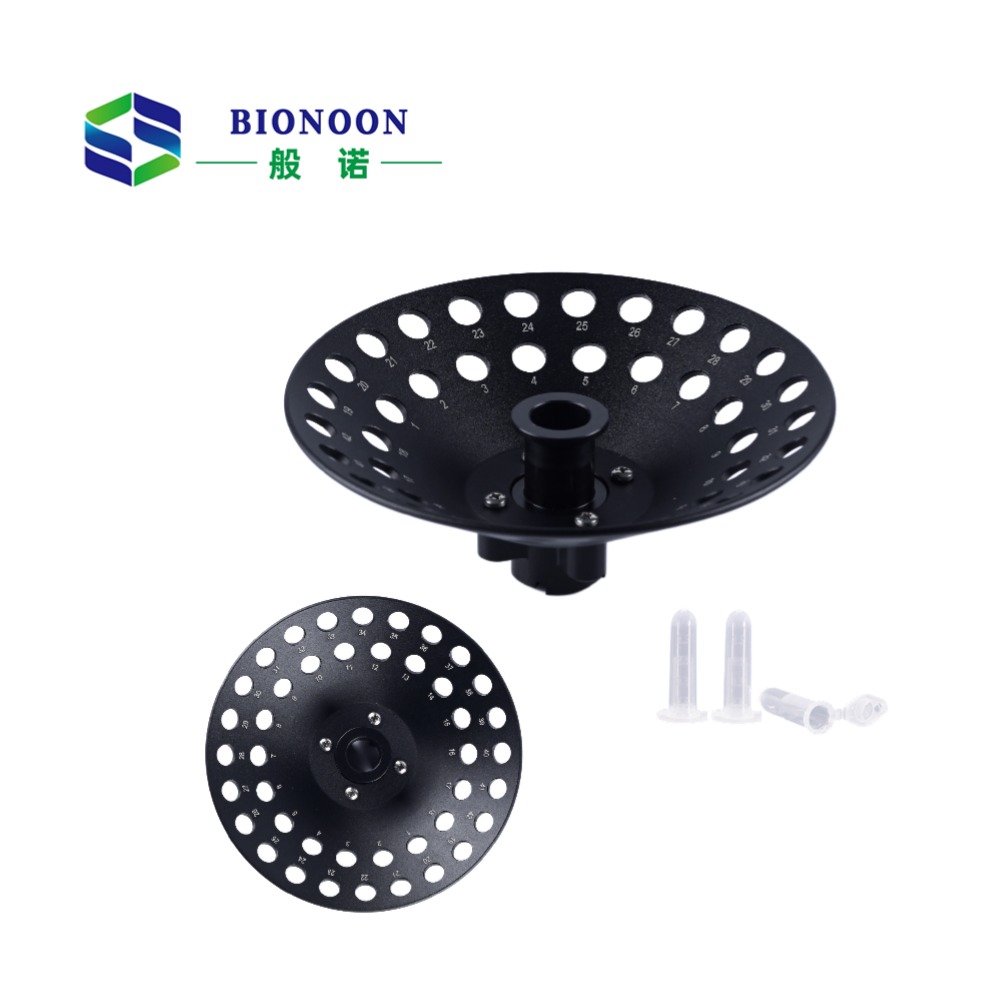

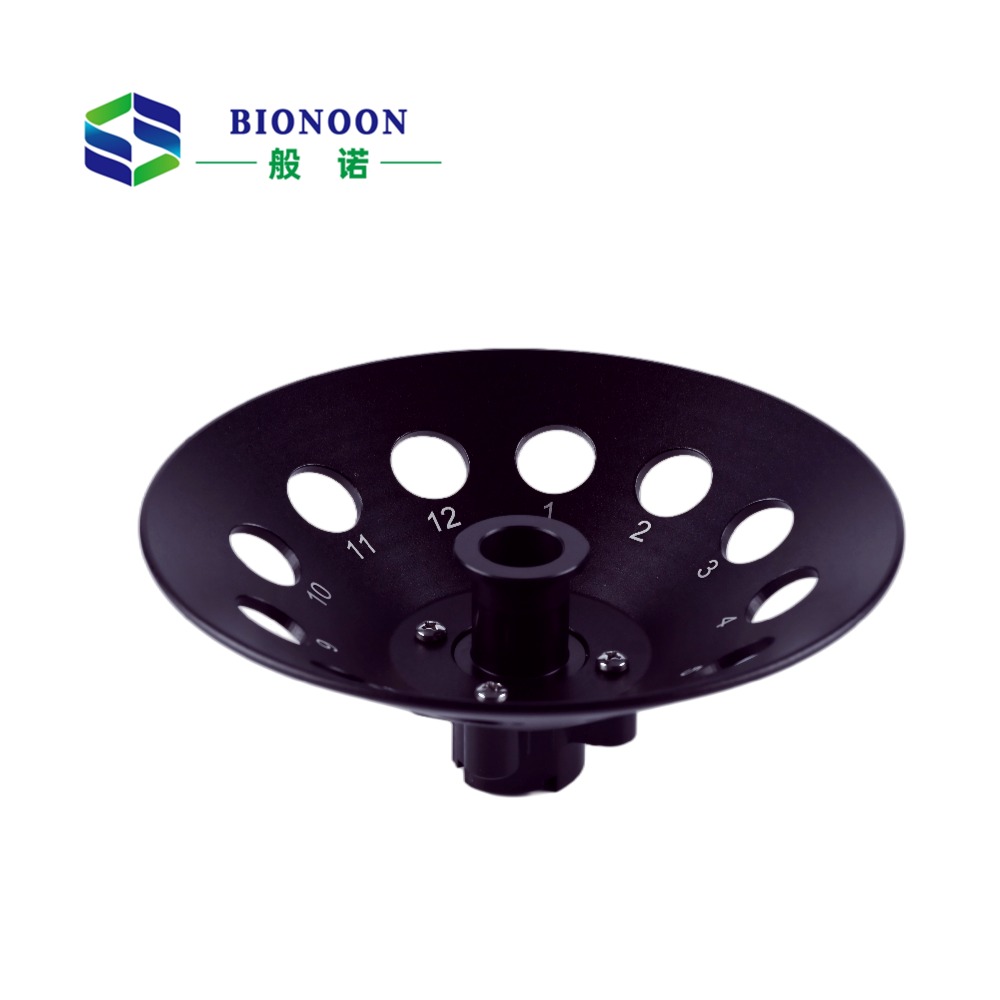

8. Quick-Change Rotor: Tool-free rotor replacement with seamless construction.
9. Corrosion-Resistant Chamber: One-piece aluminum alloy design with R-angle arcs for easy cleaning.
10. Automatic Vacuum Release: Pressure relief valve ensures safe operation.
11. Transparent Glass Lid: Enables visual monitoring of evaporation progress.
12. A traditional pointer pressure gauge is used to observe the vacuum level.
V. Technical Parameters
Parameter | Specifications | Parameter | Specifications |
Rotational Speed Range | 0 rpm ~ 1500 rpm | Temperature Control Precision | ±1℃ |
Vacuum Control Function | Not available | Pointer display | ＜-0.1mpa |
Timing Range | 0 ~ 99h59min | Noise Level | ≤ 50 dB(A) |
Touch screen | 4.5 inches | Total Power | 600 W |
Sample Chamber Pre-heating | Available | Power Supply | AC 220V 50Hz/60Hz 10A |
External Dimensions | 420 × 350 × 240 mm | Weight | 30 kg |
