Category | Specifications |
Brand | Bionoon |
Temperature Control Precision | ±1℃ |
Temperature Range | Room Temperature ~ 100℃ |
Price Range | Negotiable |
Instrument Type | Vacuum Centrifugal Concentrator,Room temperature type,Main unit. |
Origin Category | Domestic (Made in China) |
Application Fields | Food/Agricultural Products, Bio-industry, Agriculture/Forestry/Animal Husbandry/Fishery, Public Security/Judiciary, Pharmaceutical/Biopharmaceutical |
Ultimate Vacuum Value | ＜ 10 Pa |
Rotational Speed Range | 0 ~ 2000 rpm |
Centrifugal Force | 590 × g |
Timing Range | 0 ~ 99h59min |
Noise Level | ≤ 50 dB(A) |
Power Supply | 220V |
Product Description

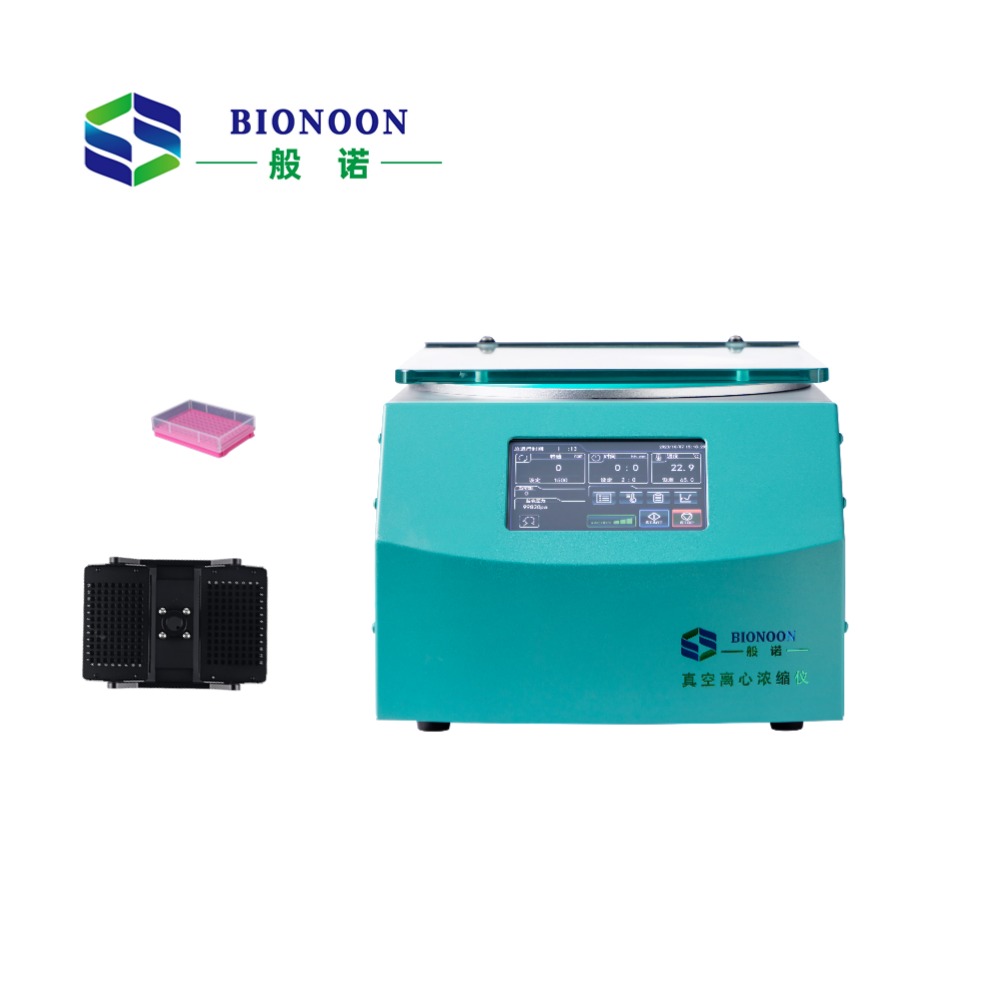

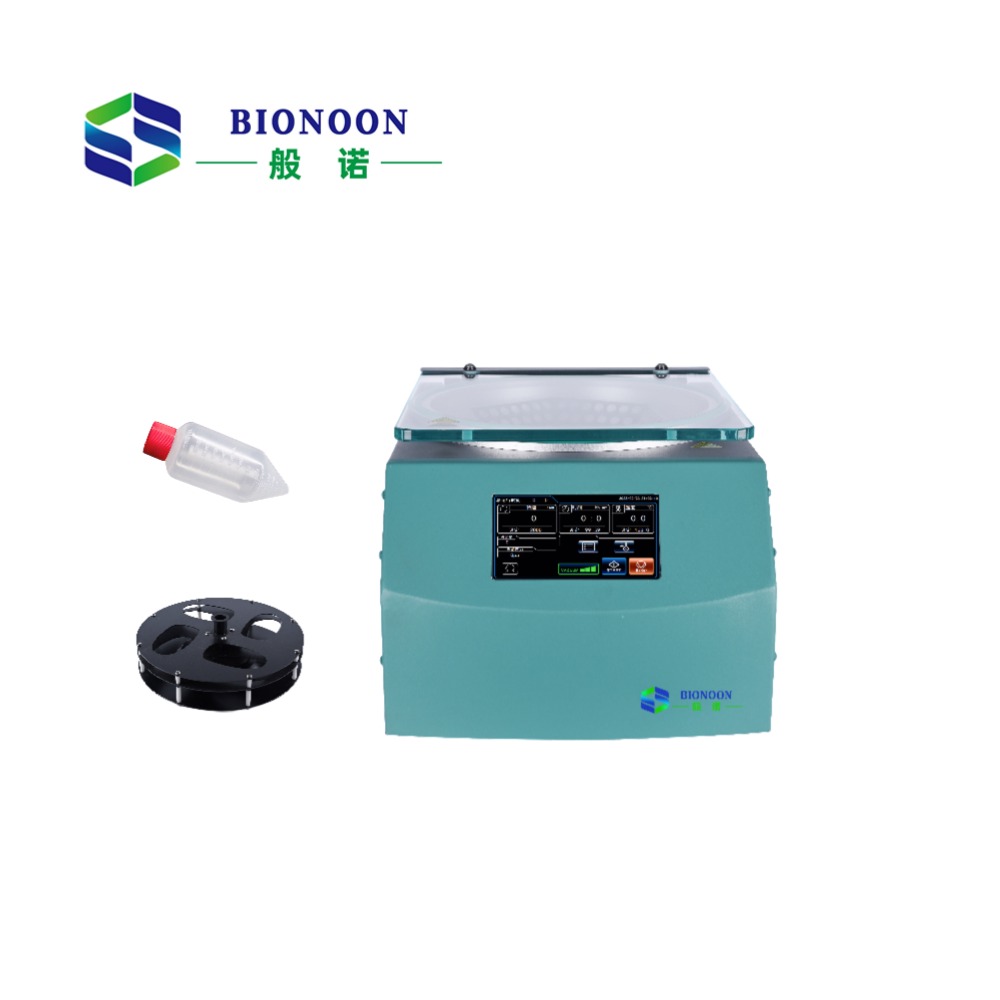

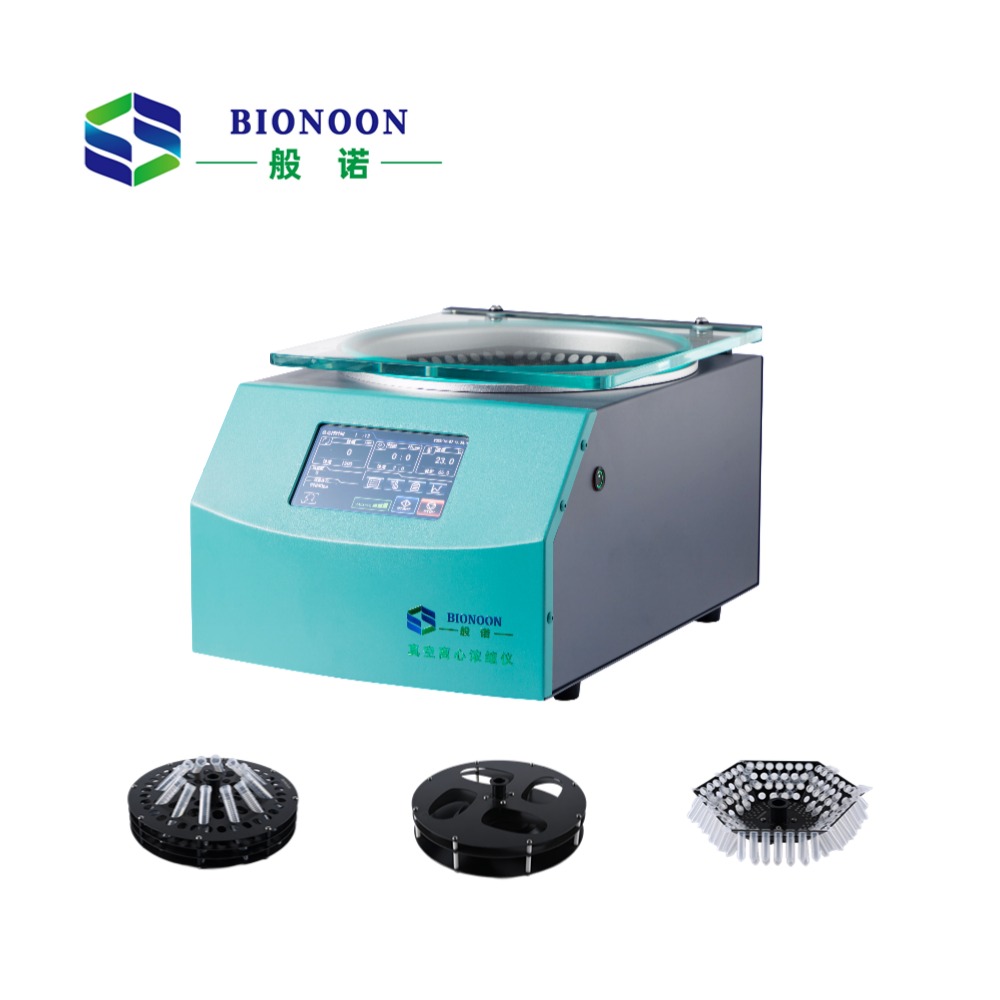

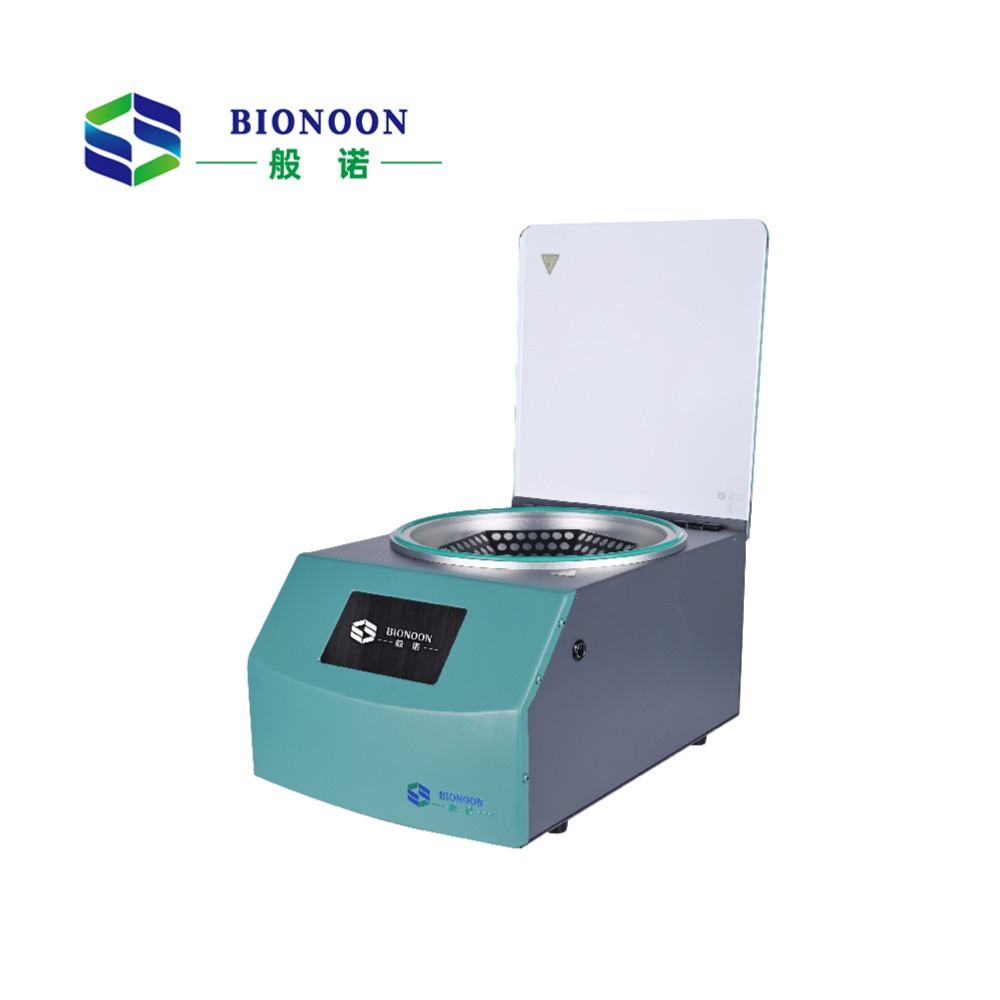

The BIONOON Concentrator Plus Room-Temperature Type Vacuum Centrifugal Concentrator from Shanghai Bionoon is suitable for evaporating solvent samples with small volumes and medium boiling points. It has the function of quickly and safely evaporating water and organic solvents from samples, and can be used with EP tubes, glass test tubes, various centrifuge tubes, chromatographic vials, centrifuge bottles, or 96-well plates.
Ⅰ Working Principle
When pressure decreases, the boiling point of the solvent also decreases accordingly. When the pressure drops to a certain level, the solvent can boil and evaporate under relatively low temperature conditions. To prevent sample evaporation and cross-contamination, high-speed centrifugal rotation technology is adopted to ensure that samples remain in the sample tubes without splashing out.
Ⅱ Technical Advantages
1. High Throughput: Capable of processing dozens to hundreds of samples simultaneously, with no cross-contamination.
2. Low-Temperature Concentration: Prevents sample loss, denaturation, decreased activity, and oxidation.
3. Minimal Sample Loss: No foam formation in samples, resulting in low loss and high recovery rate.
4. Safe & Simple Operation: One-key operation, safe and convenient, avoiding misoperation.
Ⅲ Application Scope
1. Oligomers and peptides
2. Synthesis and separation of organic substrates
3. RNA/DNA research
4. Clinical diagnostics
5. ADMET (Drug Metabolism Research)
6. Protein crystallography
7. Pharmaceutical analysis and medicinal chemistry
8. General laboratory concentration
Ⅳ Product Features
1. The Bionoon Concentrator Plus Room-Temperature Type Vacuum Centrifugal Concentrator supports room-temperature concentration; temperature range: Room temperature ~ 100℃, adjustable in 0.1℃ increments.
2. Chemical corrosion-resistant centrifugal chamber: Acid and alkali resistant, integrally formed, with R-angle arc design for easy cleaning.
3. One-key start function: The entire process is completed in one go with high automation.
4. Built-in vacuum delay function: Effectively protects samples and prevents splashing.
5. AC inverter maintenance-free induction motor: Equipped with electromagnetic drive centrifugal system, low noise, and maintenance-free.
6. Five-stage temperature control design for the sample chamber: Effectively protects sample safety.
7. Built-in 32 different programs: Can be called arbitrarily according to different samples.
8. 7-inch touch screen display: Shows equipment operation status, program group number, set and actual rotational speed, set and actual temperature, set time and running time.
9. Centrifuge chamber compatible with the following rotor capacities: 184 × 1.5 ml/2 ml; 132 × 1.5 ml/2 ml; 72 × 5 ml; 24 × 15 ml; 12 × 50 ml; 8 × 100 ml; 4 × 250 ml; 2 × 96-well plates.
10.High-transparency tempered glass lid for easy observation of evaporation.
11.The original imported pressure reducing valve features automatic vacuum release, ensuring simple and safe operation with automatic on/off functionality.
Ⅴ Technical Parameters
Parameter | Specifications | Parameter | Specifications |
Rotational Speed Range | 0 rpm ~ 2000 rpm | Temperature Control Range | Room Temperature ~ 100℃ |
Centrifugal Force | 590 × g | Ultimate Vacuum Value | ≤ 10 Pa |
Timing Range | 0 ~ 99h59min | Noise Level | ≤ 50 dB(A) |
Vacuum Control Function | Available | Total Power | 600 W |
Sample Chamber Pre-heating Function | Available | Power Supply | AC 220V 50Hz/60Hz 10A |
Centrifugal Imaging | Optional | Host Dimensions (L×D×H) | 520 × 350 × 240 mm |
Temperature Control Precision | ±1℃ | Weight | 30 kg |
