Category | Specifications |
Brand | Bionoon |
Temperature Control Precision | ±1℃ |
Temperature Range | Room Temperature ~ 100℃ |
Price Range | Negotiable |
Instrument Type | Vacuum Centrifugal Concentrator,suit,including main unit(pointer pressure)+cold trap+vacuum oil pump |
Origin Category | Domestic (Made in China) |
Application Fields | Food/Agricultural Products, Bio-industry, Agriculture/Forestry/Animal Husbandry/Fishery, Public Security/Judiciary, Pharmaceutical/Biopharmaceutical |
Gauge Display | ＜ -0.1 MPa |
Rotational Speed Range | 0 ~ 2000 rpm |
Centrifugal Force | 590 × g |
Timing Range | 0 ~ 99h59min |
Noise Level | ≤ 50 dB(A) |
Power Supply | 220V |
Product Description

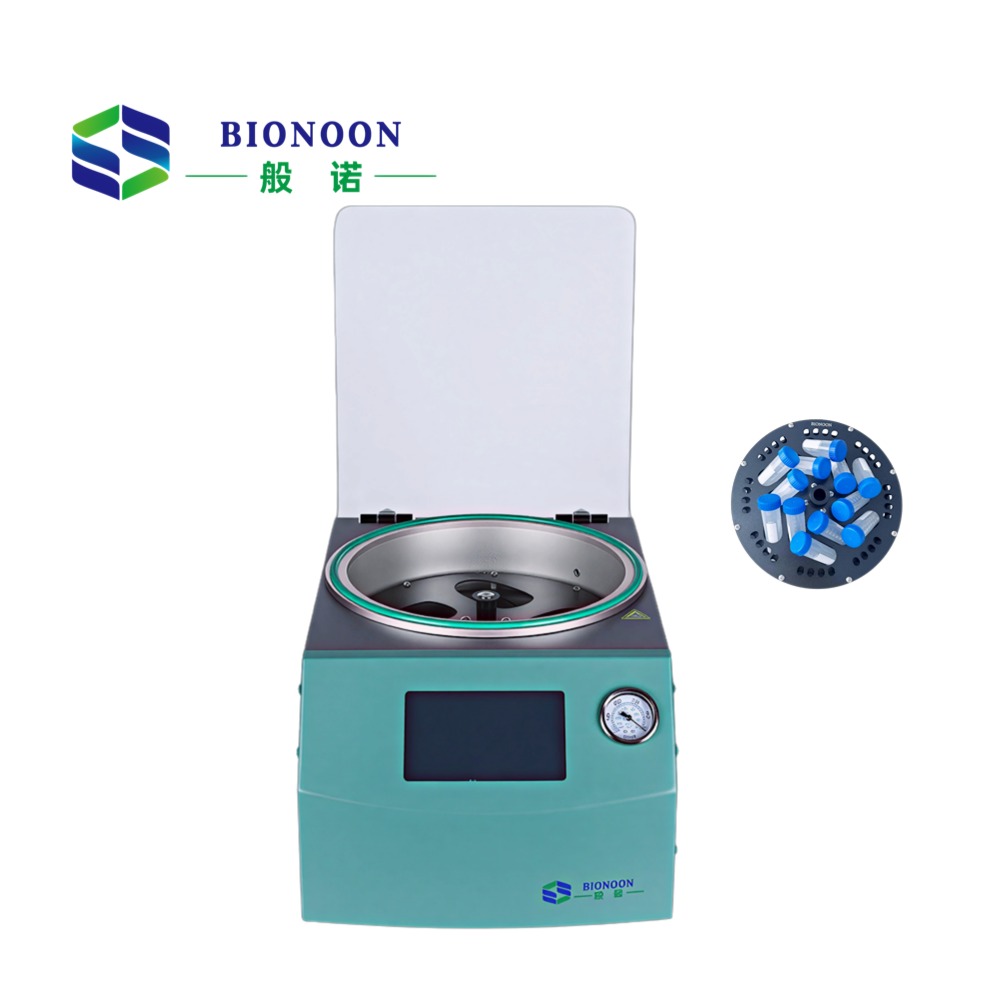

The BIONOON VAC-P Bionoon Vacuum Concentrator consists of a concentrator main unit, a vacuum pump, and a 3L low-temperature cold trap. It is suitable for research institutions and industrial enterprises that require large sample processing volumes, long-term equipment operation, and higher concentration efficiency. It can be used as a production instrument and is compatible with EP tubes, glass test tubes, various centrifuge tubes, chromatographic vials, centrifuge bottles, or 96-well plates of different volumes (ranging from 1.5 mL to 250 mL). It features the function of quickly and safely evaporating water and organic solvents from samples.
Ⅰ Working Principle
When pressure decreases, the boiling point of the solvent also decreases accordingly. When the pressure drops to a certain level, the solvent can boil and evaporate under relatively low temperature conditions. To prevent sample evaporation and cross-contamination, high-speed centrifugal rotation technology is adopted to ensure that samples remain in the sample tubes without splashing out.
Ⅱ Technical Advantages
1. High Throughput: Capable of processing dozens to hundreds of samples simultaneously, with no cross-contamination.
2. Low-Temperature Concentration: Prevents sample loss, denaturation, decreased activity, and oxidation.
3. Minimal Sample Loss: No foam formation in samples, resulting in low loss and high recovery rate.
4. Safe & Simple Operation: One-key operation, safe and convenient, avoiding misoperation.
Ⅲ Application Scope
1. Oligomers and peptides
2. Synthesis and separation of organic substrates
3. RNA/DNA research
4. Clinical diagnostics
5. ADMET (Drug Metabolism Research)
6. Protein crystallography
7. Pharmaceutical analysis and medicinal chemistry
8. General laboratory concentration
Ⅳ Product Features
1. Supports room-temperature concentration; temperature range: Room temperature ~ 100℃, adjustable in 0.1℃ increments.
2. Chemical corrosion-resistant centrifugal chamber: Acid and alkali resistant, integrally formed, with R-angle arc design for easy cleaning.
3. Automatic vacuum release: Simple and safe to operate, with automatic on/off function.
4. Modular design: The centrifugal chamber, vacuum chamber, vacuum pump, and cold trap are all independent units, allowing free assembly.
5. AC inverter maintenance-free induction motor: Equipped with electromagnetic drive centrifugal system, low noise, and maintenance-free.
6. Built-in vacuum delay function: Effectively protects samples and prevents splashing.
7. Built-in 32 different programs: Can be called arbitrarily according to different samples.

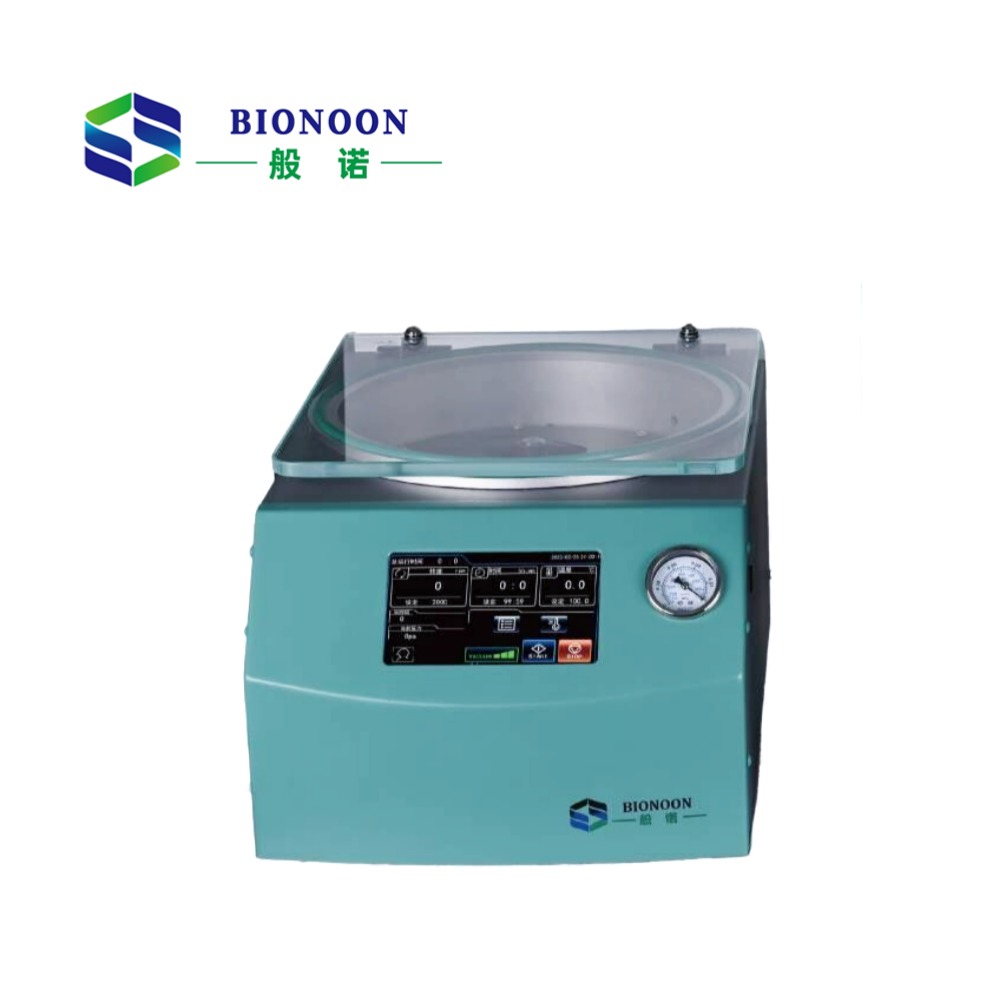

8. 7-inch touch screen display: Shows equipment operation status, program group number, set and actual rotational speed, set and actual temperature, set time and running time.
9. The air inlet is equipped with a HEPA high-efficiency air filter (capable of nitrogen filling); automatic vacuum release after power failure to protect samples.
10.One-button start function makes the whole process is completed in one go and with a high degree of automation.
11.Quick-insert rotor design, can quickly change different rotors, rotors are formed without solder joints.
12.Compatible rotor capacity: 184*1.5ml/2ml; 132*1.5/2ml; 72*5ml; 24*15ml; 12*50ml; 8*100ml; 4*250ml, 2* 96-well plate.
13.High penetration tempered glass cover, easy to observe the evaporation situation.
14.An optional stroboscope can be used to observe sample concentration during instrument operation.

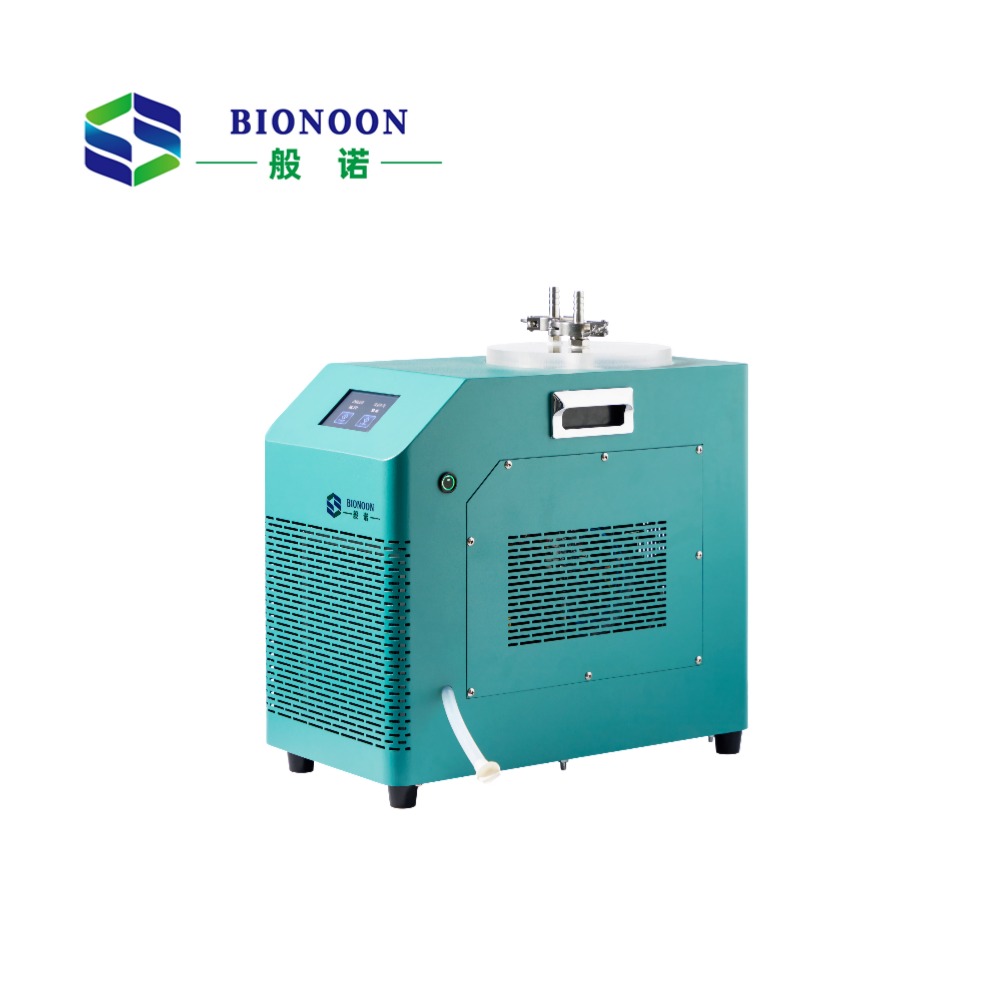

15.The cold trap adopts PLC control, 4.3 inch touch screen display, showing the cold trap temperature, setting time, total running time, defrosting time, one-button start;
16.The 304 stainless steel cold trap body is formed in one body, the coil is in the groove, and the outer coil is left 20-30mm space around the inner wall of the groove, which is convenient for users to clean.
17.The cold trap has a one-click defrosting function, and the defrosting time can be modified arbitrarily.
Parameter | Specifications | Parameter | Specifications |
Rotational Speed Range | 0 rpm ~ 2000 rpm | Temperature Control Precision | ±1℃ |
Centrifugal Force | 590 × g | Gauge Display | ＜ -0.1 MPa |
Timing Range | 0 ~ 99h59min | Noise Level | ≤ 50 dB(A) |
Cold Trap Temperature | standard-65℃ optional -80℃ / -110℃ | Total Power | 1300 W |
Sample Chamber Pre-heating Function | Available | Power Supply | AC 220V 50Hz/60Hz 10A |
Centrifugal Imaging | Optional | Dimensions (L×D×H) | main unit 520 × 350 × 240 mm |

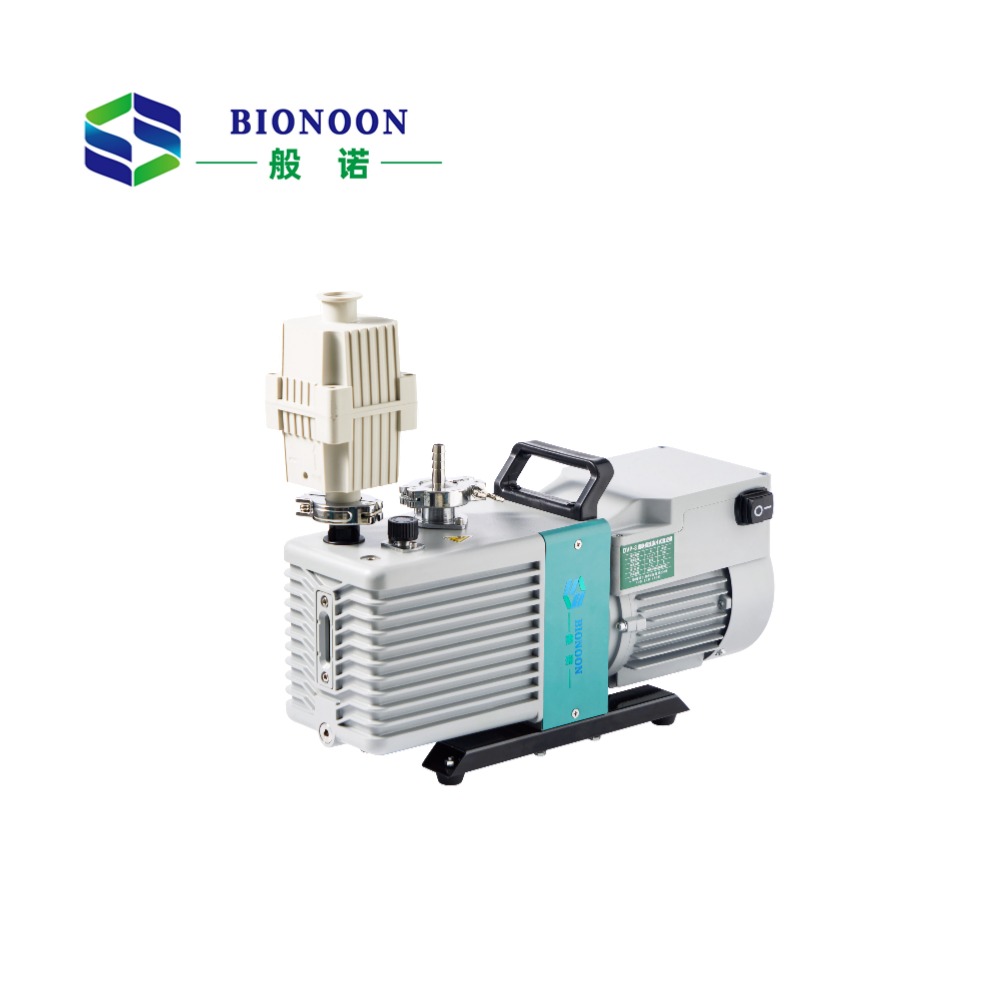

Temperature Control Range | Room Temperature ~ 100℃ | Vacuum Pump | Standard Vacuum oil pump |
| Vacuum control | Not Available | Compatible rotor | 184*1.5ml/2ml; 132*1.5/2ml; 72*5ml; 24*15ml; 12*50ml; 8*100ml; 4*250ml, 2* 96-well plate. |
| Cold trap | -65℃，3L | Pumping speed | 120L/min |
