Category | Specifications |
Brand | Bionoon |
Temperature Control Precision | ±1℃ |
Temperature Range | Room Temperature ~ 100℃ |
Price Range | Negotiable |
Instrument Type | Vacuum Centrifugal Concentrator |
Origin Category | Domestic (Made in China) |
Application Fields | Food/Agricultural Products, Bio-industry, Agriculture/Forestry/Animal Husbandry/Fishery, Public Security/Judiciary, Pharmaceutical/Biopharmaceutical |
Ultimate Vacuum Value | ≤ 6 mbar |
Rotational Speed Range | 0 ~ 2000 rpm |
Centrifugal Force | 590 × g |
Timing Range | 0 ~ 99h59min |
Noise Level | ≤ 60 dB(A) |
Power Supply | 220V |
Total Power | 1500W |
Centrifugal Imaging | Optional |
Product brief introduction

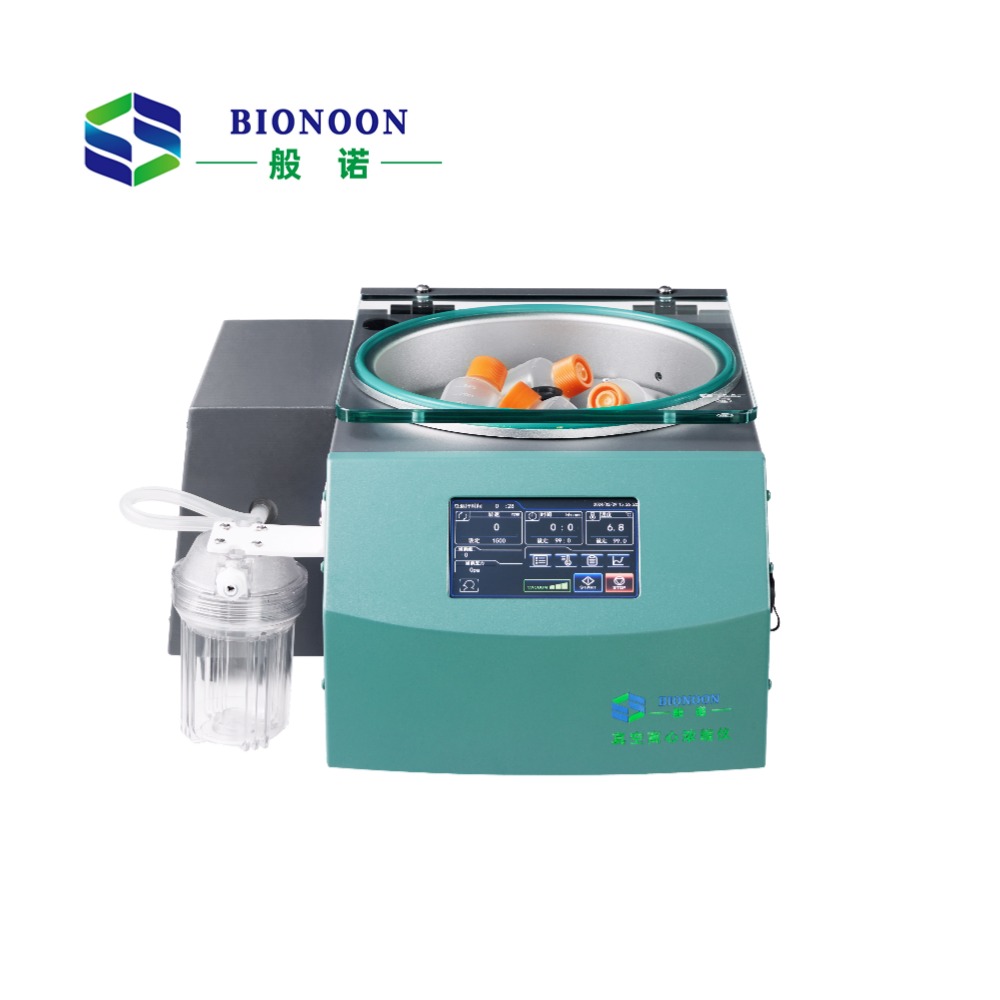

BIONOON VAC-P5 Centrifugal Evaporator from Shanghai Bionoon Biotechnology Co., Ltd. It can quickly concentrate methanol, ethanol, acetonitrile, water, and other conventional solvents. The whole machine adopts an integrated design, built-in high-quality diaphragm pump, side side-hanging waste collection bottle, small volume, saving space. It is suitable for the evaporation of medium-boiling-point solvent samples with a small sample volume. It has the function of rapid and safe evaporation of water and organic solvents in the sample. It can be used with EP tube, glass test tube, various centrifuge tubes, chromatographic bottle, centrifuge bottle, or 96-well plate.
Ⅰ Working Principle
When pressure decreases, the boiling point of the solvent also decreases accordingly. When the pressure drops to a certain level, the solvent can boil and evaporate under relatively low temperature conditions. To prevent sample evaporation and cross-contamination, high-speed centrifugal rotation technology is adopted to ensure that samples remain in the sample tubes without splashing out.
Ⅱ Technical Advantages
1. High Throughput: Capable of processing dozens to hundreds of samples simultaneously, with no cross-contamination.
2. Low-Temperature Concentration: Prevents sample loss, denaturation, decreased activity, and oxidation.
3. Minimal Sample Loss: No foam formation in samples, resulting in low loss and high recovery rate.
4. Safe & Simple Operation: One-key operation, safe and convenient, avoiding misoperation.
Ⅲ Application Scope
1. Oligomers and peptides
2. Synthesis and separation of organic substrates
3. RNA/DNA research
4. Clinical diagnostics
5. ADMET (Drug Metabolism Research)
6. Protein crystallography
7. Pharmaceutical analysis and medicinal chemistry
8. General laboratory concentration
Ⅳ Product Features
1. Can quickly concentrate methanol, ethanol, acetonitrile, water, and other conventional solvents;
2. Adopts an integrated design with a three-dimensional structure, small volume, and space-saving.
3. The whole machine adopts an integrated design, built-in high-quality diaphragm pump, side hanging waste collection bottle, small volume, saving space.
4. Built-in diaphragm pump with high pumping speed, more environmentally friendly.
5. 7-inch touch screen display: shows equipment operation status, program group number, set and actual rotational speed, set and actual temperature, set time, and running time.
6. Built-in 32 different programs, which can be called up at will according to different samples.
7. Five-stage temperature control design for the sample chamber, effectively protecting sample safety.
8. One-key start function, the entire process is completed in one go with high automation.
9. Built-in vacuum delay function: vacuum is drawn only after the rotational speed reaches the preset value, effectively protecting samples and preventing splashing.
10. Quick-insert rotor design, can quickly change different rotors, and rotors are formed without solder joints.

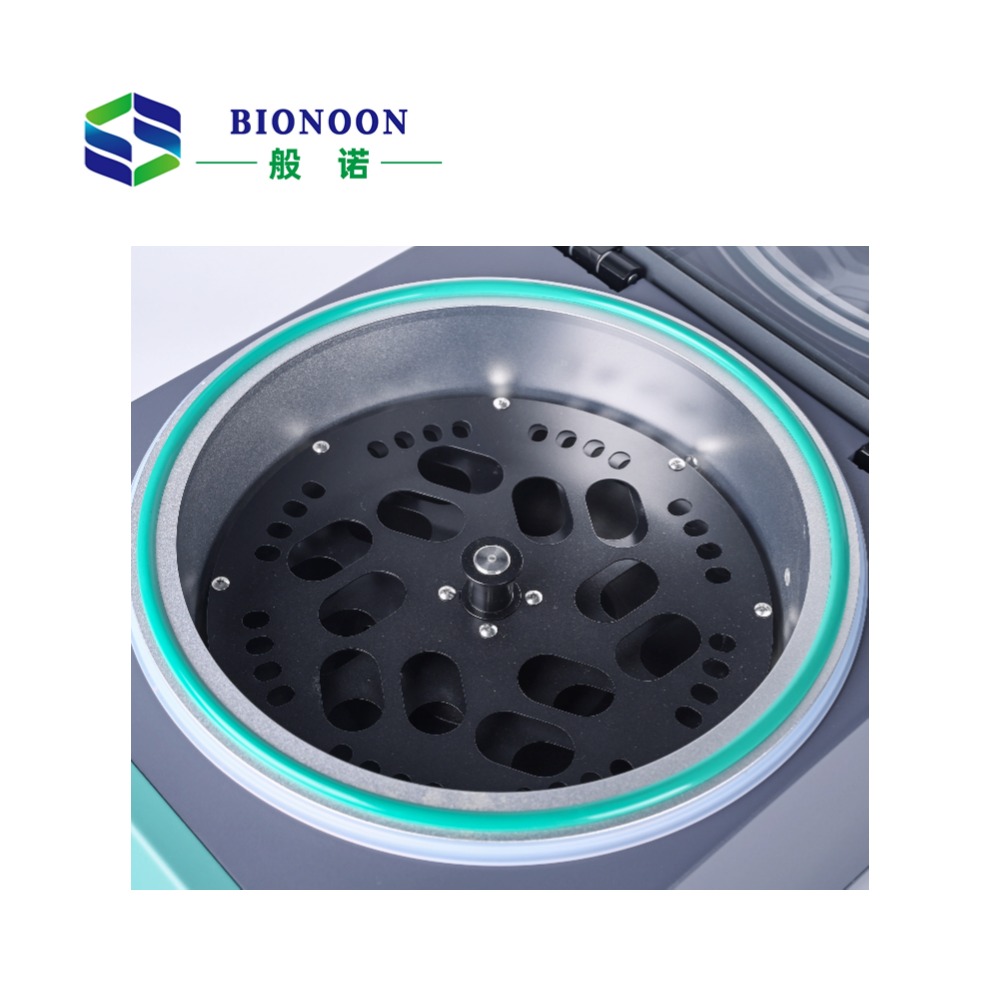

11. Anti-chemical corrosion centrifugal chamber of acid and alkali resistance, which is one-piece molding with R angle arc design, that would be easy to clean;
12. The cold trap adopts PLC control, 4.3 inch touch screen display, showing the cold trap temperature, setting time, total running time, defrosting time, one-button start;
13. The 304 stainless steel cold trap body is formed in one body, the coil is in the groove, and the outer coil is left 20-30mm space around the inner wall of the groove, which is convenient for users to clean.
14. The cold trap has a one-click defrosting function, and the defrosting time can be modified arbitrarily.
Ⅴ Technical Parameters
Parameter | Specifications | Parameter | Specifications |
Rotational Speed Range | 0 rpm ~ 2000 rpm | Chamber Temperature Control Range | Room Temperature ~ 100℃ |
Centrifugal Force | 590 × g | Temperature Control Precision | ±1℃ |
Sample chamber preheating function | Have | Ultimate Vacuum Value | ≤ 6 mbar |
Timing Range | 0 ~ 99h59min | Diaphragm pump pumping speed | 38L/min |
Sample Chamber Pre-cooling Function | Available | Power Supply | AC 220V 50Hz/60Hz 10A |
Centrifugal Imaging | Optional | Compatible rotor | 184*1.5ml/2ml; 132*1.5/2ml；72*5ml；24*15ml；12*50ml；8*100ml；4*250ml，2* 96-well PCR plates. |
Cold trap volume | 3L | Cold trap temperature | Standard configuration-65℃ |
