Category | Details |
Brand | Bionoon |
Price Range | Negotiable |
Instrument Type | Vacuum Centrifugal Concentrator |
Origin Category | Domestic (Made in China) |
Application Fields | Food/Agricultural Products, Bio-industry, Agriculture/Forestry/Animal Husbandry/Fishery, Public Security/Judiciary, Pharmaceutical/Biopharmaceutical |
Rotor Capacity | 2 mL, 1.5 mL |
Rotor Well Count | 132-well |
Rotor Material | One-piece molded aluminum alloy |
Usage Mode | Quick-connect Type |
I. Working Principle
When pressure decreases, the boiling point of the solvent also decreases accordingly. When the pressure drops to a certain level, the solvent can boil and evaporate under relatively low temperature conditions. To prevent sample evaporation and cross-contamination, high-speed centrifugal rotation technology is adopted to ensure that samples remain in the sample tubes without splashing out.
II. Technical Advantages
1. High Throughput: Capable of processing dozens to hundreds of samples simultaneously, with no cross-contamination.
2. Low-Temperature Concentration: Prevents sample loss, denaturation, decreased biological activity, and oxidation.
3. Minimal Sample Loss: No foam forms in samples, leading to low loss and high recovery rate.
4. Safe & Easy Operation: Features one-key operation for safety and convenience, avoiding misoperation.
III. Application Scope
1. Oligomers and peptides
2. Synthesis and separation of organic substrates
3. RNA/DNA research
4. Clinical diagnostics
5. ADMET (Drug Metabolism Research)
6. Protein crystallography
7. Pharmaceutical analysis and medicinal chemistry
8. General laboratory concentration

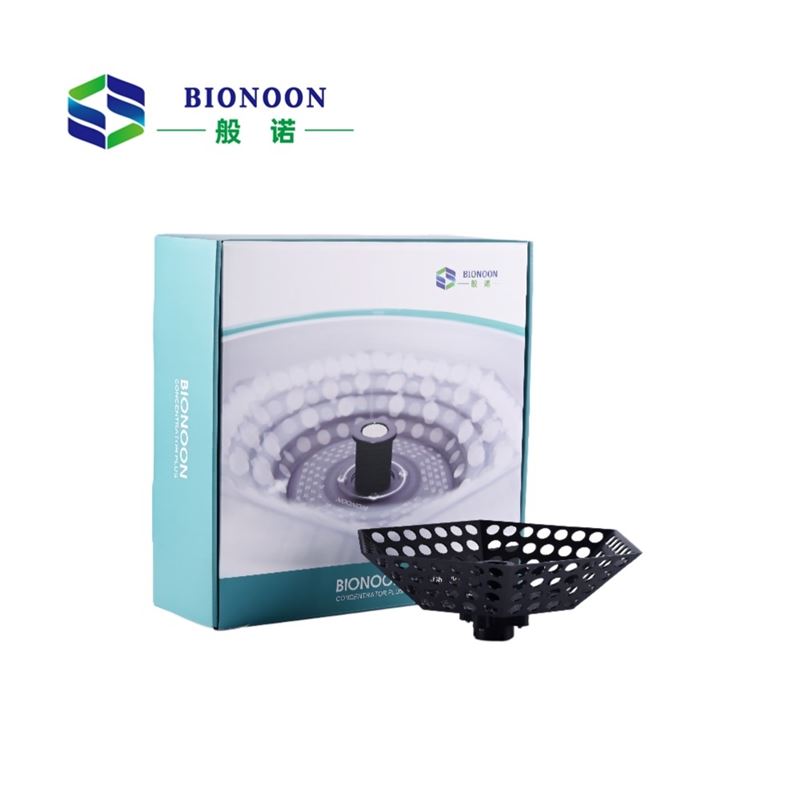

IV. Product Description
As a key accessory for vacuum centrifugal concentrators, the Bionoon high-throughput rotor is available in multiple specifications and capacities, capable of holding samples with volumes ranging from 0.5 mL to 250 mL. It is compatible with EP tubes, glass bottles, and other containers, enabling high-throughput sample concentration in a single run. This high-throughput rotor is characterized by a quick-connect design, corrosion resistance, one-piece molding, light weight, and durability.
V. Features
1. Teflon coating for excellent corrosion resistance;
2. One-piece molding process for long-term durability;
3. Quick-connect design for easy installation and replacement;
4. Made of aluminum alloy, offering light weight and a sleek appearance;
5. Multiple specifications available, with customization service supported.

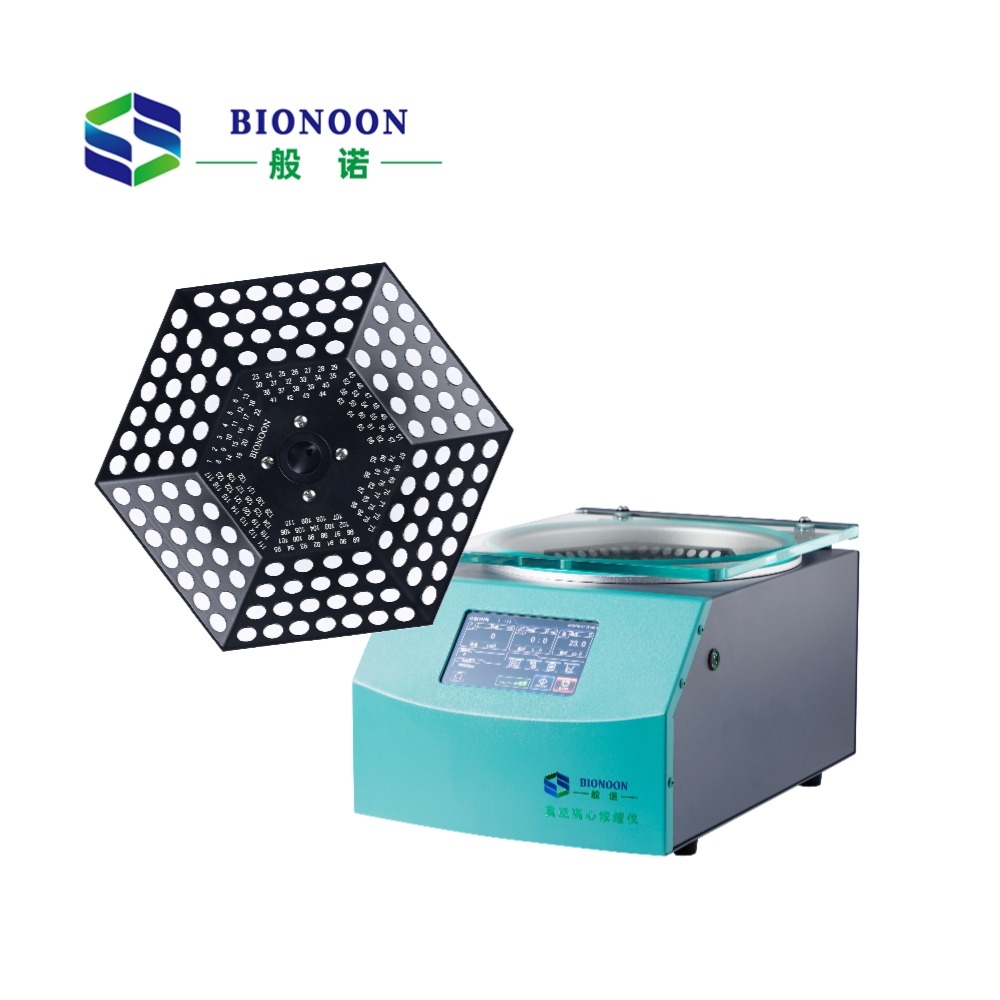

VI. Technical Parameters
This high-throughput rotor, manufactured by Shanghai Bionoon, adopts a hexagonal design, ensuring high throughput and easy installation. It can concentrate 132 samples (1.5 mL or 2 mL per sample) in one operation and is compatible with ordinary EP tubes—no special materials are required. This rotor is a dedicated accessory for vacuum centrifugal concentrators and must be used with matching vacuum centrifugal concentrators.
