Automated Concentrator with RS485 communication

Model: BIONOON VAC-AT
Item NO.:BN71005-2

Category :

E-mail

hiddenValue

PRODUCT DETAILS

Category	Specifications
Brand	Bionoon
Temperature Control Precision	±1℃
Temperature Range	RT ~ 100℃
Price Range	Negotiable
Instrument Type	Automated Concentrator with RS485 communication,Precise automatic positioning, One set.
Origin Category	Domestic (Made in China)
Application Fields	It is applicable to efficient sample concentration in biomedicine, environmental detection and other fields, providing an efficient automatic solution for laboratory sample pretreatment.
Ultimate Vacuum Value	≤ 2mbar
Rotational Speed Range	0 ~ 2000 rpm
Centrifugal Force	590 × g
Timing Range	0 ~ 99h59min
Noise Level	≤ 60 dB(A)
Power Supply	220V
Total Power	1500 W
Centrifugal Imaging	Optional
Sample Chamber pre-heating Function	Available
Sample Chamber Temperature	RT ~ 100℃
Cold Trap Temperature	Standard: -65℃; Optional: -80℃, -110℃
Vacuum Pump Configuration	Included, diaphragm pump
Concentration Capacity	1.5 ml ~ 250 ml/bottle

ⅠApplication Scope

1. Oligomers and peptides

2. Synthesis and separation of organic substrates

3. RNA/DNA research

4. Clinical diagnostics

5. ADMET (Drug Metabolism Research)

6. Protein crystallography

7. Pharmaceutical analysis and medicinal chemistry

8. General laboratory concentration

Ⅱ Product Features

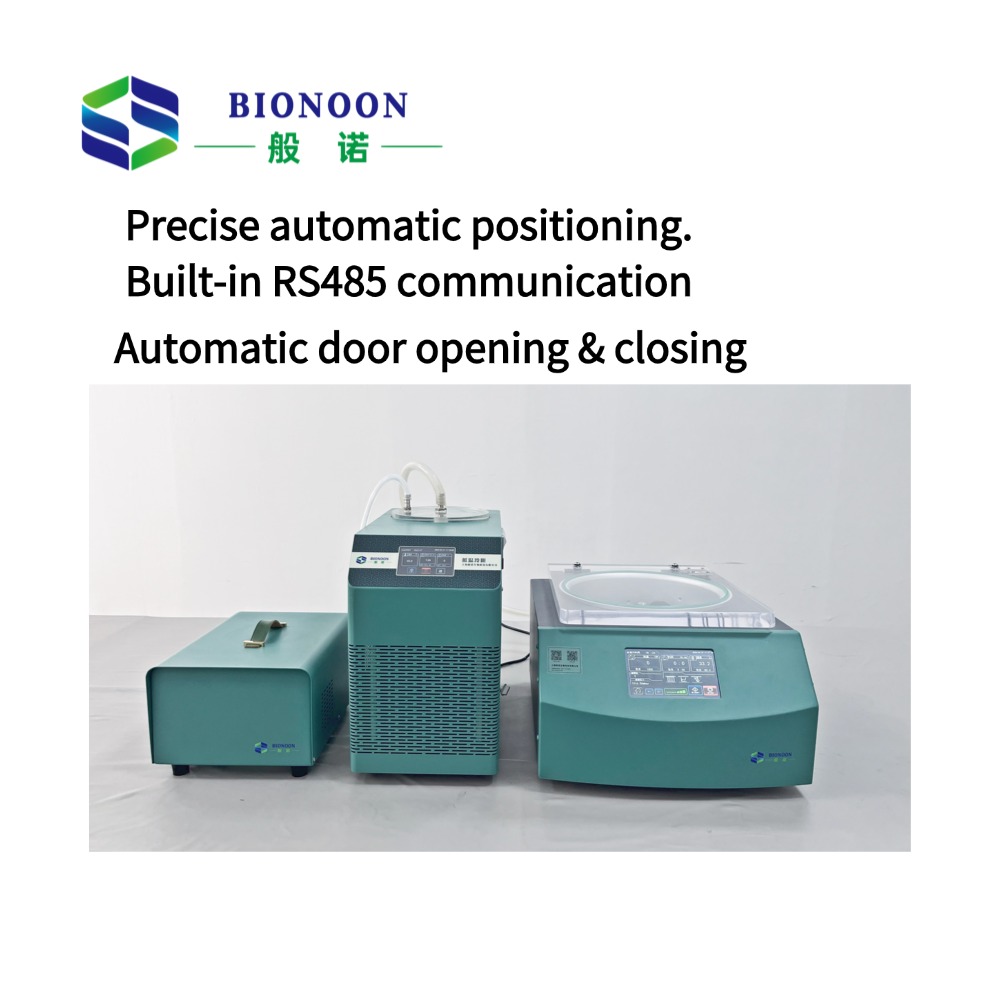

1.Precise automatic positioning.

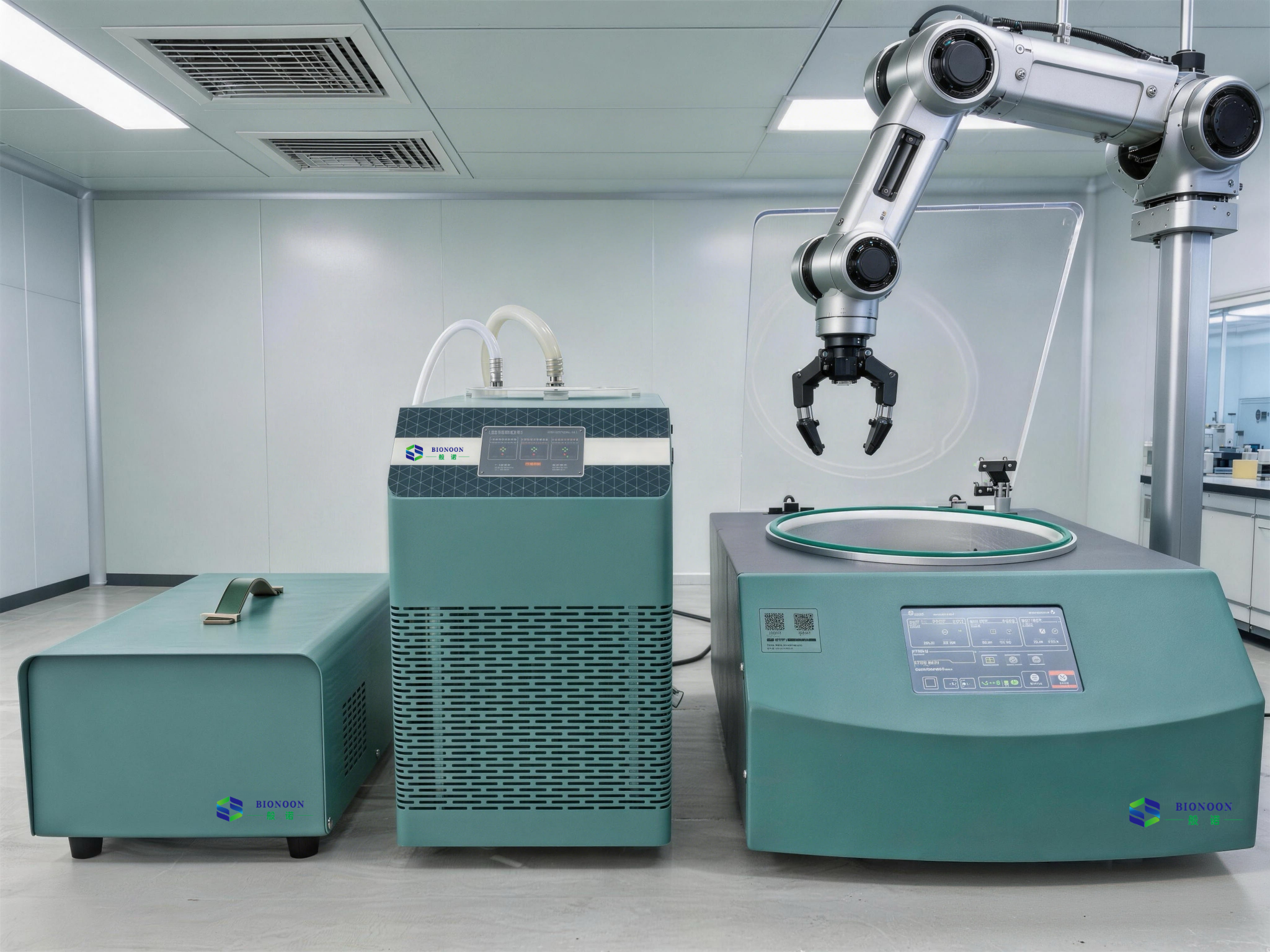

2.Built-in RS485 communication, compatible with laboratory automation systems.

3.Automatic door opening & closing for safer and more convenient operation.

4.Fully unattended operation with stable and reliable performance.

Customization is available upon customer request.

Ⅲ Technical Parameters

Parameter	Specifications	Parameter	Specifications
Rotational Speed Range	0 rpm ~ 2000 rpm	Temperature Control Precision	±1℃
Centrifugal Force	590 × g	Ultimate Vacuum Value	≤ 2mbar
Timing Range	0 ~ 99h59min	Pumping Speed	4.0 m³/H
Sample Chamber Pre-Cooling Function	Available	Power Supply	AC 220V 50Hz/60Hz 10A
Centrifugal Imaging	Optional	Noise Level	≤ 60 dB(A)
Temperature Control Range	RT ~ 100℃	Cold Trap Temperature	Standard: -65℃，3L
