Category | Specifications |
Brand | Bionoon |
Temperature Control Precision | ±1℃ |
Temperature Range | Room Temperature ~ 100℃ |
Price Range | Negotiable |
Instrument Type | Vacuum Centrifugal Concentrator,Mini type,Room temperature ,Main unit. |
Origin Category | Domestic (Made in China) |
Application Fields | Food/Agricultural Products, Bio-industry, Agriculture/Forestry/Animal Husbandry/Fishery, Public Security/Judiciary, Pharmaceutical/Biopharmaceutical |
Ultimate Vacuum Value | ＜ 10 Pa |
Rotational Speed Range | 0 ~ 2000 rpm |
Centrifugal Force | 590 × g |
Timing Range | 0 ~ 99h59min |
Noise Level | ≤ 50 dB(A) |
Compatible rotor capacities | 24*1.5/2ml + 24*0.5ml or 12*5ml. |
Product Description

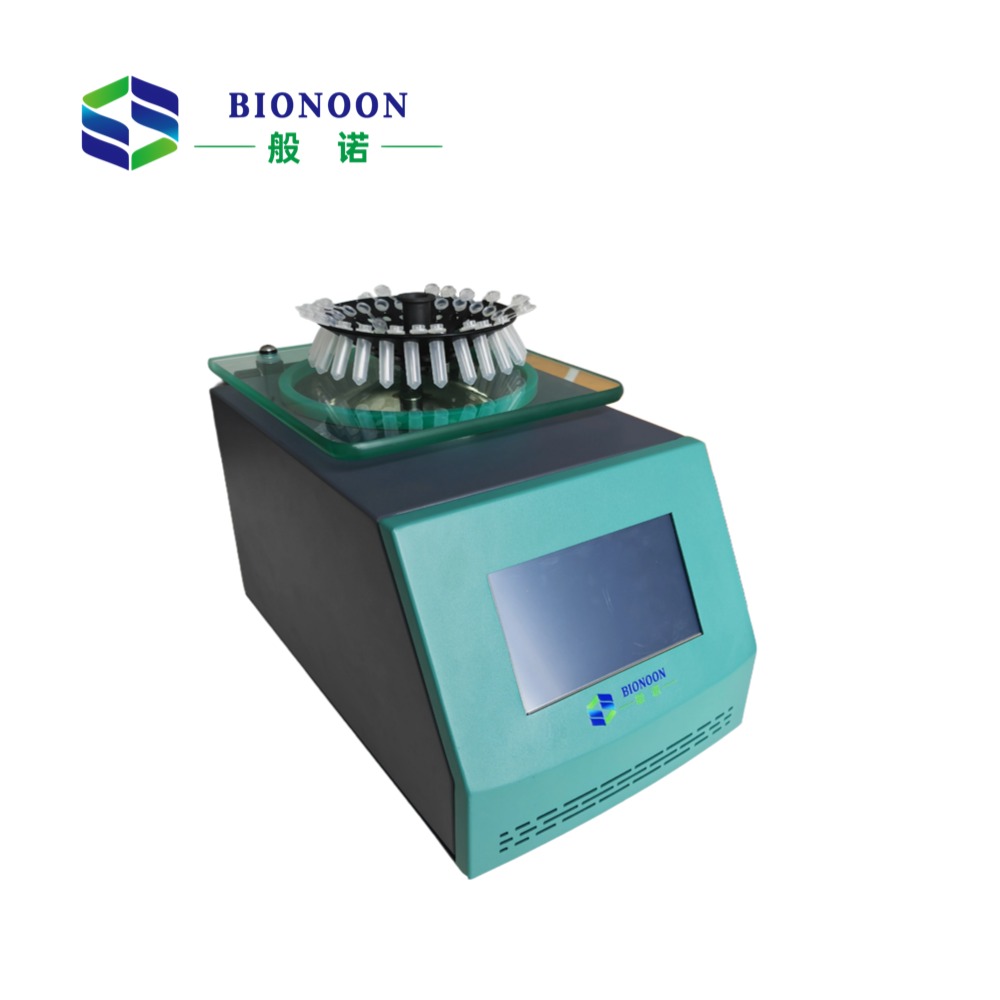

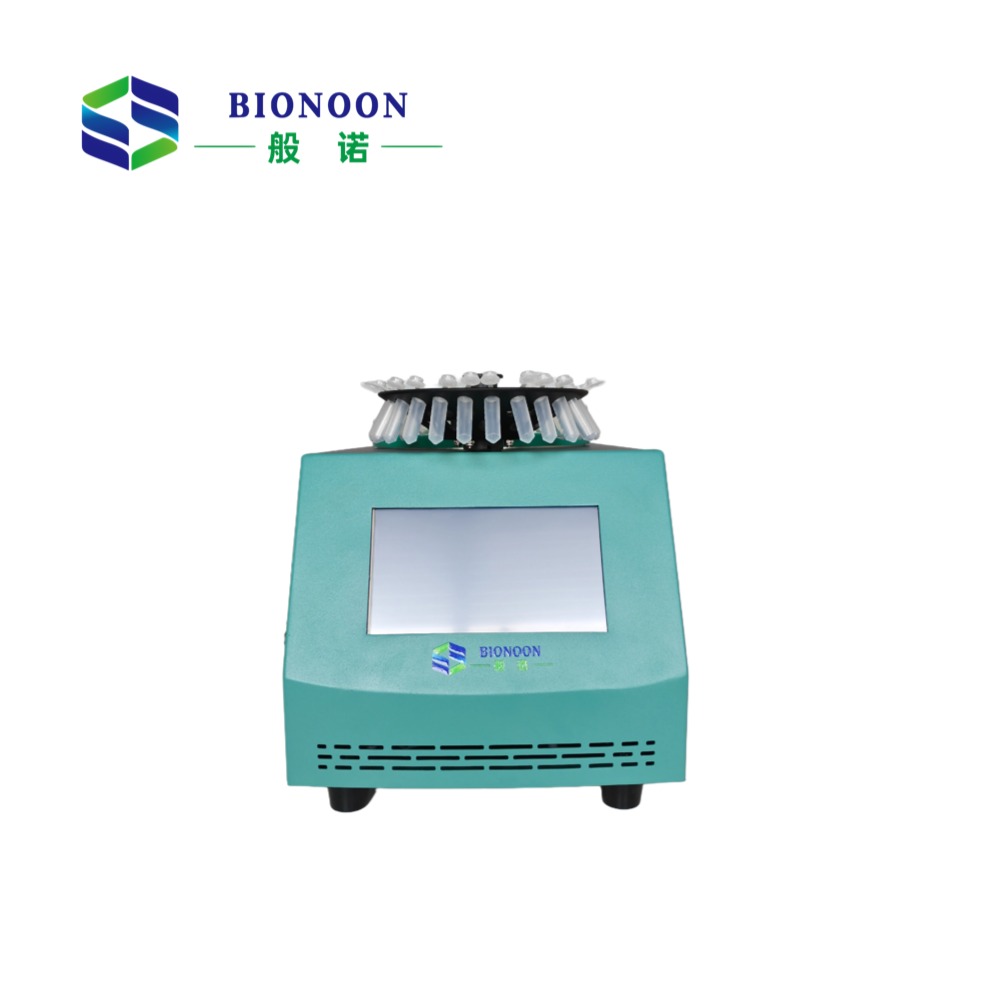

The BIONOON MVAC Vacuum Centrifugal Concentrator, manufactured by Shanghai Bionoon Biotechnology Co., Ltd., is specifically designed for precious micro-volume samples. Compact, lightweight, and elegantly designed, it is ideal for evaporating solvent samples with moderate boiling points and small sample volumes. This device rapidly and safely evaporates water and organic solvents from samples and is compatible with EP tubes, glass test tubes, and various centrifuge tubes.
Ⅰ Working Principle
When pressure decreases, the boiling point of the solvent also decreases accordingly. When the pressure drops to a certain level, the solvent can boil and evaporate under relatively low temperature conditions. To prevent sample evaporation and cross-contamination, high-speed centrifugal rotation technology is adopted to ensure that samples remain in the sample tubes without splashing out.
Ⅱ Technical Advantages
1. High Throughput: Capable of processing dozens to hundreds of samples simultaneously, with no cross-contamination.
2. Low-Temperature Concentration: Prevents sample loss, denaturation, decreased activity, and oxidation.
3. Minimal Sample Loss: No foam formation in samples, resulting in low loss and high recovery rate.
4. Safe & Simple Operation: One-key operation, safe and convenient, avoiding misoperation.
Ⅲ Application Scope
1. Oligomers and peptides
2. Synthesis and separation of organic substrates
3. RNA/DNA research
4. Clinical diagnostics
5. ADMET (Drug Metabolism Research)
6. Protein crystallography
7. Pharmaceutical analysis and medicinal chemistry
8. General laboratory concentration
Ⅳ Product Features
1. Specifically designed for concentrating and drying trace precious samples ranging from 0.5 to 5 ml;

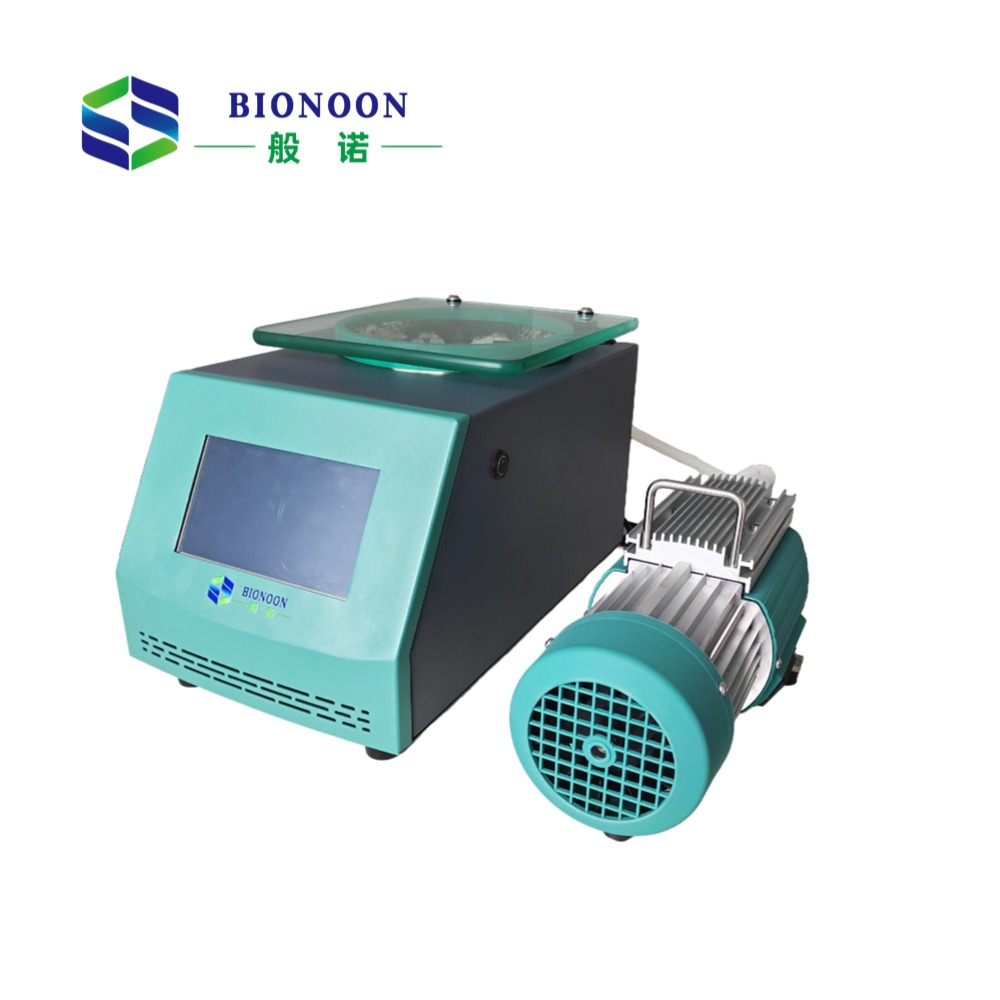

2. Modular design with independently assembled components: centrifuge chamber/vacuum chamber, vacuum pump, and cold trap.
3. 7-inch touchscreen display shows: device status, program group number, set/actual speed, set/actual temperature, set time, and elapsed time.
4. One-touch start function enables seamless, highly automated operation throughout the entire process.
5. Built-in vacuum delay function initiates vacuum after reaching preset speed, effectively protecting samples and preventing splashing.
6. Maintenance-free induction motor with electromagnetic drive centrifugal system ensures low noise and zero upkeep.
7. Imported peripheral heating band with preheat function reaches 100°C, enabling safe and efficient concentration of diverse samples.

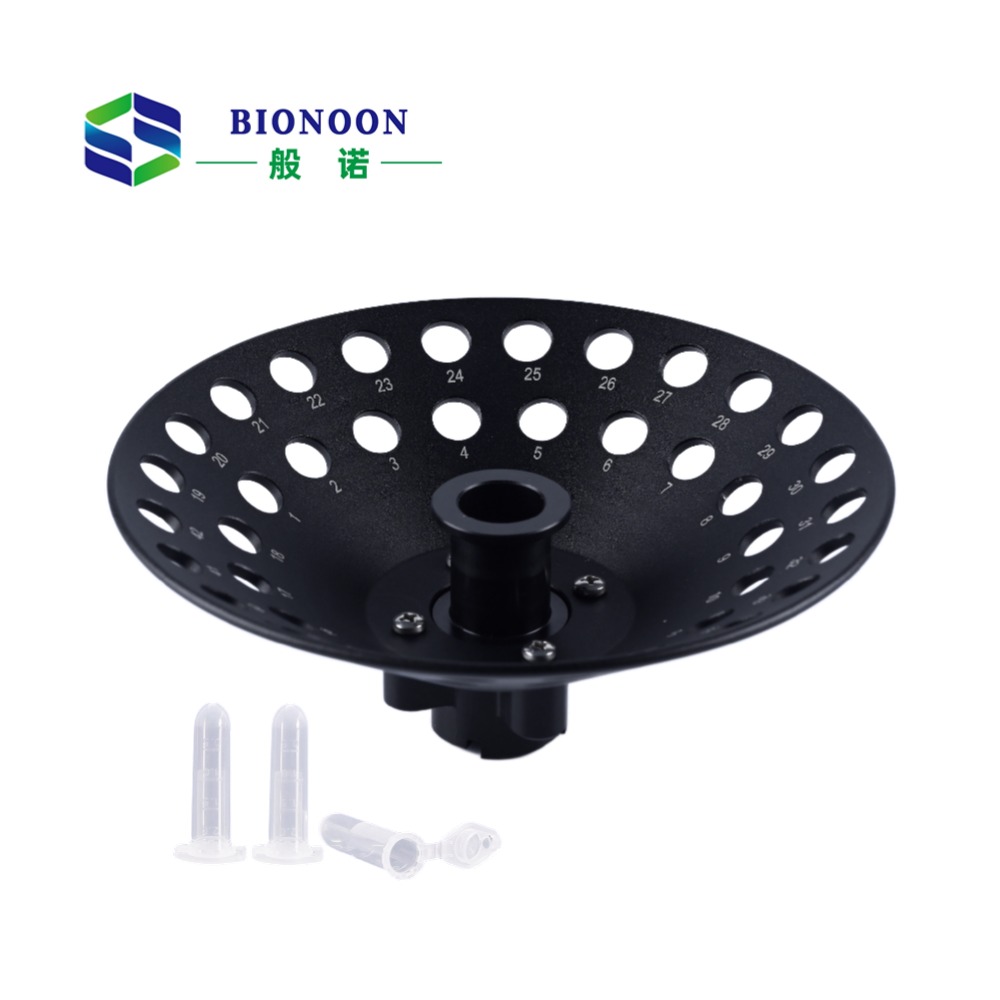

8. Quick-connect rotor design facilitates rapid swapping of different rotors; rotors feature seamless, weld-free construction.
9. One-piece 304 stainless steel centrifuge chamber with rounded corners eliminates dead spots for easy cleaning.
10. Original imported pressure relief valve enables automatic vacuum release with simple, safe operation and auto-on/off functionality.
11. High-transparency tempered glass lid facilitates evaporation monitoring.
12. Compatible rotor capacities: 24*1.5/2ml + 24*0.5ml or 12*5ml.
Ⅴ Technical Parameters
Parameter | Specifications | Parameter | Specifications |
Rotational Speed Range | 0 rpm ~ 2000 rpm | Temperature Control Range | Room Temperature ~ 100℃ |
Centrifugal Force | 590 × g | Ultimate Vacuum Value | ≤ 10 Pa |
Timing Range | 0 ~ 99h59min | Noise Level | ≤ 50 dB(A) |
Vacuum Control Function | Available | Total Power | 400 W |
Sample Chamber Pre-heating Function | Available | Power Supply | AC 220V 50Hz/60Hz 10A |
Centrifugal Imaging | Optional | Host Dimensions (L×D×H) | 345*260*240mm |
Temperature Control Precision | ±1℃ | Weight | 15.6 kg |
