Category | Specifications |
Brand | Bionoon |
Temperature Control Precision | ±1℃ |
Temperature Range | Room Temperature ~ 100℃ |
Price Range | Negotiable |
Instrument Type | Vacuum Centrifugal Concentrator,suit including main unit+diaphragm pump+cold trap. |
Origin Category | Domestic (Made in China) |
Application Fields | Food/Agricultural Products, Bio-industry, Agriculture/Forestry/Animal Husbandry/Fishery, Public Security/Judiciary, Pharmaceutical/Biopharmaceutical |
Ultimate Vacuum Value | ＜ 10 Pa |
Rotational Speed Range | 0 ~ 2000 rpm |
Centrifugal Force | 590 × g |
Timing Range | 0 ~ 99h59min |
Noise Level | ≤ 50 dB(A) |
Power Supply | 220V |
Concentrated Sample Capacity | 1.5 mL ~ 250 mL |
Cold Trap Temperature | Standard: -65℃; Optional: -80℃, -110℃ |
Vacuum Pump | Included,diaphragm pump |
Centrifugal Imaging | Optional |
Product Description
This Vacuum evaporator combination, including concentrator main engine, diaphragm pump and 3L low temperature cold trap, suitable for large sample processing capacity, equipment needs to run for a long time, and have higher requirements for concentration efficiency of scientific research institutions, industrial enterprises, etc., can be used as production instruments. It is equipped with 1.5ml~250ml EP tubes, glass test tubes, various centrifugal tubes, chromatographic bottles, centrifugal bottles or 96-wellplates, etc., which can quickly and safely evaporate the water and organic solvents in the sample.
Below is a detailed introduction to this vacuum centrifugal concentrator:
Ⅰ Working Principle
When the pressure is lowered, the boiling point of the solvent also decreases. When the pressure is reduced to a certain degree, the solvent can boil and evaporate under relatively low temperature conditions. In order to avoid evaporation and cross-contamination of the sample, high-speed centrifugal rotation technology is used to ensure that the sample will not be sprayed in the sample tube
Ⅱ. Design Features
1. Compact Design: This vacuum centrifugal concentrator is usually designed with a benchtop structure, occupying little space and suitable for placement on standard laboratory workbenches.
2. Easy Operation: It has a user-friendly interface with clear and simple parameter settings, allowing users to get started quickly.
3. Multiple Adapters: Equipped with different types of rotors and adapters, it is compatible with various specifications of test tubes and microplates to meet different experimental needs.
4. Automatic Anti-Suckback Function: This function can prevent solvent vapor from flowing back into the samples when the machine stops, protecting the samples from contamination.
5. Cold Trap System: A cold trap device is included to capture evaporated solvents, avoiding contamination of the vacuum pump or ambient air.
6. Timing and Temperature Control: Provides precise time and temperature control systems to ensure the samples remain in suitable conditions throughout the process and are not damaged by overheating.

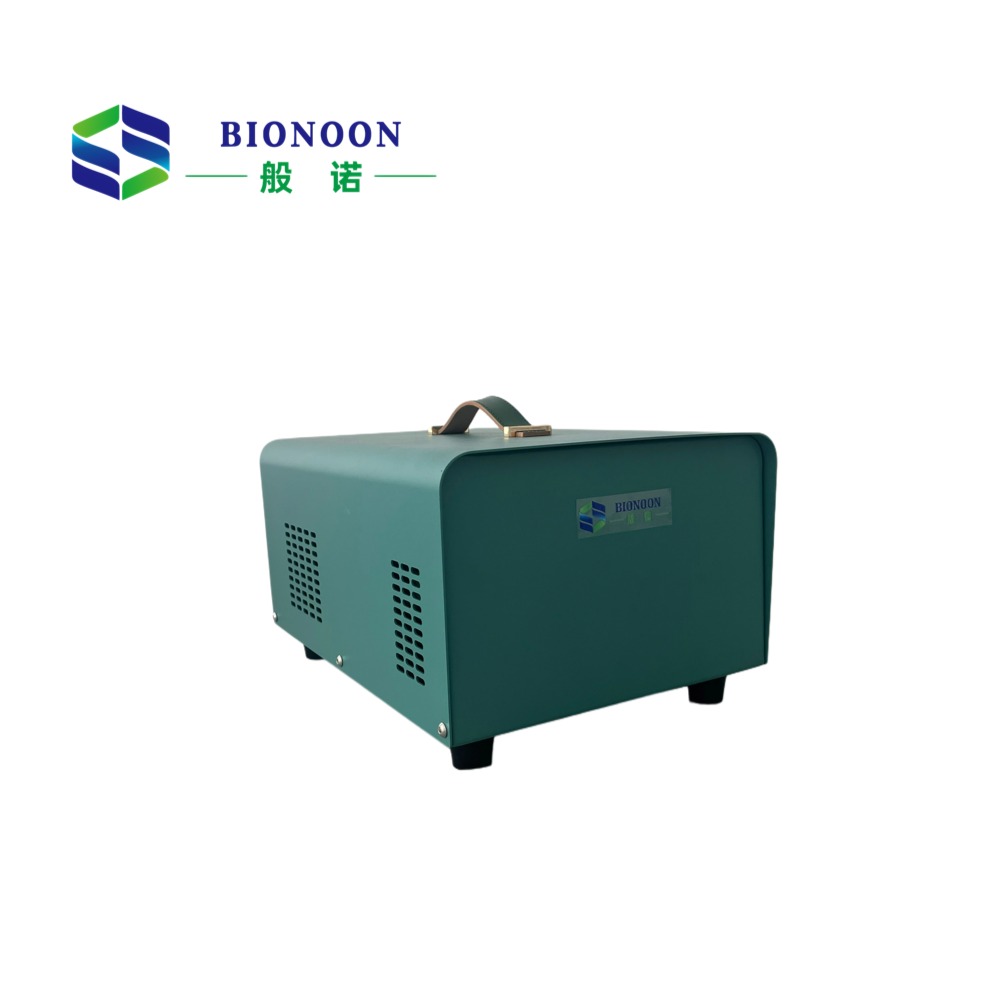

7.Diaphragm pump:Equipped with a chemically resistant diaphragm pump, it delivers high suction power without requiring vacuum pump oil.
Ⅲ. Application Fields
1. DNA/RNA Extraction and Purification: Efficiently recover nucleic acid molecules from cell lysates.
2. Protein Concentration: Reduce the volume of buffer to increase protein concentration, facilitating subsequent analysis.
3. Enzyme Activity Assay: Concentrate enzyme solutions to improve reaction efficiency.
4. Trace Substance Detection: Enrichment of trace components such as pesticide residues and environmental pollutants.
5. Pharmaceutical Development: Concentrate compound libraries during drug screening processes.
Ⅳ Technical Specifications
1. Support normal temperature concentration, temperature range is: room temperature ~ 100 ℃, with 0.1 ℃ increment.
2.Anti-chemical corrosion centrifugal chamber of acid and alkali resistance, which is one-piece molding with R angle arc design, that would be easy to clean;
3.Modular design, high flexibility;
4. Built-in vacuum delay function, effectively protecting samples and preventing splashes;
5.AC frequency conversion maintenance-free induction motor that has an electromagnetic drive centrifugal system which can make less noise and maintenance-free;
6. The five-stage temperature control design of the sample chamber effectively protects the safety of the sample;
7. Built-in 32 sets of different programs, which can be called arbitrarily according to different samples;
8.7-inch touch screen displays: equipment operating status, program group number, set and actual speed, set and actual temperature, set time and running time;
9.One-button start function makes the whole process is completed in one go and with a high degree of automation.
10.Quick-insert rotor design, can quickly change different rotors, rotors are formed without solder joints.
11. High penetration tempered glass cover, easy to observe the evaporation situation.
12. Compatible rotor capacity: 184*1.5ml/2ml; 132*1.5/2ml; 72*5ml; 24*15ml; 12*50ml; 8*100ml; 4*250ml, 2* 96-well plate.
13. Quick-insert rotor design, can quickly change different rotors, rotors are formed without solder joints.
14. Compatible rotor capacity: 184*1.5ml/2ml; 132*1.5/2ml; 72*5ml; 24*15ml; 12*50ml; 8*100ml; 4*250ml, 2* 96-well plate.
15.High penetration tempered glass cover, easy to observe the evaporation situation.
16.An optional stroboscope can be used to observe sample concentration during instrument operation.

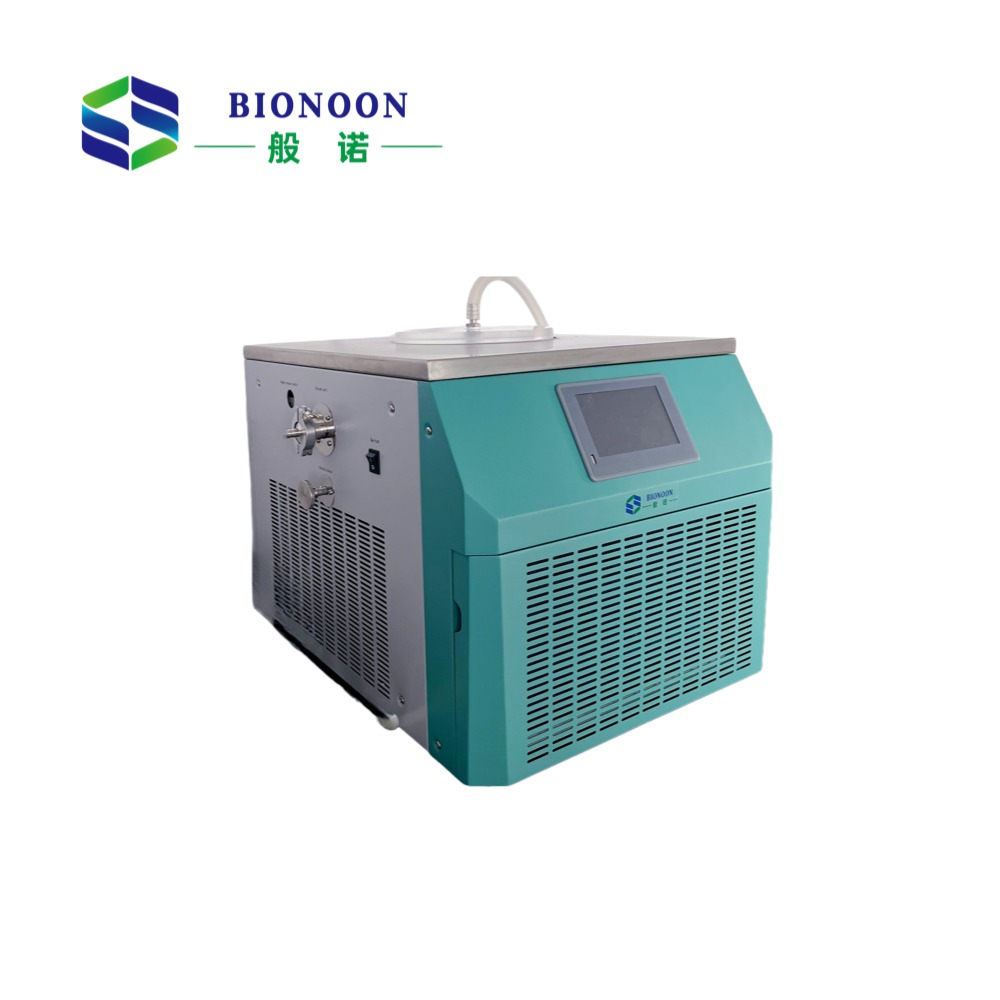

17.The cold trap adopts PLC control, 4.3 inch touch screen display, showing the cold trap temperature, setting time, total running time, defrosting time, one-button start;
18.The 304 stainless steel cold trap body is formed in one body, the coil is in the groove, and the outer coil is left 20-30mm space around the inner wall of the groove, which is convenient for users to clean.
19.The cold trap has a one-click defrosting function, and the defrosting time can be modified arbitrarily.
Ⅴ Technical Parameters
Parameter | Specifications | Parameter | Specifications |
Rotational Speed Range | 0 rpm ~ 2000 rpm | Temperature Control Precision | ±1℃ |
Centrifugal Force | 590 × g | Ultimate Vacuum Value | ≤ 2mbar |
Timing Range | 0 ~ 99h59min | Noise Level | ≤ 50 dB(A) |
Cold Trap Temperature | Standard-65℃ Optional-85℃，-110℃
| Total Power | 1300 W |
Sample Chamber Pre-cooling Function | Available | Power Supply | AC 220V 50Hz/60Hz 10A |
Centrifugal Imaging/ stroboscope | Optional | Dimensions (L×D×H) | main unit 520 × 350 × 240 mm |
Temperature Control Range | Room Temperature ~ 100℃ | Diaphragm pump | Standard Configuration |
| Vacuum control | Available | Compatible rotor | 184*1.5ml/2ml; 132*1.5/2ml; 72*5ml; 24*15ml; 12*50ml; 8*100ml; 4*250ml, 2* 96-well plate. |
| Cold trap | -65℃，3L | Pumping speed
| 4.2m³/h, 70L/min |
