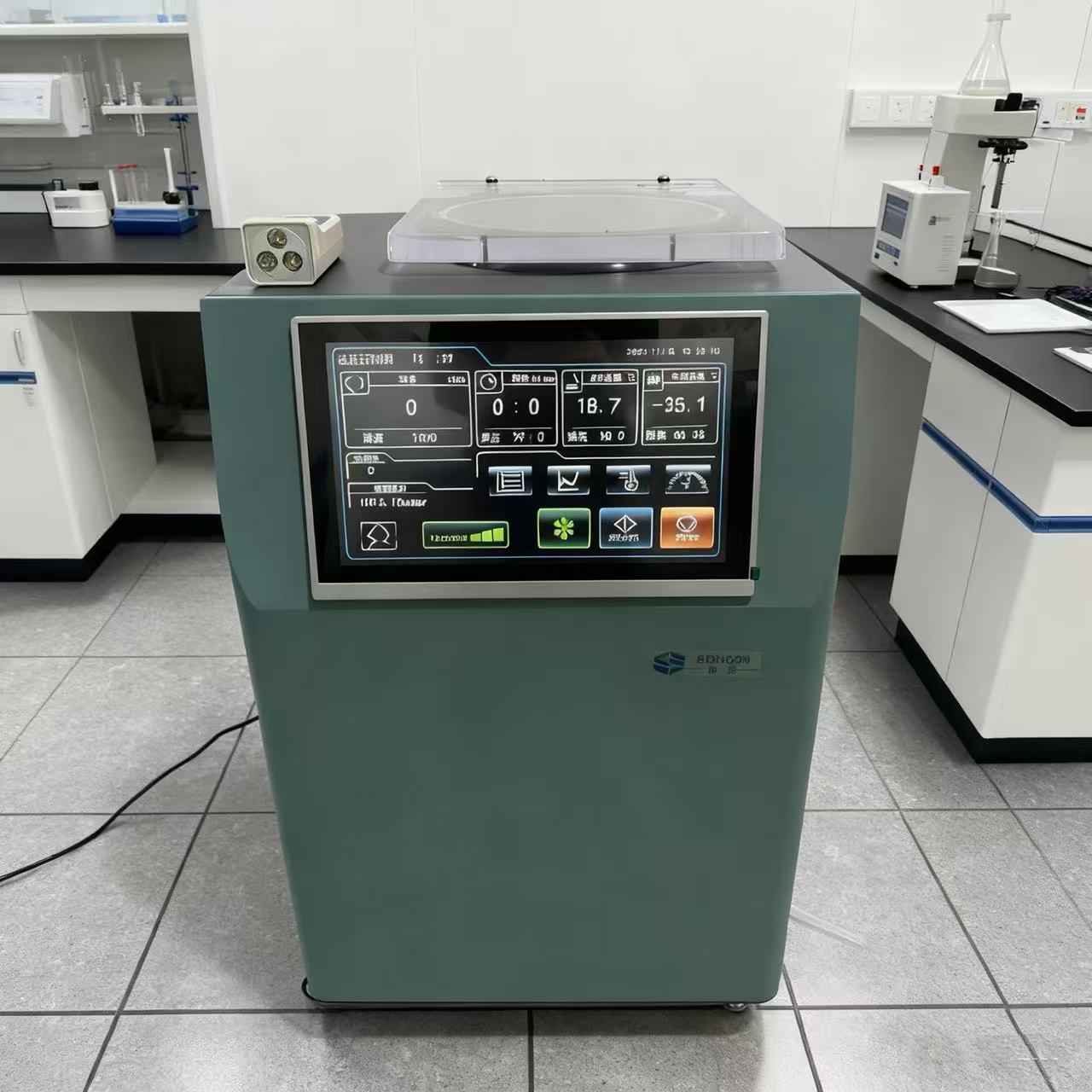

Smart Vacuum Concentration System(Integrated)

Model:BIONOON VAC-NC
Item NO.: BN71016

Category :

Integrated Vacuum Centrifugal Concentrator

+86 18621179858 , +86 15000983478

echo@bionoon3.com

E-mail

Related Products

Online Message

hiddenValue

PRODUCT DETAILS

The BIONOON VAC-NC Integrated Smart Vacuum Concentration System, manufactured by Shanghai Bionoon Biotechnology Co., Ltd., meets the concentration needs for biological and chemical samples such as RNA/DNA and microorganisms. It provides a fully integrated vacuum centrifugal concentration solution. During operation, users can select different rotor models and accessories based on sample volume, including EP tubes, glass test tubes, various centrifuge tubes, chromatography vials, centrifuge bottles, or 96-well plates.

Main Parameter table

Model	BIONOON VAC-NC	Item NO.	BN71016
Remote Control System	Wifi /Internet	Vacuum Pump	Built-in
Chamber Temperature	0-100℃	Condenser	Built-in
Temperature Control Accuracy	±1℃	Speed Range	0~2000rpm
Time Range	0~99h59min/Run Continuously	Centrifugal Force	590×g.
Condenser Temperature	≤-70℃	Ultimate vacuum	≤2mbar
Condenser Volume	3000ml	Pumping Speed	90L/min.
Noise level	≤60dB(A)	Screen Display	15-inch HD
Total Powel	1300W	Voltage	220V
Compatible with oversized rotors:184×1.5ml/2ml; 72×0.5ml+60×2ml; 72×5ml; 24×15ml+52×5ml; 12×50ml+32×2ml; 8×100ml; 4×250ml; 4×96-well plates, 2*80 Chromatography vial rotor.

I. Working Principle

As pressure decreases, the boiling point of the solvent also lowers. When pressure drops to a certain level, the solvent can boil and evaporate at relatively low temperatures. To prevent sample evaporation and cross-contamination, high-speed centrifugal rotation technology ensures samples remain securely within tubes without ejection.

II. Technical Advantages

High-Throughput: Simultaneously processes dozens to hundreds of samples with zero cross-contamination.

Low-Temperature Concentration: Prevents sample loss, denaturation, activity decline, and oxidation.

Minimal Loss: Prevents sample foaming, minimizes loss, and maximizes recovery rate.

Safe & Simple: One-button operation ensures safety and convenience while preventing misoperation.

III. Application Scope

⊙ Oligomer and Peptide Synthesis ⊙ Organic Substrate Synthesis and Separation

⊙ RNA/DNA Research ⊙ Clinical Diagnostics

⊙ ADMET (Drug Metabolism Research) ⊙ Protein Crystallography

⊙ Pharmaceutical Analysis, Medicinal Chemistry ⊙ General Laboratory Concentration

IV. Technical Specifications

1. Chamber Temperature: 0–100°C, 0.1°C increments

※2. Integrated WiFi and internet interface enable seamless remote control, allowing operators to monitor device status even when away from the instrument.

※3. 15-inch HD touchscreen integrates sample concentration, solvent recovery, and vacuum control systems.

4. Plug-and-play design eliminates complex tubing connections, simplifying experimental setup.

5. Vertical, mobile design saves laboratory space.

6. Maintenance-free induction motor with electromagnetic drive centrifugal system ensures low noise and zero upkeep.

7. Quick-connect rotor design enables rapid swapping of different rotors; rotors are integrally molded with no weld points.

8. The chemically resistant centrifuge chamber is made of integrally molded aluminum alloy with rounded corners, eliminating dead spots for easy cleaning.

9. The electronic pressure sensor provides a precise numerical display. Automatic vacuum release ensures simple, safe operation with auto-on/off functionality.

※10. Built-in corrosion-resistant diaphragm pump withstands acids, alkalis, and organic solvents. Oil-free design maintains laboratory cleanliness. Ultimate vacuum ≤2mbar, pumping speed 90L/min.

11. Speed (r/min): 0–2000.

※12. Compatible with oversized rotors: 184×1.5ml/2ml; 72×0.5ml+60×2ml; 72×5ml; 24×15ml+52×5ml; 12×50ml+32×2ml; 8×100ml; 4×250ml; 4×96-well plates.

13. Centrifugal force: 590×g.

14. Temperature control accuracy: ±1°C.

15. Timer range: 0–99h59min/Run Continuously.

16. Noise level: ≤60dB(A).

17. Total power: 1300W.

18. Centrifugal imaging function: Available.Standard feature enabling observation of sample concentration without stopping operation.

※19. Cold trap: Captures 3000 ml solvent, temperature ≤-70°C, with one-touch defrost function.

IV. Configuration List

1. BIONOON VAC-NC Main Unit 1 unit

2. 184*1.5ml/2ml Rotor 1 unit
