Category | Specifications |
Brand | BIONOON |
Temperature Control Precision | ±0.1°C |
Heating Rate | 5℃/s |
Temperature Uniformity | <0.3°C (20 seconds after reaching 95°C) |
Sample Throughput | 96-well |
Price Range | Negotiable |
Instrument Type | Gradient PCR Instrument |
Origin Category | Domestic (Made in China) |
Application Fields | Medical and Health Care, Bio-industry, Pharmaceutical/Biopharmaceutical, Comprehensive |
I. Product Features

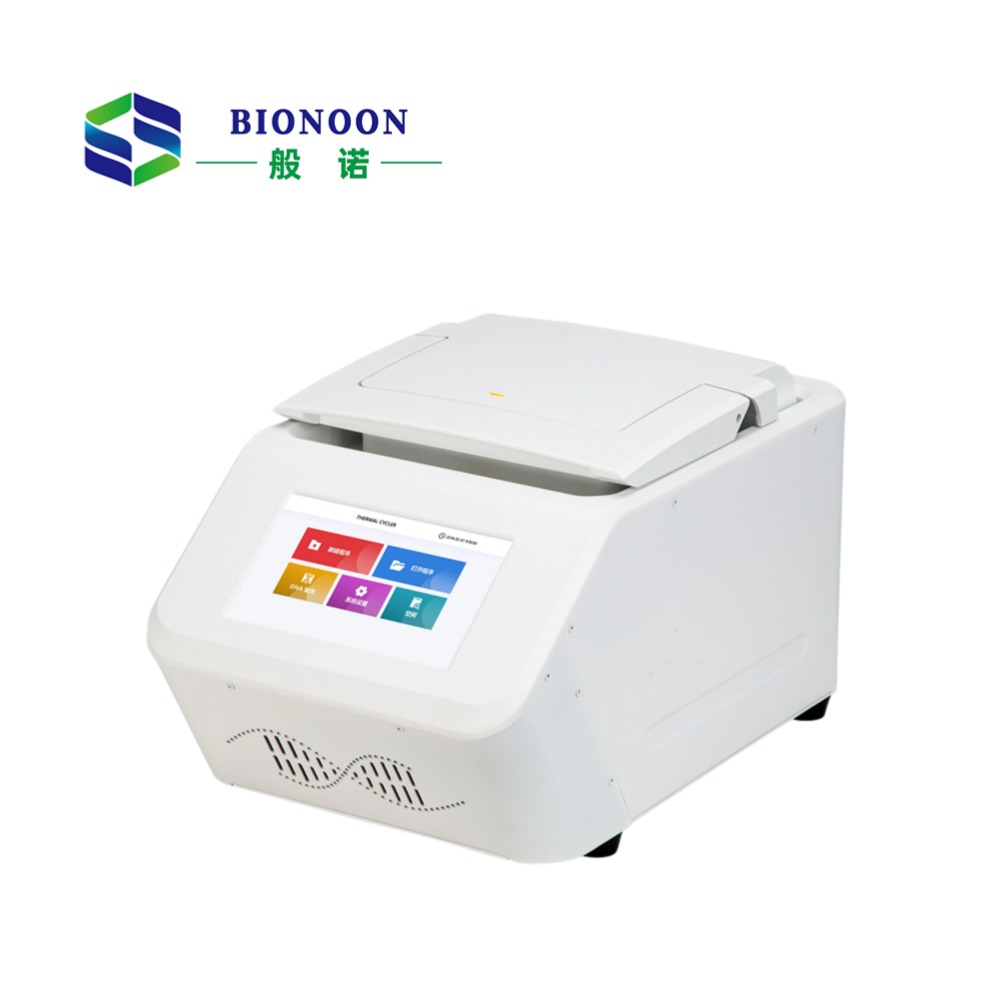

The BIONOON-2100 Gradient Gene Amplifier/PCR Instrument adopts arc-shaped bottom wells that fit closely with the bottom of PCR tubes, whereas most other PCR instruments use flat-bottom wells which leave large gaps with PCR tube bottoms.
Equipped with a 7-inch high-definition true-color touchscreen, operable even with latex gloves; real-time program display in curve graph format.
Front air intake and rear air exhaust design allows multiple PCR instruments to be placed side-by-side in close proximity, significantly saving bench space.

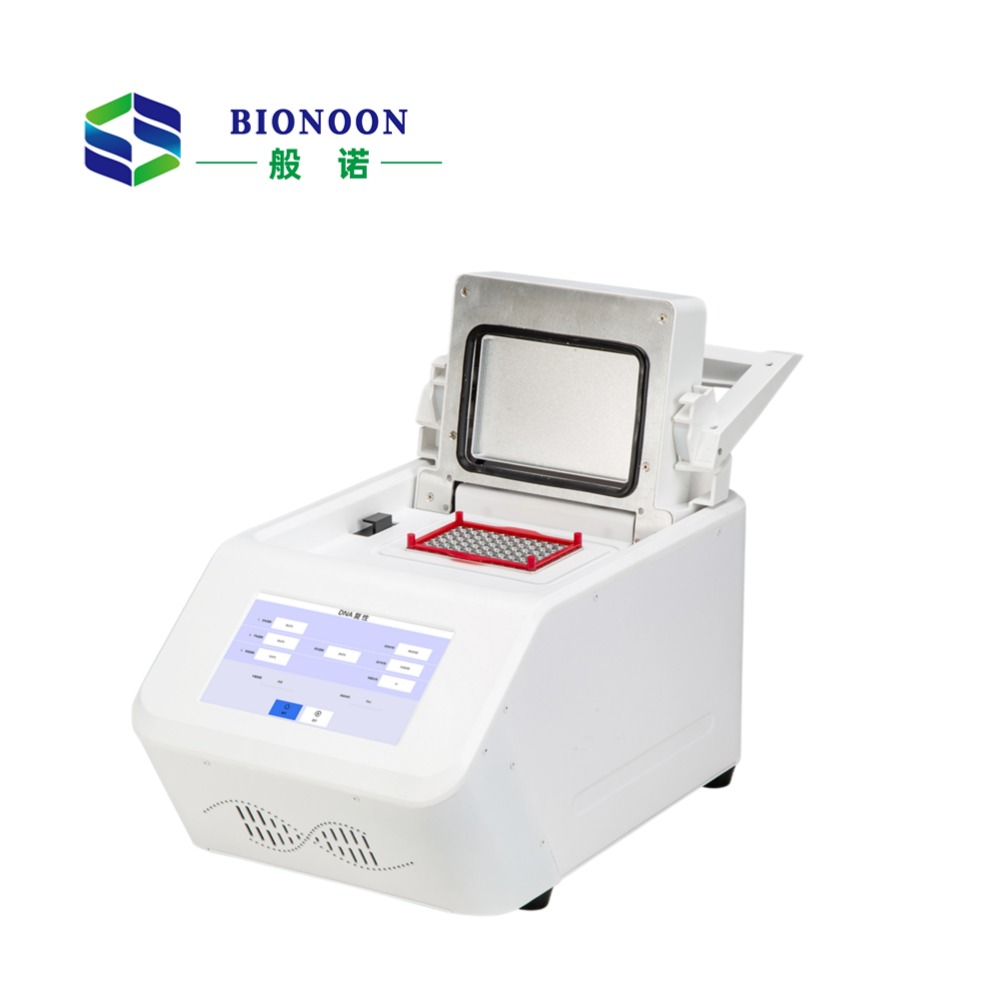

Press-on heated lid for quick and convenient operation.
User-friendly operation interface with strong program storage capacity.
Features uniform cooling function; simply input the initial temperature, target temperature, and required time to initiate cooling.
II. Technical Parameters
Instrument Type: Gradient Gene Amplifier/PCR Instrument
Heating Element: Peltier (semiconductor)
Supported 96-Module: 96-well × 0.2ml
Maximum Temperature Ramping Rate of Block: 5℃/second (both heating and cooling)
Sample Throughput & Volume: 1–96 samples / 10–80μl
Sample Plate Format: 96-well plate (non-skirted only), 8-tube strips, individual PCR tubes
Gradient Function: Available; precise PCR annealing temperature optimization via sample plate base, temperature sensor, and software control
Temperature Control Range: 0~105℃
Temperature Gradient Width: 0.1~40℃
Heated Lid Temperature Range: Up to 112℃
Heated Lid Contact Pressure: Adjustable by engineers
Temperature Accuracy: ±0.1°C
Temperature Uniformity: <0.3°C (20 seconds after reaching 95°C)
Temperature Display Resolution: 0.1℃
Display Screen: 7-inch color touchscreen; full-screen display of the entire PCR program
Applicable Experiments: Touchdown PCR and PCR amplification of fragments up to 10kb in length
Storage Capacity: Up to 15,000 programs storable in the instrument; program export/import via USB flash drive
Built-in Functions: Power failure protection and quick start
Lid Technology: New TOP-OPEN™ lid opening/closing system with overpressure prevention audio alert
Automatic Heated Lid Shutoff: Heated lid shuts off automatically when the sample stage temperature drops below the set temperature or the program ends
Appendix: Technical Parameter Table
Parameter Category
Specifications (Bionoon-2100PCR)
Optional Module | Gradient Module |
Module Type | 96-well × 0.2ml multi-functional module |
Temperature Ramping Tech | Latest-generation semiconductor heat pump technology |
LCD Display | 7-inch high-definition true-color touchscreen; real-time program display in curve graph format |
Language | Chinese-English bilingual |
USB Function | Program export/import via USB flash drive |
Communication Interface | 2 USB 2.0 ports + LAN port |
Additional In-situ Func | Available |
Air Duct Design | Front air intake & rear air exhaust (instruments can be placed closely together to save space) |
Temperature Function |
Sample Stage Temp Range | 0℃～105℃ |
Max Heating Rate | 5℃/s |
Max Cooling Rate | 5℃/s |
Sample Stage Temp Uniformity | ≤±0.1℃ |
Sample Stage Temp Accuracy | ≤±0.1℃ |
Temp Display Resolution | 0.1℃ |
Temp Control Mode | Simulated tube & sample stage dual control |
Adjustable Temp Ramping | Available |
Gradient Function |
Gradient Temp Accuracy | ≤±0.1℃ |
Gradient Temp Uniformity | ≤±0.1℃ |
Gradient Range | 30℃～105℃ |
Temp Difference Range | 1～40℃ |
Gradient Temp Point Distribution | 12 columns |
Programming Function |
Storable Programs | Up to 15,000 programs in the instrument; program export/import via USB flash drive |
Max Steps | 100 (supports multiple nested cycles) |
Max Cycles | 100 standard cycles (up to 60,000 cycles under nested cycles) |
Time Increment/Decrement | 1～120 seconds (supports Long PCR experiments) |
Temp Increment/Decrement | 0.1～10.0℃ (supports Touchdown PCR experiments) |
Auto Pause | Available |
Power Failure Protection | Available |
4℃ Holding | Unlimited holding time |
Operation Status Display | Available |
Heated Lid Function |
Heated Lid Height | Steplessly fine-adjustable (suitable for various tube and plate types) |
Heated Lid Temp | 30℃～112℃ |
Auto Heated Lid Shutoff | Activated when sample stage temperature < set temperature or program ends |
Lid Opening Method | New TOP-OPEN™ technology with overpressure prevention audio alert |
Other Performance |
Voltage Range | Universal power supply (85V – 265V, 50–60Hz) |
Max Power Consumption | 700W |
Dimensions (L×W×H) | 362×256×255mm |
Net Weight | 7.3kgs |
