Brand: BIONOON
Application Fields: Food/Agricultural Products, Chemical Industry, Bio-industry, Agriculture/Forestry/Animal Husbandry/Fishery, Pharmaceutical/Biopharmaceutical
I. Working Principle

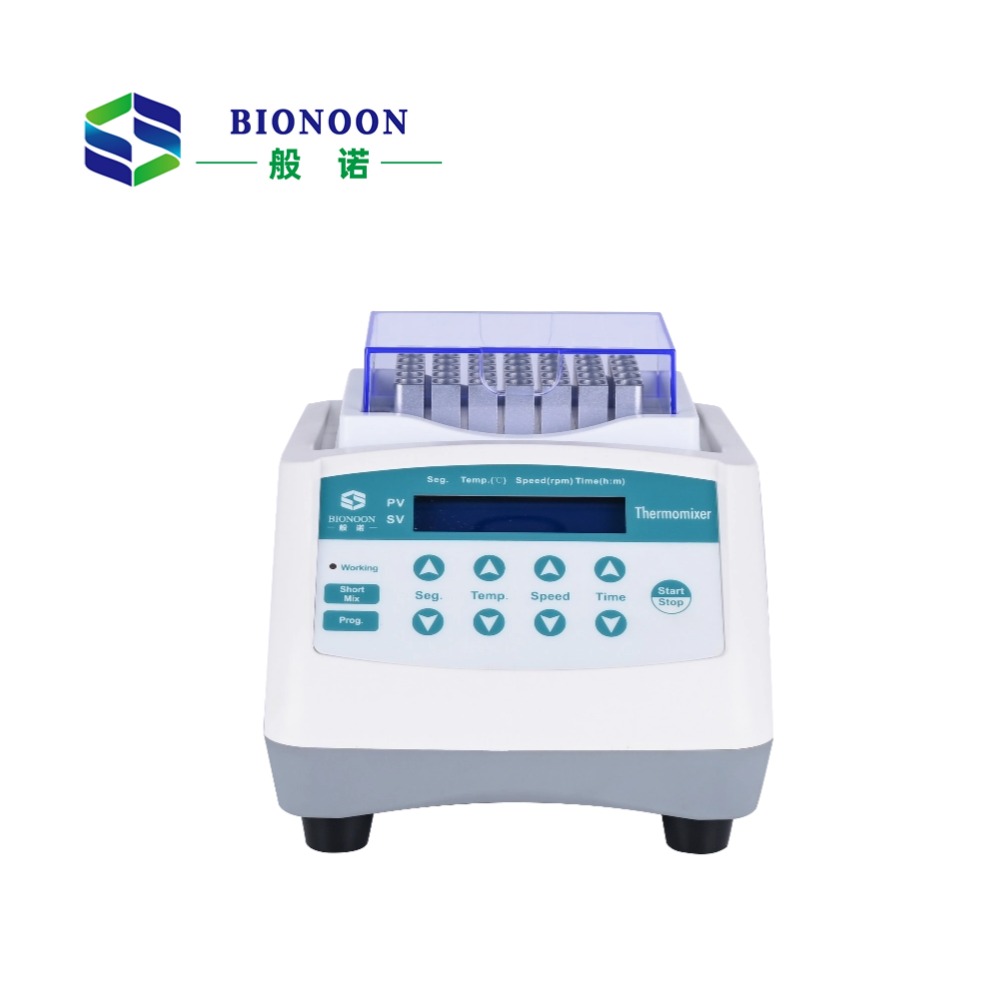

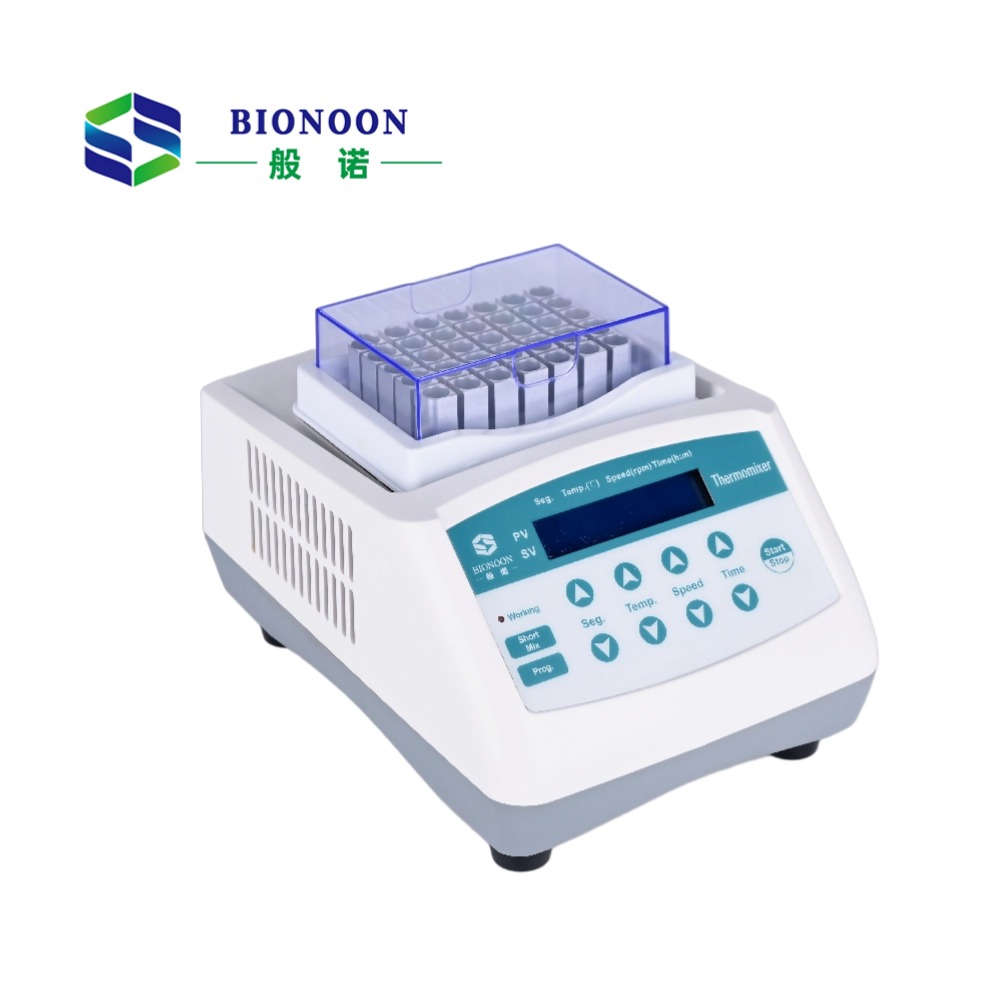

The BIONOON-100HH Thermostatic Mixer (Heating Model) integrates a DC brushless motor with microcomputer control technology to combine precise temperature control and oscillation functions. This significantly reduces experimental operation time and enhances efficiency, making it an ideal automated tool for processes such as sample incubation, catalysis, mixing, and preservation. The instrument also supports versatile applications like heating and oscillation to meet diverse user requirements.
II. Product Features
1. LCD Display: Clear liquid crystal display for intuitive parameter monitoring.
2. Vibration Isolation Technology: Ensures accurate and efficient mixing/temperature control with programmable capabilities.
3. Power Failure Recovery: Automatically resumes operation according to pre-set programs after power restoration.
4. Microprocessor Control: Provides linear temperature control, accurate oscillation speed, and minimal fluctuations.
5. Timing Function: Adjustable incubation time ranging from 0 to 100 hours.
6. Modular Design: Multiple standard sample modules available for quick replacement.
7. Temperature Calibration & Short Oscillation: Allows manual adjustment and short-duration mixing.
8. Long-Life Motor: DC brushless motor with maintenance-free operation.
9. Safety Protection: Multiple safeguards for secure operation.
10. CE Compliance: Meets EU safety standards for reliability.
III. Technical Parameters & Optional Modules
Product Model: BIONOON-100HH (Thermostatic Mixer - Heating Model)
Parameter | Specification |
Temperature Range | Room Temperature +5°C to 100°C |
Temperature Accuracy | ±0.3°C |
Temperature Stability@40°C | ±0.3°C |
Temperature Stability@100°C | ±0.3°C |
Temperature Display Resolution | 0.1°C |
Oscillation Speed Range | 200–2000 rpm |
Oscillation Amplitude & Mode | 2mm Horizontal Rotation |
Time Setting | 0–99h59min |
Heating Rate | <15 minutes (from 25°C to 100°C) |
Power Consumption | 150W |
Dimensions (W×D×H) | 300×220×170 mm |
Net Weight | 7.9 kg |
Optional Modules | Refer to replaceable module specifications. |
Key Terminology Notes:
1. Heating Model: Explicitly denotes the instrument’s primary heating capability, consistent with BIONOON’s product naming conventions (e.g., "Heating" in BIONOON-100HH vs. "Cooling" in BIONOON-100HC).
2. Horizontal Rotation: Adopted for oscillation mode to reflect circular motion around a horizontal axis, aligning with BIONOON’s technical documentation (e.g., "horizontal rotation" in BIONOON-100HH product pages).
3. Temperature Range: Translated as "Room Temperature +5°C to 100°C" to accurately convey the operational range, with "Room Temperature" defined per EU standards (15–25°C) .
4. CE Compliance: Retains "CE" as an EU-mandated safety mark, ensuring regulatory clarity for international markets.
