Brand: BIONOON
Application Fields: Food/Agricultural Products, Chemical Industry, Bio-industry, Agriculture/Forestry/Animal Husbandry/Fishery, Pharmaceutical/Biopharmaceutical
I. Working Principle
The BIONOON-100HC Thermostatic Mixer (Cooling Model) combines a DC brushless motor with microcomputer control technology to integrate temperature control and oscillation functions. This significantly reduces experimental operation time and improves efficiency, making it an ideal automated tool for processes such as sample incubation, catalysis, mixing, and preservation. The instrument also supports heating and oscillation for versatile applications, meeting diverse user requirements.
II. Product Features
LCD Display: Clear liquid crystal display for intuitive parameter monitoring.
Vibration Isolation Technology: Ensures precise and efficient mixing/temperature control with programmable capabilities.
Power Failure Recovery: Automatically resumes operation according to pre-set programs after power restoration.
Microprocessor Control: Provides linear temperature control, accurate oscillation speed, and minimal fluctuations.
Timing Function: Adjustable incubation time ranging from 0 to 100 hours.
Modular Design: Multiple standard sample modules available for quick replacement.
Temperature Calibration & Short Oscillation: Allows manual adjustment and short-duration mixing.
Long-Life Motor: DC brushless motor with maintenance-free operation.
Safety Protection: Multiple safeguards for secure operation.
CE Compliance: Meets EU safety standards for reliability.
III. Technical Parameters & Optional Modules

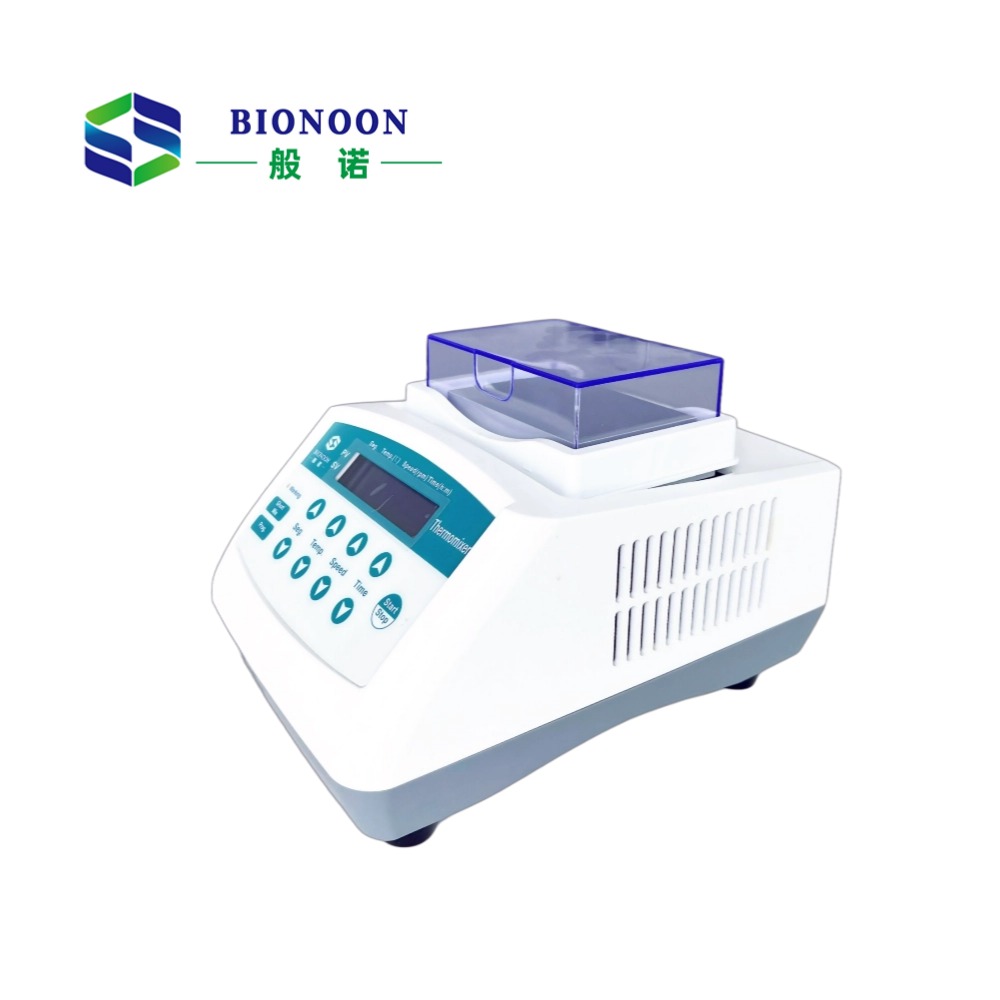

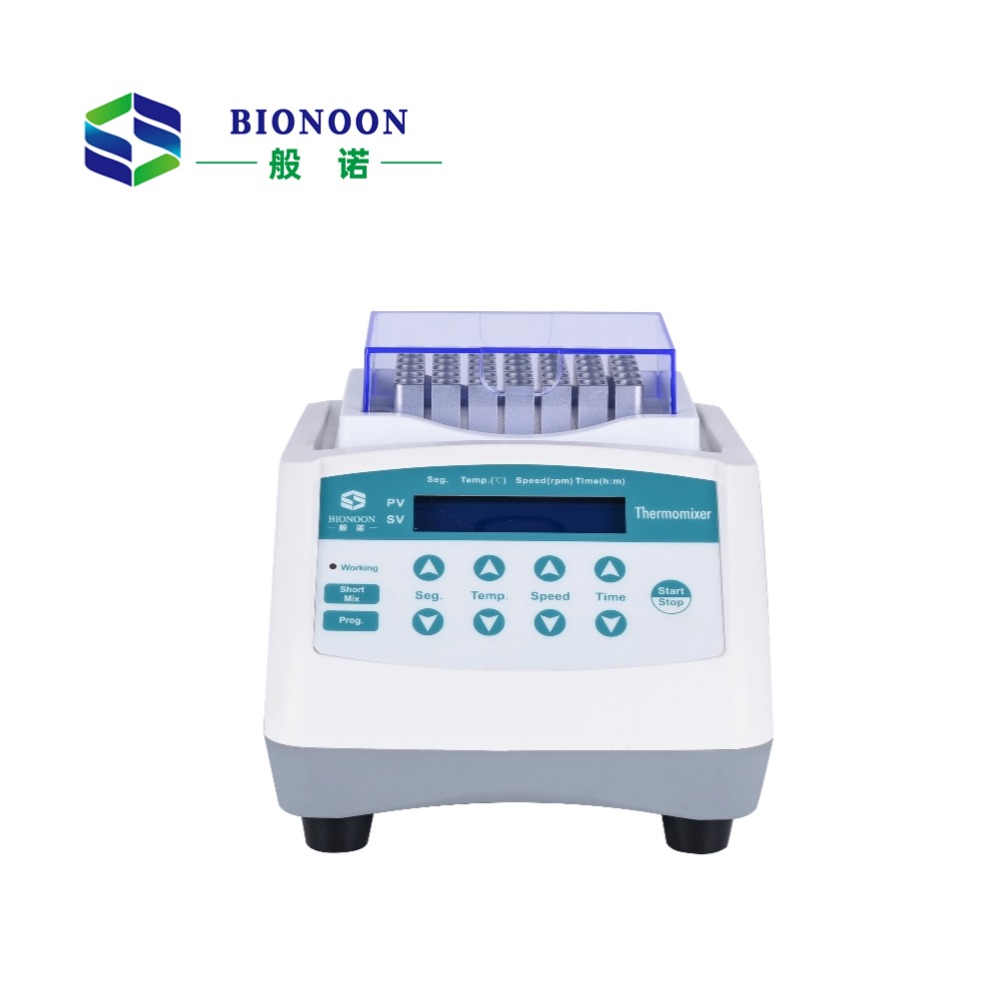

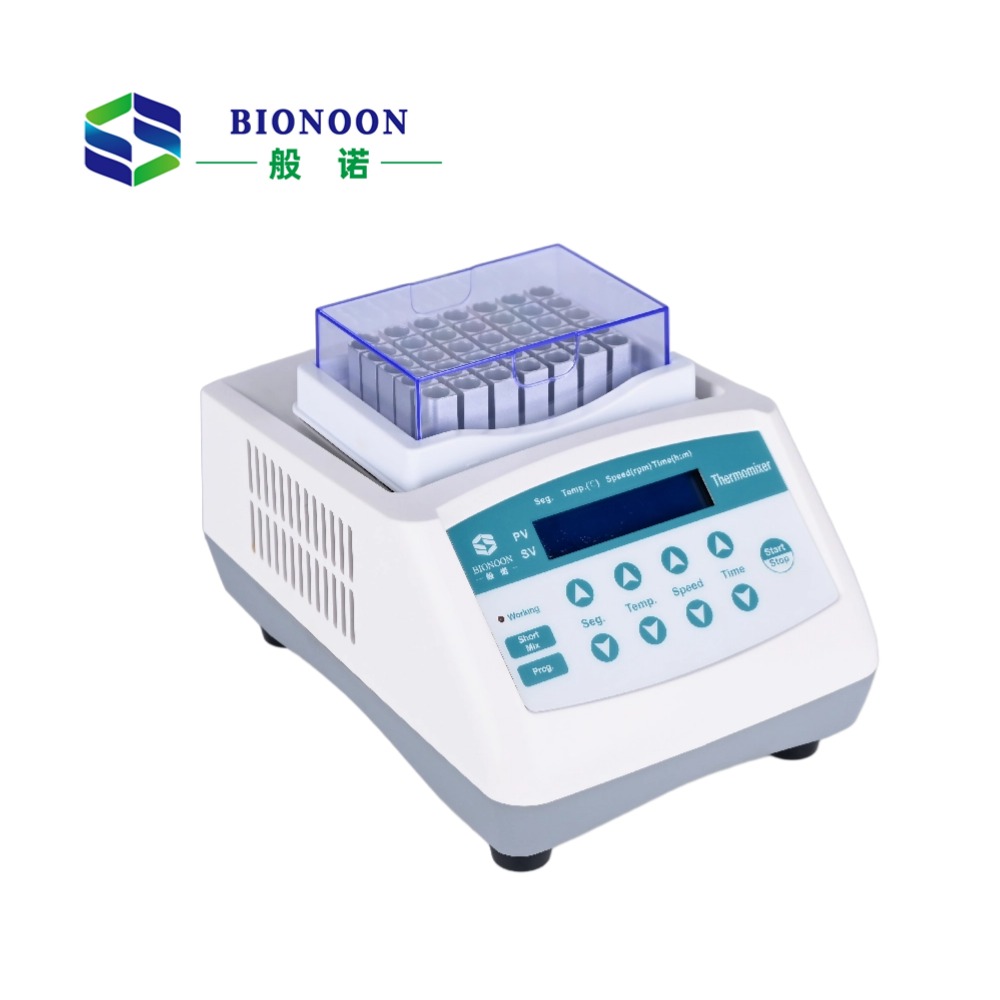

Product Model: BIONOON-100HC (Thermostatic Mixer - Cooling Model)
Parameter | Specification |
Temperature Range | 0°C–100°C |
Temperature Accuracy | ±0.3°C |
Temperature Stability@40°C | ±0.3°C |
Temperature Stability@100°C | ±0.3°C |
Temperature Display Resolution | 0.1°C |
Oscillation Speed Range | 200–1500 rpm |
Oscillation Amplitude & Mode | 2mm Horizontal Orbital |
Time Setting | 0–99h59min |
Heating Rate | <15 minutes (from 25°C to 100°C) |
Cooling Time | ≤25 minutes (from room temperature to 20°C below RT) (tested at 30°C ambient) |
Cooling Rate | ≥7°C/min (from 100°C to 20°C); ≥1.2°C/min (from RT to 20°C below RT) |
Power Consumption | 150W |
Dimensions (W×D×H) | 300×220×170 mm |
Net Weight | 8.8 kg |
Optional Modules | Refer to replaceable module specifications. |
Key Terminology Notes
1. Cooling Model: Explicitly denotes the refrigerated capability, aligning with industry standards (e.g., "Cooling" in ThermoShaker R product naming).
2. Horizontal Orbital: Adopted for oscillation mode to reflect the circular motion, consistent with technical documentation (e.g., "horizontal orbital" in thermostatic mixer specifications).
3. Cooling Rate/Time: Translated based on engineering conventions, with "Cooling Rate" emphasizing speed (°C/min) and "Cooling Time" referring to duration.
4. CE Compliance: Retains "CE" as an EU-mandated safety mark, supplemented with the French acronym "Conformité Européenne" for clarity.
