Multi-Point Vortex Shaker

Model: Vortex Multi
Item NO.: BN51001

Category :

Multi-Position Vortex Shaker

+86 18621179858 , +86 15000983478

echo@bionoon3.com

E-mail

Related Products

Online Message

hiddenValue

PRODUCT DETAILS

Category	Specifications
Brand	BIONOON
Application Fields	Food/Agricultural Products, Chemical Industry, Bio-industry, Agriculture/Forestry/Animal Husbandry/Fishery, Pharmaceutical/Biopharmaceutical
Rotation Speed	300~3000rpm
Control Method	4.3-inch touch screen
Operating Modes	Constant Speed Mode, Pulse Mode
Orbit Diameter	3mm horizontal orbit
Time Setting	1min~99h59min
Load Capacity	5kg

I.Product Description

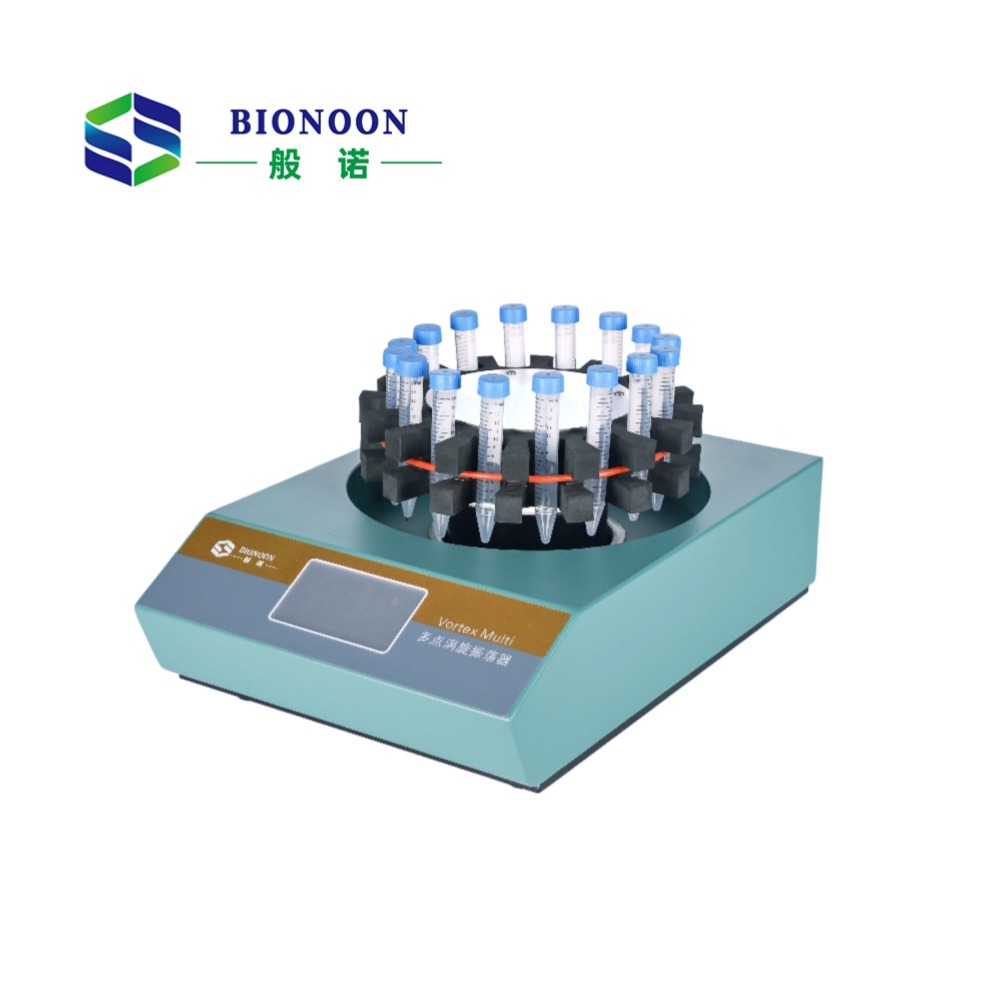

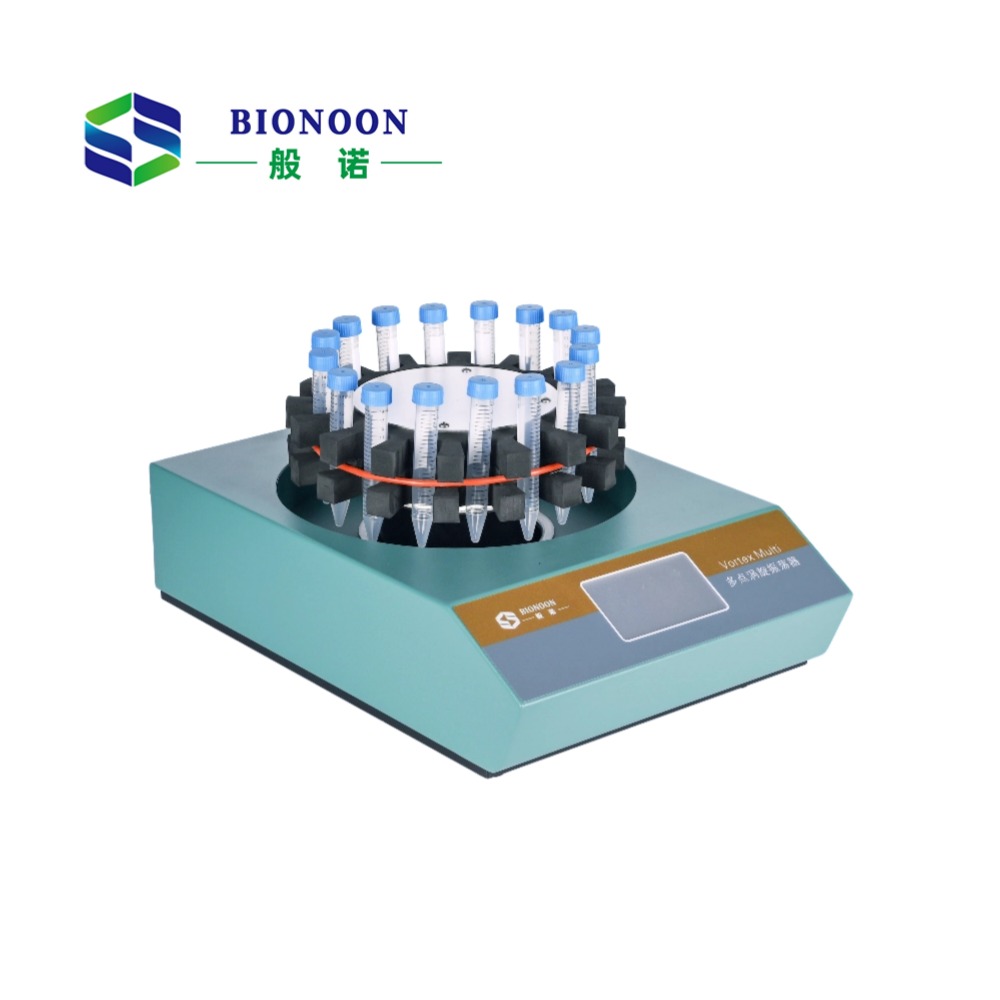

The Vortex Multi Multi-Point Vortex Shaker, also known as Multi-Tube Vortex Shaker or Multi-Point Vortex Mixer, is mainly used for vortex mixing of samples to achieve full mixing effect. It can be equipped with 2ml~50ml centrifuge tubes.

II. Working Principle

It is a multi-purpose constant-temperature shaker that combines a DC brushless motor with PID intelligent temperature control technology. Through PID fuzzy control technology, it can accurately ensure temperature control accuracy and automatically adjust the heating rate to save waiting time, so as to meet the reaction processes such as sample incubation, catalysis, mixing, and preservation.

III. Product Features

1. The Vortex Multi Multi-Point Vortex Shaker adopts a color touch screen, making operation more intuitive.

2. Equipped with a timing function; the mixing time can be set arbitrarily within the range of 1min~99h59min.

3. Digital display function; the display screen can show the remaining time and support the timing function.

4. Driven by a DC brushless motor, it features precise speed, long service life, and maintenance-free operation.

5. Large sample processing capacity: it can mix up to 16 samples of 50ml or 28 samples of 15ml at one time.

6. Optional operating modes (Constant Speed Mode, Pulse Mode) for processing different types of samples.

7. Accurate oscillation speed with small fluctuation.

8. Built-in lighting for clear observation of samples.

IV. Technical Parameters

Parameter Type	Technical Parameter Value
Rotation Speed	300~3000rpm
Control Method	4.3-inch touch screen
Operating Modes	Constant Speed Mode, Pulse Mode
Orbit Diameter	3mm horizontal orbit
Time Setting	1min~99h59min
Load Capacity	5kg
Input Power	120W long-life brushless motor
Overall Dimensions (mm)	500×298×126
Weight (kg)	18
