Category | Specifications |
Brand | BIONOON |
Price Range | Negotiable |
Final Discharge Particle Size | 0.01-0.5mm |
Applicable Samples | Multiple sample types |
Instrument Type | Homogenizer/Crusher |
Origin Category | Domestic (Made in China) |
Application Fields | Food/Agricultural Products, Chemical Industry, Bio-industry, Pharmaceutical/Biopharmaceutical |
Operating Frequency | 19-25KHZ |
Display Method | 8.8-inch touch screen display |
Data Storage | 100 groups |
Display Content | Time, power, temperature, real-time frequency, etc. |
Temperature Range | 0~99℃ |
Alarm Functions | Over-temperature, over-time, over-load |
Timing | 0-999 minutes |
Duty Cycle | 0.1~99.9% |
I. Working Principle
The ultrasonic homogenizer all-in-one machine is a multi-functional, multi-purpose instrument that uses intense ultrasound to generate cavitation effect in liquids for ultrasonic treatment of substances. It can be used for disrupting animal/plant tissues, cells, bacteria, and spore strains. Meanwhile, it can be applied for emulsification, separation, dispersion, homogenization, extraction, degassing, cleaning, and accelerating chemical reactions—such as dispersing nanomaterials (e.g., carbon nanotubes, selenium graphite), homogenizing soil, rock samples, non-ferrous metals, rare earths, and other particles for disintegration, emulsification, homogenization, and disruption.
Ⅱ. Application Scope
1. Scientific Research: Lysis and disruption of bacteria, viruses, spores, and other cellular structures; extraction of animal/plant DNA and proteins; DNA/RNA shearing; chromatin immunoprecipitation (ChIP) technology.
2. Material Chemistry: Dispersion and disruption of nanomaterials (e.g., carbon nanotubes, graphene); disintegration, emulsification, homogenization, and disruption of homogenized soil, rock samples, non-ferrous metal particles, and rare earth particles.
3. Other Fields: It can also be used for dispersion and extraction of Chinese herbal medicines, as well as dispersion, homogenization, and reaction acceleration of other samples. Additionally, it is suitable for sample pretreatment in chemical engineering, medicine, archaeology, geology, marine science, and other fields.
Ⅲ. Product Features
1. Capable of disrupting Escherichia coli, yeast, bacteria, cells, etc.
2. Equipped with fully digital integrated circuits, ensuring stable and consistent amplitude output.
3. All-in-one design: Integrates ultrasonic power supply and sound insulation box, saving space.
4. Automatic lifting stage for easy sample loading and unloading.
5. Built-in lighting and temperature measurement device.
6. Capable of 24-hour continuous operation, with high stability and reliability.
Ⅳ. Technical Parameters
1. Operating Frequency (KHZ): 19-25KHZ (automatic tracking).
2. Display Method: 8.8-inch touch screen display.
3. Data Storage: 100 groups.
4. Display Content: Time, power, temperature, real-time frequency, etc.
5. Temperature Range: 0~99℃.
6. Alarm Functions: Over-temperature, over-time, over-load.
7. Timing: 0-999 minutes.
8. Duty Cycle: 0.1~99.9%.
9. Working Modes: Intermittent, continuous.
V. Model, Power, and Processing Capacity
Model | Power | Optional Horns | Processing Capacity |
BIONOON-650 | 650W | Included ∅6mm (optional ∅2, 3, 6, 10mm) | 0.2~500ml |
BIONOON-950 | 950W | Included ∅6mm (optional ∅2, 3, 6, 10, 15mm) | 0.2~600ml |
BIONOON-1200 | 1200W | Included ∅6mm (optional ∅2, 3, 6, 10, 15, 20mm) | 0.2~1000ml |
BIONOON-1800 | 1800W | Included ∅6mm (optional ∅2, 3, 6, 10, 15, 20, 25mm) | 0.2~1200ml |
Ⅵ. Relationship Between Optional Horns and Processing Capacity
Optional Horn (∅mm) | Processing Capacity (ml) |
∅2 | 0.2-5 |
∅3 | 5-10 |
∅6 | 10-100 |
∅10 | 100-300 |
∅15 | 300-600 |
∅20 | 500-1000 |
∅25 | 500-1500 |

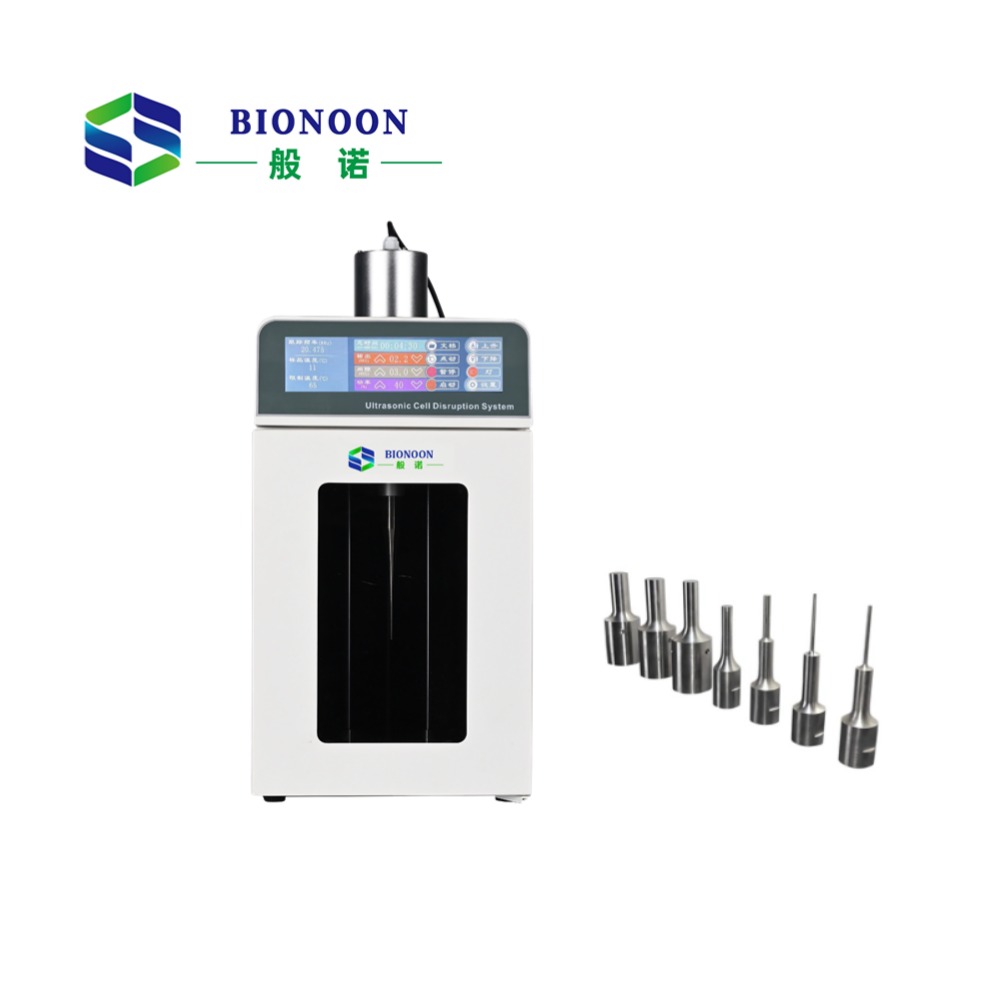

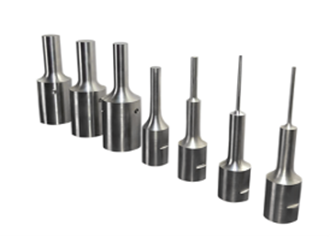

Optional Horn

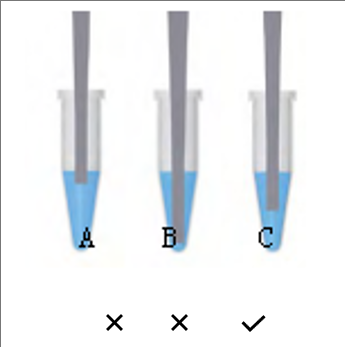

Ⅶ. Experimental Precautions
A. Prompt indicating insufficient liquid, sample foaming, or presence of foam.
B. Inability of samples to circulate effectively, leading to ineffective sample treatment.
C. Indication of correct settings, which will yield good results.
