Category | Specifications |
Brand | BIONOON |
Water Inlet/Outlet | Available |
Sound Reduction Cover | Available |
Adjustable Time | 1-99 minutes |
Adjustable Temperature | Room temperature ~ 80℃ |
Adjustable Power | 40-100% |
Ultrasonic Power | 180W |
Ultrasonic Frequency | 40KHZ |
Capacity | 6L |
Instrument Type | General-Purpose |
Price Range | Negotiable |
Origin Category | Domestic (Made in China) |
Application Fields | Food/Agricultural Products, Chemical Industry, Bio-industry, Pharmaceutical/Biopharmaceutical |
Mesh Rack | Available |
Heating Power | 400W |

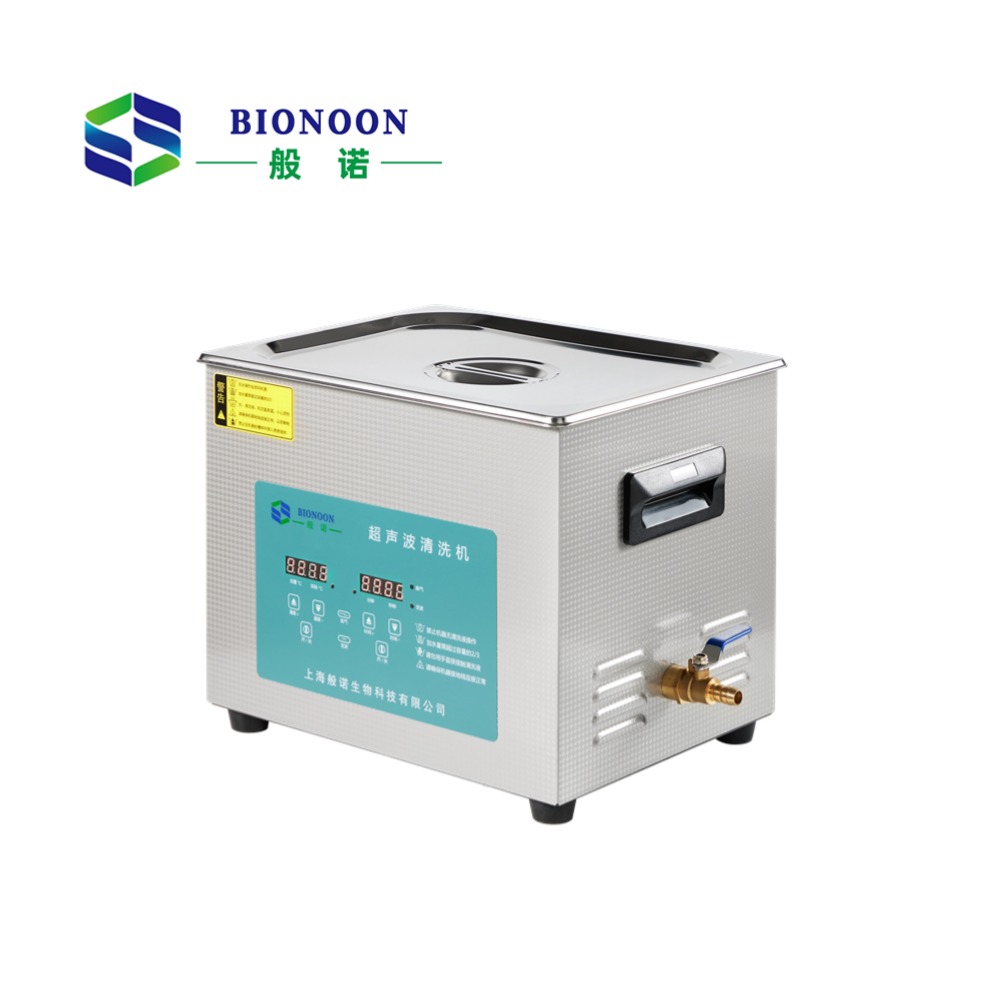

The DTD series ultrasonic cleaner is a new generation of Sino-foreign cooperative ultrasonic product developed by our company. It adopts and absorbs advanced process technology, and is produced with high-quality international components. Compared with other products, it features advanced concepts, intelligence, stepless power adjustment, high emission power, automatic time/temperature control, and sophisticated temperature measurement design. It also has an elegant appearance, easy operation, low noise, high efficiency, stability, and reliability. In addition to its high-efficiency and high-quality cleaning function, this cleaner also has multiple functions such as "degassing", "extraction", "emulsification", "accelerated dissolution", "crushing", and "dispersion".
The product is widely used in electronics, electrical machinery, electroplating, hydraulics, pneumatics, aerospace, shipping, automotive, machinery, bearings, optics, medicine, medical care, chemistry, reagents, food, as well as universities, research institutes, and other units that need to clean various items. We also undertake the design and manufacture of various non-standard size cleaners according to customer needs.
I. Working Principle
It mainly converts the sound energy of the high-power ultrasonic frequency source into mechanical vibration through a transducer, and radiates the ultrasonic waves into the cleaning solution in the tank through the wall of the cleaning tank. Under the radiation of ultrasonic waves, the micro-bubbles in the liquid in the tank can maintain vibration under the action of sound waves. This vibration destroys the adsorption between dirt and the surface of the cleaned parts, causes fatigue damage to the dirt layer to peel off, and the vibration of gas-type bubbles scrubs the solid surface.
II. Features
1. The DTD series cleaner adopts an LED human-machine interface with digital display, which is user-friendly, clear, intuitive, and convenient.
2. It has functions of timing, ultrasonic power adjustment, and time adjustment.
3. It has a heating function, and the temperature and time can be set independently.
4. Ordinary tap water can be used to achieve cleaning effects.
5. Digital LCD display for easy operation.
6. Full stainless steel shell, sound reduction cover, and inner tank.
7. Equipped with a water outlet.
8. A variety of models are available, and customers can choose cleaners of different capacities according to needs.
III. Technical Parameters
Model | Capacity (L) | Frequency (KHZ) | Power (W) | Power Adjustment (%) | Heating Power (W) | Adjustable Temperature (℃) | Adjustable Time (min) | Mesh Rack | Sound Reduction Cover | Water Outlet |
SB-3200DTD | 6 | 40 | 180 | 40-100 | 400 | Room temperature - 80 | 1-99 | Available | Available | Available |
SB-5200DTD | 10 | 40 | 300 | 40-100 | 800 | Room temperature - 80 | 1-99 | Available | Available | Available |
SB-4200DTD | 15 | 40 | 400 | 40-100 | 800 | Room temperature - 80 | 1-99 | Available | Available | Available |
SB25-12DTD | 22.5 | 40 | 600 | 40-100 | 1000 | Room temperature - 80 | 1-99 | Available | Available | Available |
SB-800DTD | 30 | 40 | 800 | 40-100 | 1000 | Room temperature - 80 | 1-99 | Available | Available | Available |
