Category | Specifications |
Brand | BIONOON |
Batch Grinding Capacity | 0.2~50ml |
Output Particle Size | ≤ 3μm |
Input Particle Size | 0.1-30mm |
Price Range | Negotiable |
Final Discharge Particle Size | 0.01-0.5mm |
Applicable Samples | Multiple sample types |
Instrument Type | Grinding Mill |
Origin Category | Domestic (Made in China) |
Application Fields | Environmental Protection, Food/Agricultural Products, Bio-industry, Pharmaceutical/Biopharmaceutical, Comprehensive |
Sample Processing Capacity | 96×(0.2-0.5mL) / 48×2mL / 24×(5-10)mL / 12×15mL / 4×25mL / 2×50mL |
Grinding Methods | Dry grinding, wet grinding, ultra-low temperature grinding |
Number of Grinding Platforms | ≥ 2 |
Vibration Frequency Setting | 0-70Hz, 0-2100 rpm |
Fixture Stroke | 40mm (vertical) |
Grinding Time Setting | 0 seconds - 99 minutes |
Typical Grinding Time | 15 seconds - 2 minutes |
Noise Level | < 50dB |
I. Application Scenarios
1. Suitable for grinding and crushing various plant tissues, including roots, stems, leaves, flowers, fruits, seeds, etc.
2. Suitable for grinding and crushing various animal tissues, including brain, heart, lung, stomach, liver, thymus, kidney, intestine, lymph nodes, muscle, bone, etc.
3. Suitable for grinding and crushing samples such as bacteria, yeast, etc.
4. Suitable for grinding and crushing food, pharmaceuticals, and tablets for component analysis and testing.
5. Suitable for grinding and crushing samples such as oil shale, coke, coal, glass, minerals, ores, etc.
6. Suitable for grinding and crushing plastics and polymers, including PE, PS, textiles, resins, etc.
II. Product Features
1. High Sample Processing Capacity with Excellent Results
Efficient operation completes grinding of 24~192×2mL samples within approximately 30 seconds. It saves time and effort, ensuring minimal batch-to-batch and intra-batch variations. Extracted proteins exhibit higher activity, and nucleic acid fragments remain longer.
2. No Cross-Contamination
The grinding jar remains fully enclosed during operation, enabling the use of disposable centrifuge tubes and beads. Samples are entirely retained within the jar, preventing cross-contamination between samples and external contamination.
3. User-Friendly Operation
Equipped with a humanized interface and built-in program controller, it allows precise adjustment of parameters such as grinding time and rotor vibration frequency (touch screen optional).
4. Convenient Low-Temperature Operation
For cryogenic grinding, the sample-loaded adapter can be cooled in liquid nitrogen for 1-2 minutes. After removal, it is quickly fixed onto the main unit for immediate grinding without re-freezing, saving liquid nitrogen. (Air cooler available as an optional accessory.)
5. Superior Repeatability
Identical grinding results are guaranteed for the same tissue sample using consistent program settings. The short processing time ensures minimal sample temperature increase.
III. Technical Parameters

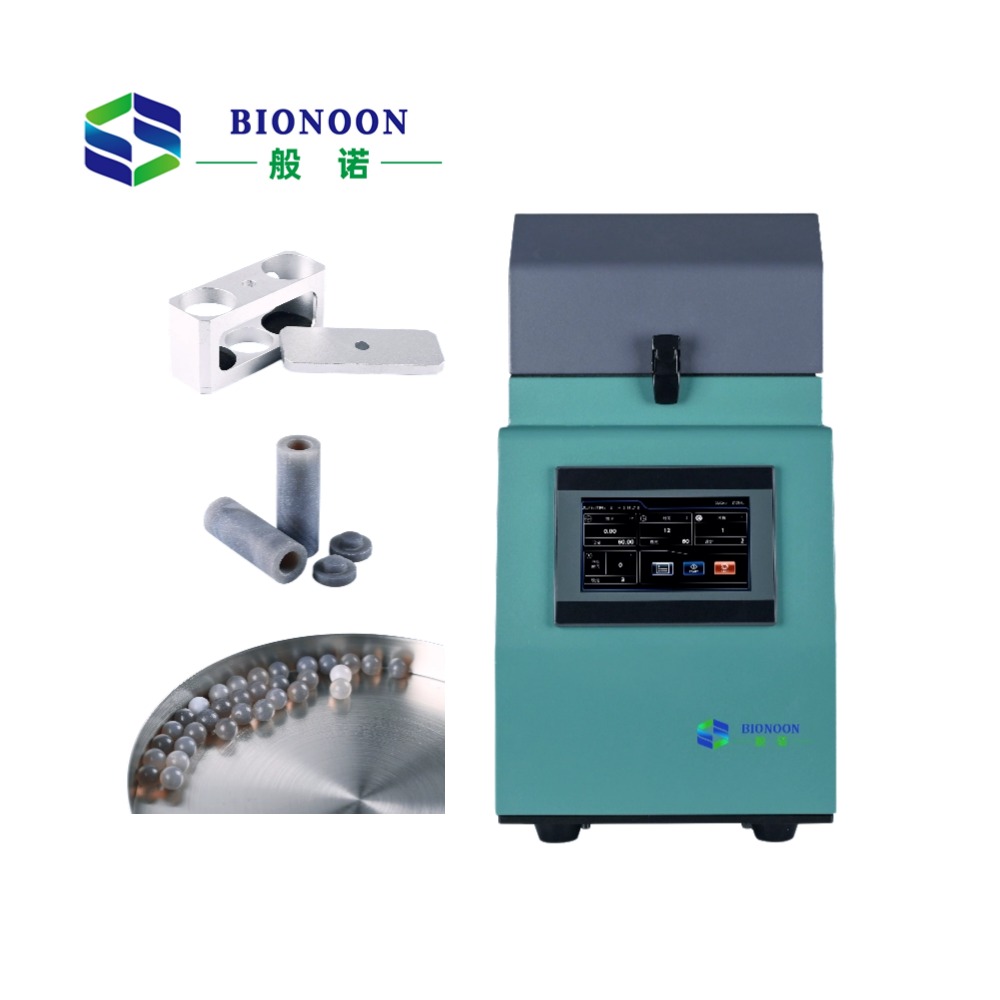

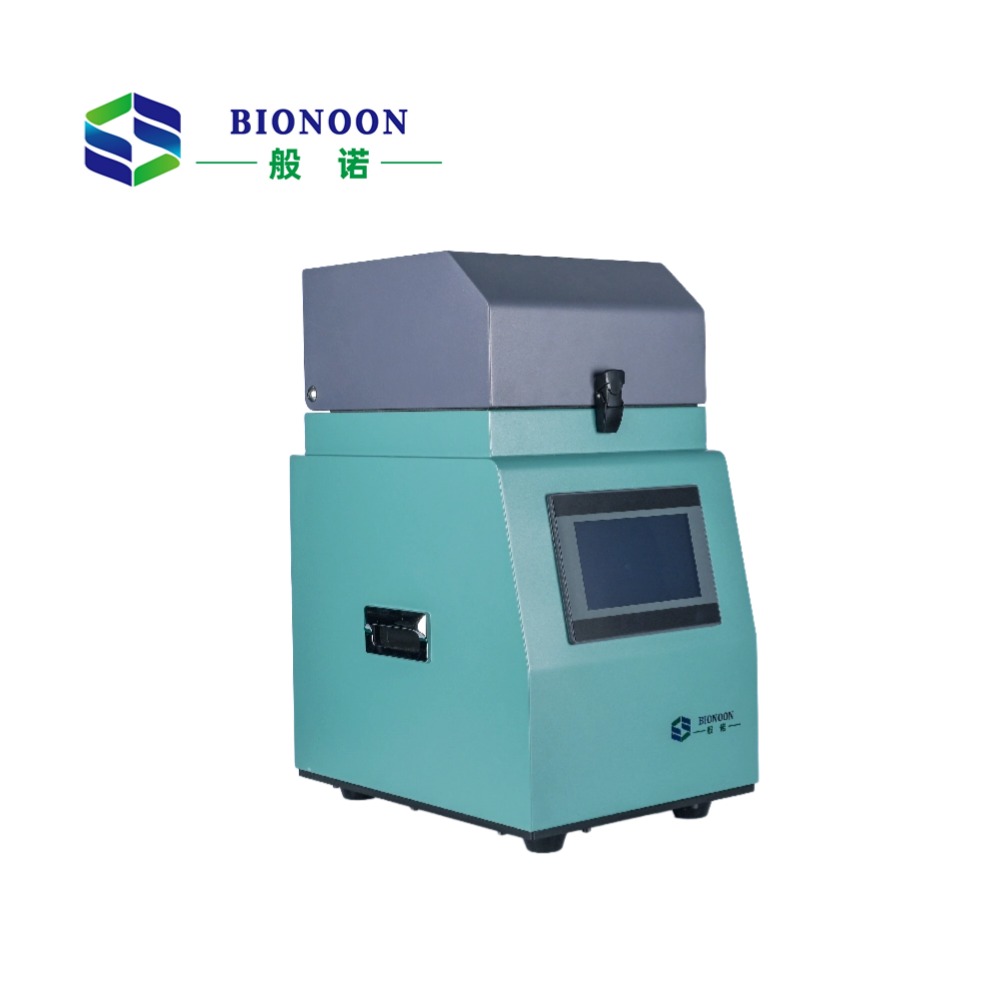

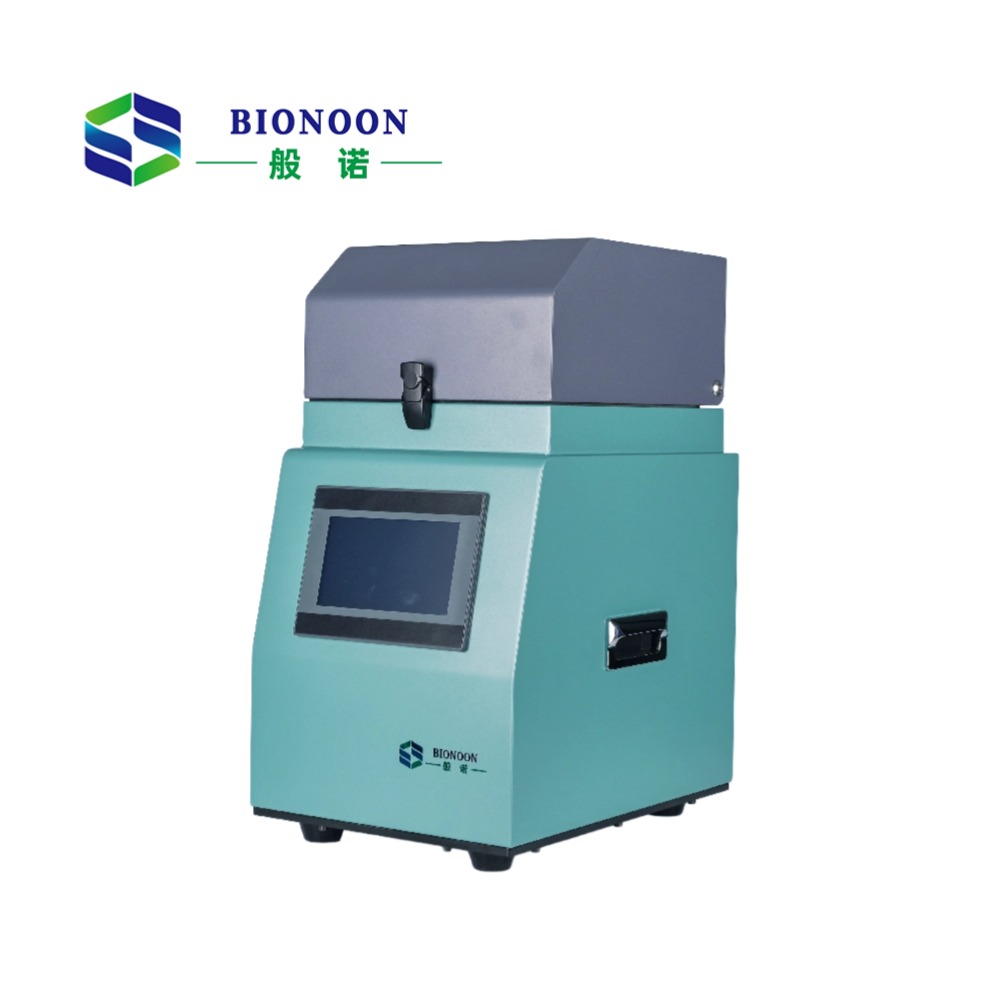

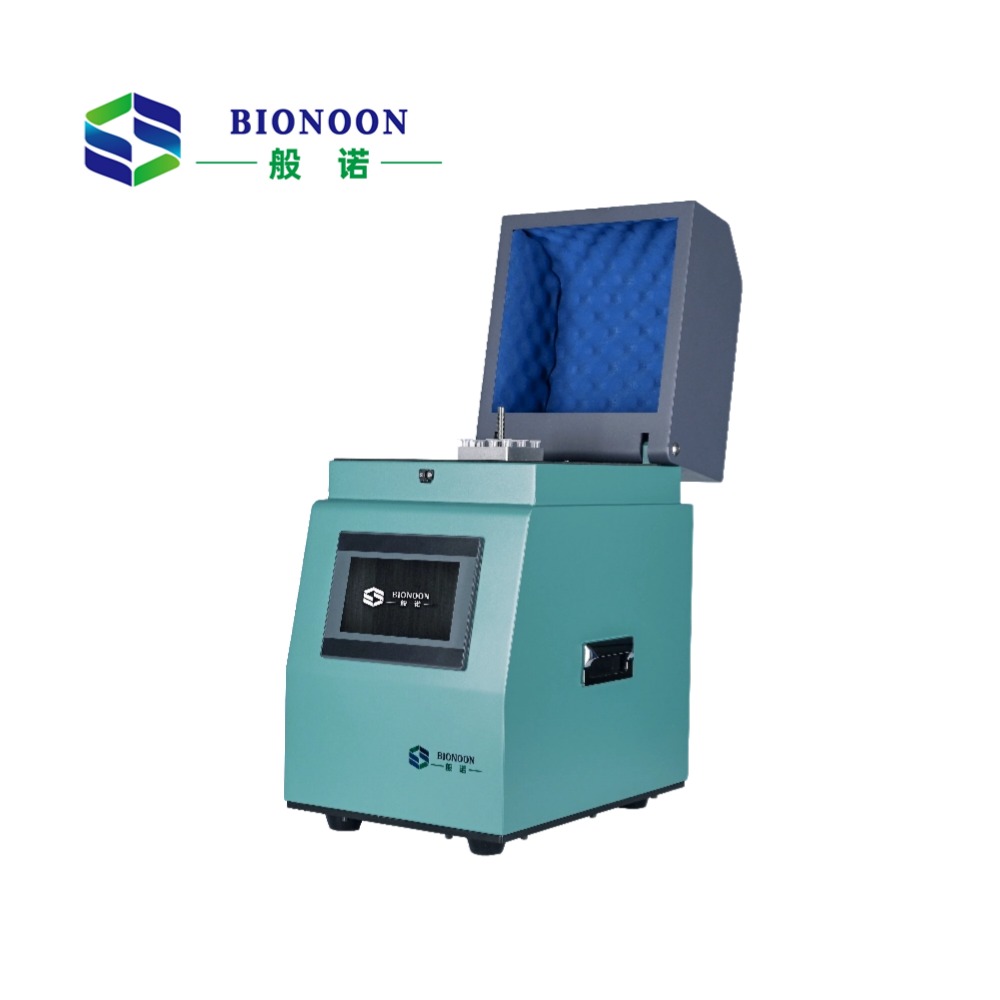

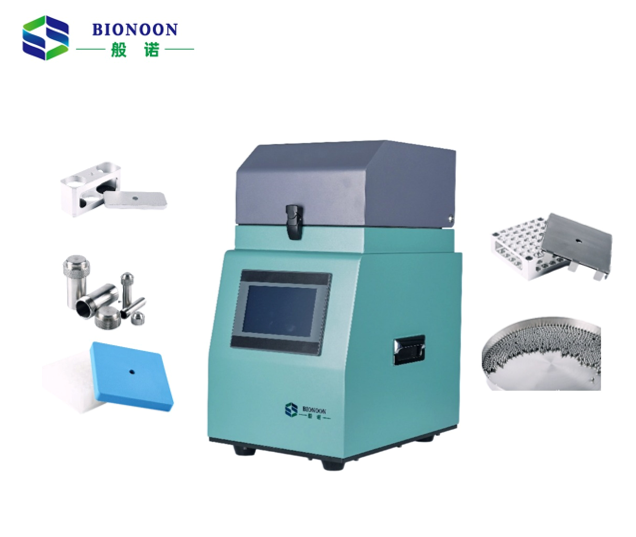

1. Product Model: BIONOON-48 High-Throughput Tissue Grinding Mill
2. Main Purpose: Used for crushing, mixing, homogenization, and cell disruption; applied to biological sample pretreatment and high-throughput automated rapid genome extraction.
3. Sample Characteristics: Hard, medium-hard, soft, brittle, elastic, fibrous.

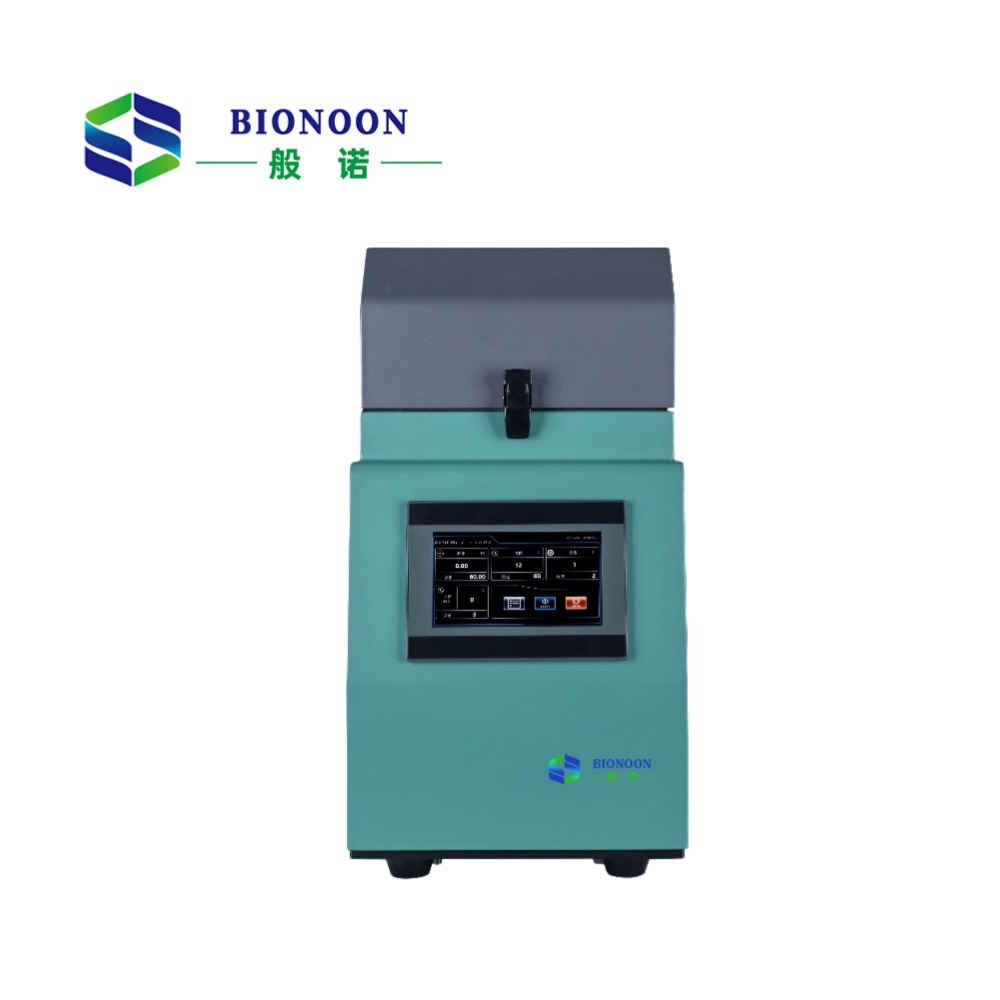

4. LCD Display: Microcomputer-controlled 7-inch touch screen for intuitive operation and real-time status monitoring.
5. Crushing Principle: Impact and friction forces generated by vertical and radial vibrations.
6. Sample Processing Capacity: 96×(0.2-0.5mL) / 48×2mL / 24×(5-10)mL / 12×15mL / 4×25mL / 2×50mL.

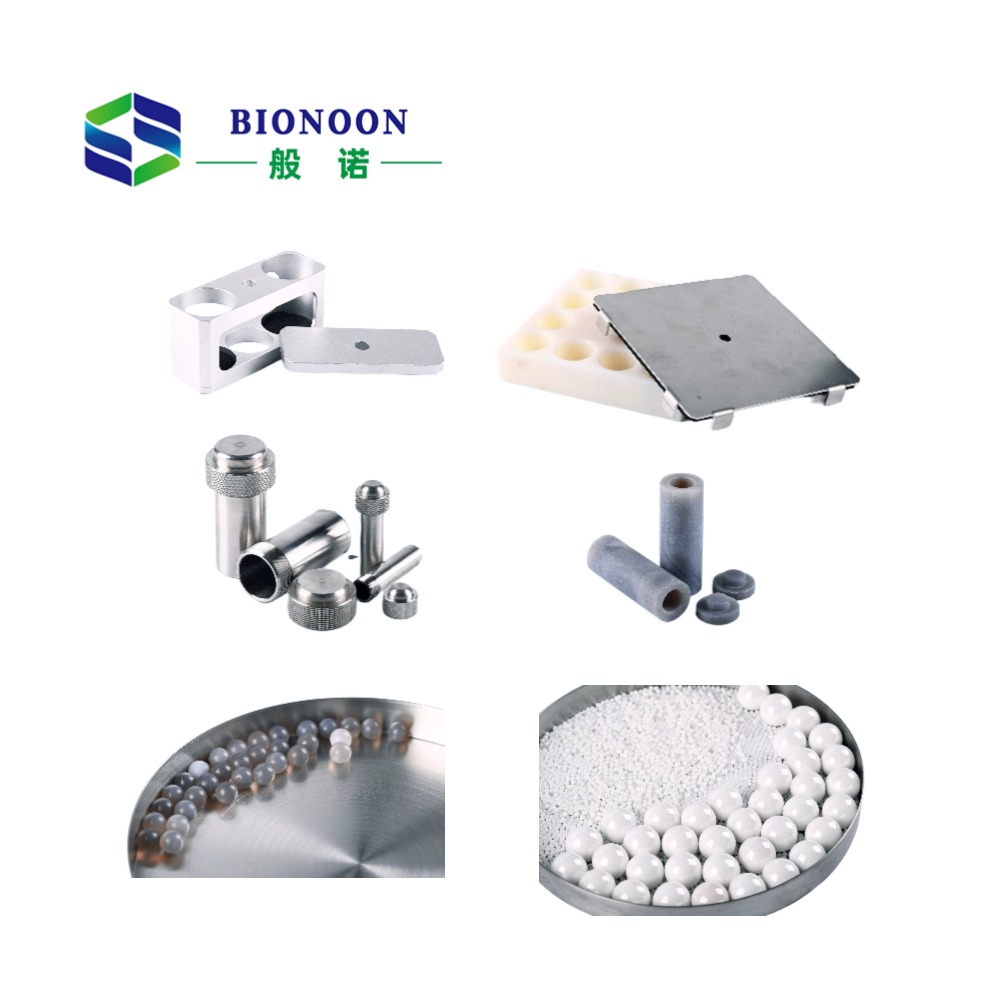

7. Grinding Jar Material: Hard steel, stainless steel, tungsten carbide, agate, zirconia, PTFE, aluminum alloy; customizable for any sample material.
8. Grinding Ball Material/Diameter: Hard steel, stainless steel, tungsten carbide, agate, zirconia, chromium steel, quartz sand / 0.1-30mm (customizable per experimental needs).
9. Grinding Methods: Wet, dry, and ultra-low temperature grinding.
10. Number of Grinding Platforms: Accommodates ≥ 2 grinding jars.
11. Inlet/Outlet Sizes: Inlet size adjustable per jar; final outlet particle size ≤ 3μm.
12. Vibration Frequency Setting: 0-70Hz, 0-2100 rpm (customizable).
13. Liquid Nitrogen Pre-Freezing: Available.
14. Grinding Time Setting: 0 seconds - 99 minutes (user-adjustable).
15. Typical Grinding Time: 15 seconds - 2 minutes.
16. Acceleration/Deceleration: Reaches max/min speed within 2 seconds.
17. Noise Level: < 50dB.
18. Dimensions: 380×340×350mm.
19. Safety Features: Safety lock for full protection during operation; automatic centering fastening device.
20. Protection Class: IP 30.
21. Power Supply: 220V/50Hz; 350W.
