Category | Specifications |
Brand | Bionoon |
Condensing Temperature | ≤ -65℃ (no-load); Optional ≤ -90℃ (no-load) |
Water Catching Capacity | 6kg per 24 hours |
Vacuum Degree | ＜ 10 Pa |
Freeze-Drying Area | 0.36㎡ |
Price Range | Negotiable |
Instrument Type | Others |
Application Scope | Laboratory |
Origin Category | Domestic (Made in China) |
Application Fields | Medical and Health Care, Food/Agricultural Products, Chemical Industry, Bio-industry, Pharmaceutical/Biopharmaceutical |
Freeze-Drying Layers | 4 layers |
Sample Tray Spacing | 70mm |
Vacuum Pumping Rate | ≥ 120 L/min |
Total Power | 1100 W |
Overall Dimensions of Main Unit (L×W×H) | 500 × 380 × 520 mm |
Defrost Mode | Automatic Defrosting |
Drainage Mode | Automatic Drainage |
Product Description
The BIONOON-freezon plus Cabin-Type Vacuum Freeze-Dryer adopts a cabin-type design—its freeze-drying area is larger than that of ordinary desktop freeze-dryers. It is equipped with a PC-material single-door design, which facilitates sample retrieval and real-time observation of the freeze-drying process.
The BIONOON-freezon plus is suitable for the freeze-drying of conventional bulk materials (liquid, paste, solid). It is mainly used in laboratories or for small-batch production, and can meet the conventional freeze-drying needs of most laboratories. Its application fields cover medicine, pharmaceuticals, biological research, chemical engineering, and food industry. Items processed by its freeze-drying technology are easy to store long-term, and can recover to the pre-freeze-dried state (with original biochemical properties retained) after adding water.
Ⅰ Application Scope
The cabin-type vacuum freeze-dryer is widely used in medicine, pharmaceuticals, biological research, chemical engineering, and food industries. Items processed by freeze-drying are easy to store for a long time; after adding water, they can return to the state before freeze-drying and retain their original biochemical properties.
Ⅱ Features
1. Automatic Control System
1. Adopts a cabin-type design (different from traditional cylindrical design): larger freeze-drying area, with a snap-on single door for easy sample retrieval.
2. PC-material vacuum cover: corrosion-resistant and resistant to organic solvents.
3. Equipped with a 7-inch LCD touch screen and self-developed BIONOON operating system, with sensitive touch response.
4. High automation level and easy operation: supports one-click start/stop, automatic defrosting, and automatic drainage.
5. Power failure protection function: automatically releases vacuum after power failure to prevent vacuum pump oil backflow and protect sample safety.
6. Imported pressure relief valve for automatic vacuum release; compatible with filters to ensure sample cleanliness.
7. Built-in cold trap vacuum protection system: protection parameters can be set to extend the service life of the vacuum system.
8. Standard authority management function to ensure the safety of experimental data.
9. Intelligent data recording system: allows query of historical curves and records, and supports data export via USB or WIFI.
10. Upgradable system maintenance reminder function: vacuum pump oil change reminder, radiator cleaning reminder, instrument operation time recording, voltage deviation reminder, etc.
11. Adopts PLC control system: provides system customization services, and the software system is upgradable.
12. Supports WIFI and IoT (Internet of Things) technology: a mobile APP can be downloaded for remote real-time monitoring and equipment operation (optional).
13. Batch instrument management function: supports cloud storage of data for multiple instruments (optional).
14. Automatic freeze-drying end detection system: facilitates real-time mastery of freeze-drying progress (optional).
2. Refrigerating System
1. Built-in 304 stainless steel condenser tube: displayed temperature matches actual temperature, ensuring better water catching performance.
2. Adopts hybrid refrigeration technology: lower and more stable temperature.
3. Equipped with an imported refrigeration compressor.
3. Vacuum System

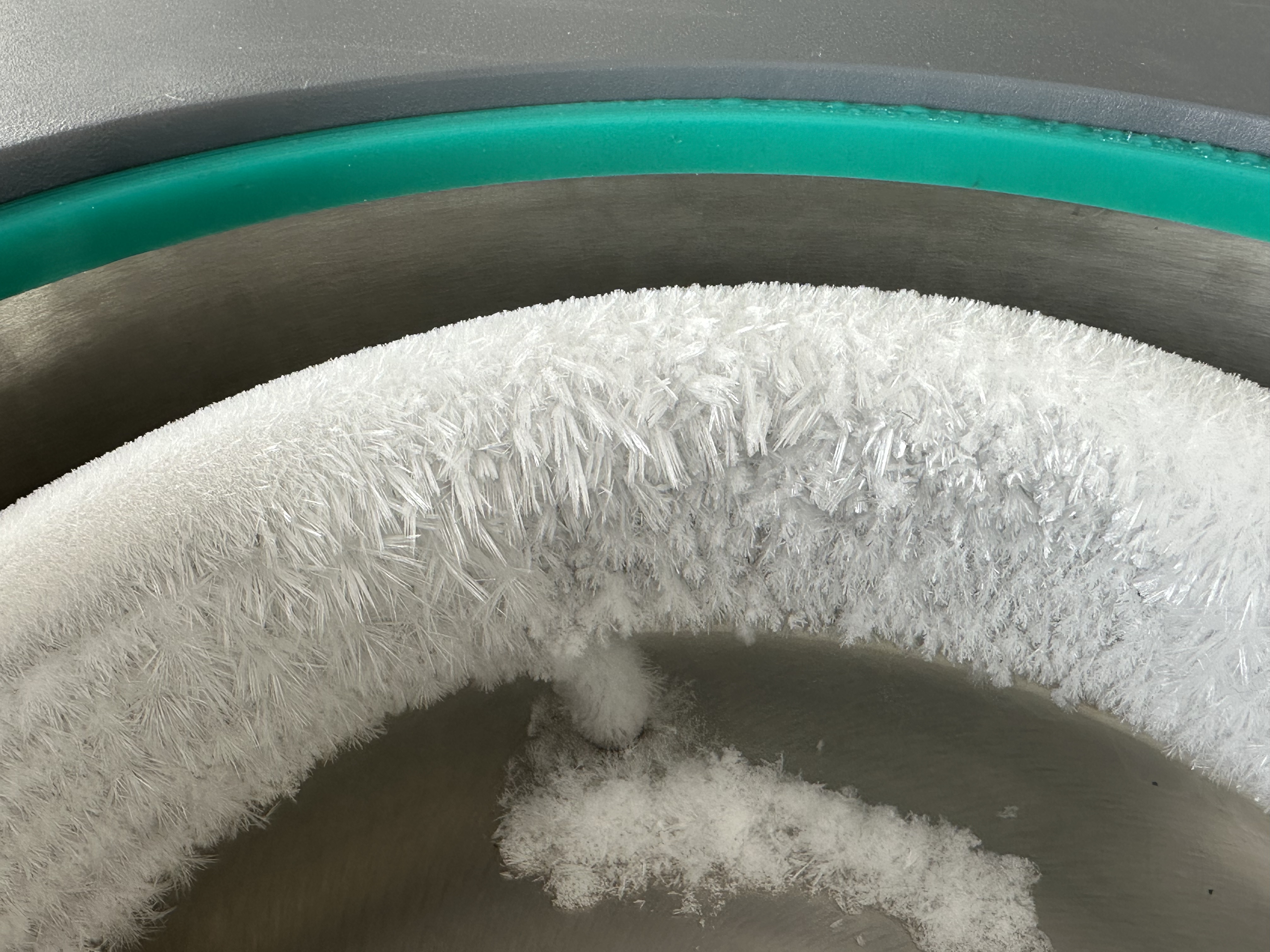

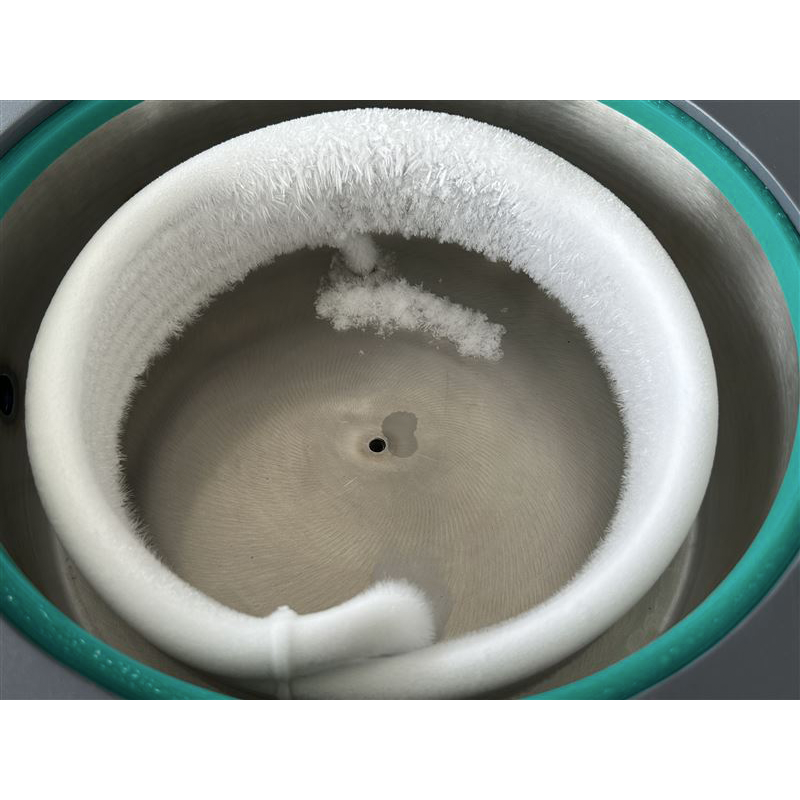

1. 30cm large-diameter integrally formed cold trap: thick, durable, and with better airtightness.
2. Built-in high-precision vacuum sensor: accurately displays vacuum degree.
3. Optional high-quality domestic or imported vacuum pumps to meet different customer needs.
Ⅲ Technical Parameters
1. Freeze-Drying Area: 0.36㎡
2. Freeze-Drying Layers: 4 layers
3. Freeze-Drying Area per Layer: 0.09㎡
4. Sample Tray Spacing: 70mm
5. Cold Trap Temperature: ≤ -65℃ (no-load), optional ≤ -90℃ (no-load)
6. Maximum Water Condensing Capacity & Efficiency: 6kg, 6kg per 24 hours
7. Vacuum Pumping Rate: ≥ 120 L/min
8. Ultimate Vacuum Degree: ＜ 10 Pa
9. Total Power: 1100 W
10. Overall Dimensions of Main Unit (L×W×H): 500 × 380 × 520 mm
11. Defrost Mode: Automatic Defrosting
12. Drainage Mode: Automatic Drainage
