Category | Specifications |
Brand | Bionoon |
Temperature Control Precision | ±1℃ |
Temperature Range | -80℃ |
Price Range | Negotiable |
Instrument Type | Ultra-Low Temperature Cold Trap (for Vacuum Centrifugal Concentrators) |
Origin Category | Domestic (Made in China) |
Application Fields | Environmental Protection, Food/Agricultural Products, Chemical Industry, Bio-industry, Pharmaceutical/Biopharmaceutical |
Cold Trap Chamber Material | 304 Stainless Steel |
Display Screen | 4.3-inch PLC-Controlled Touch Screen |
I. Product Description

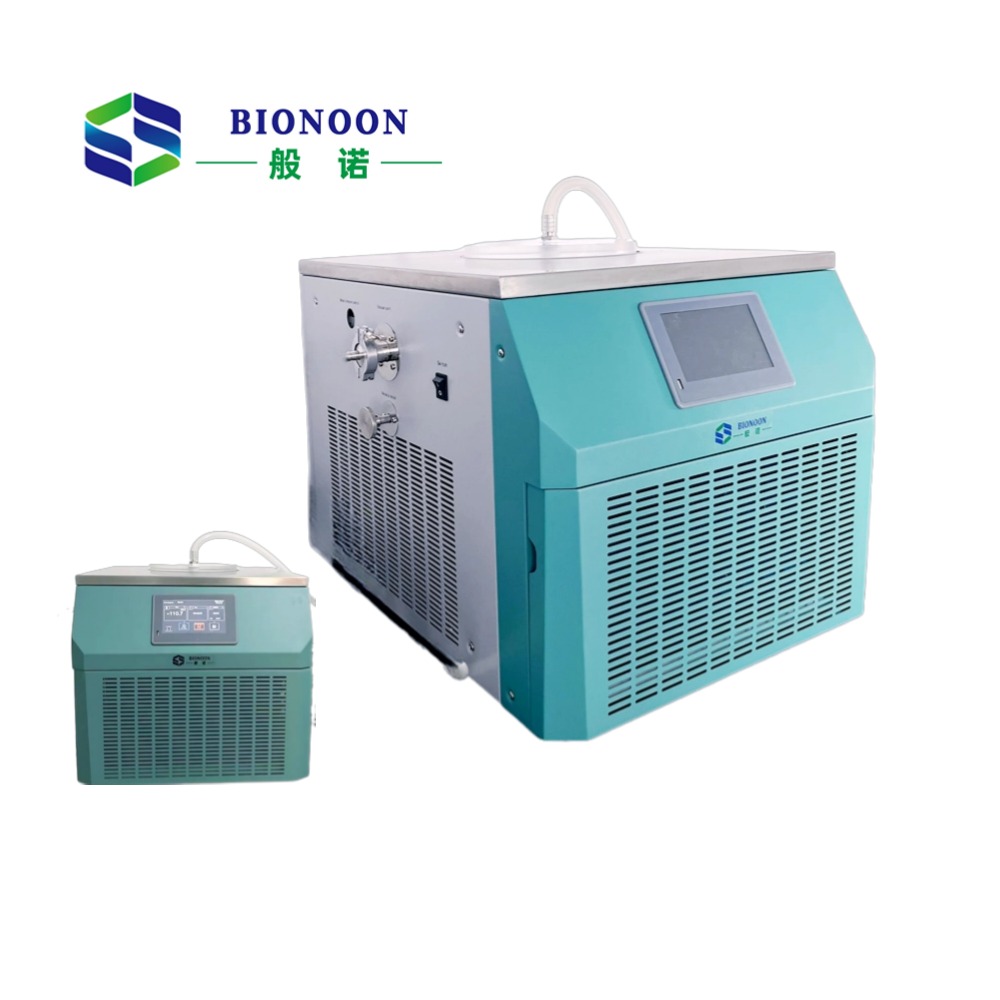

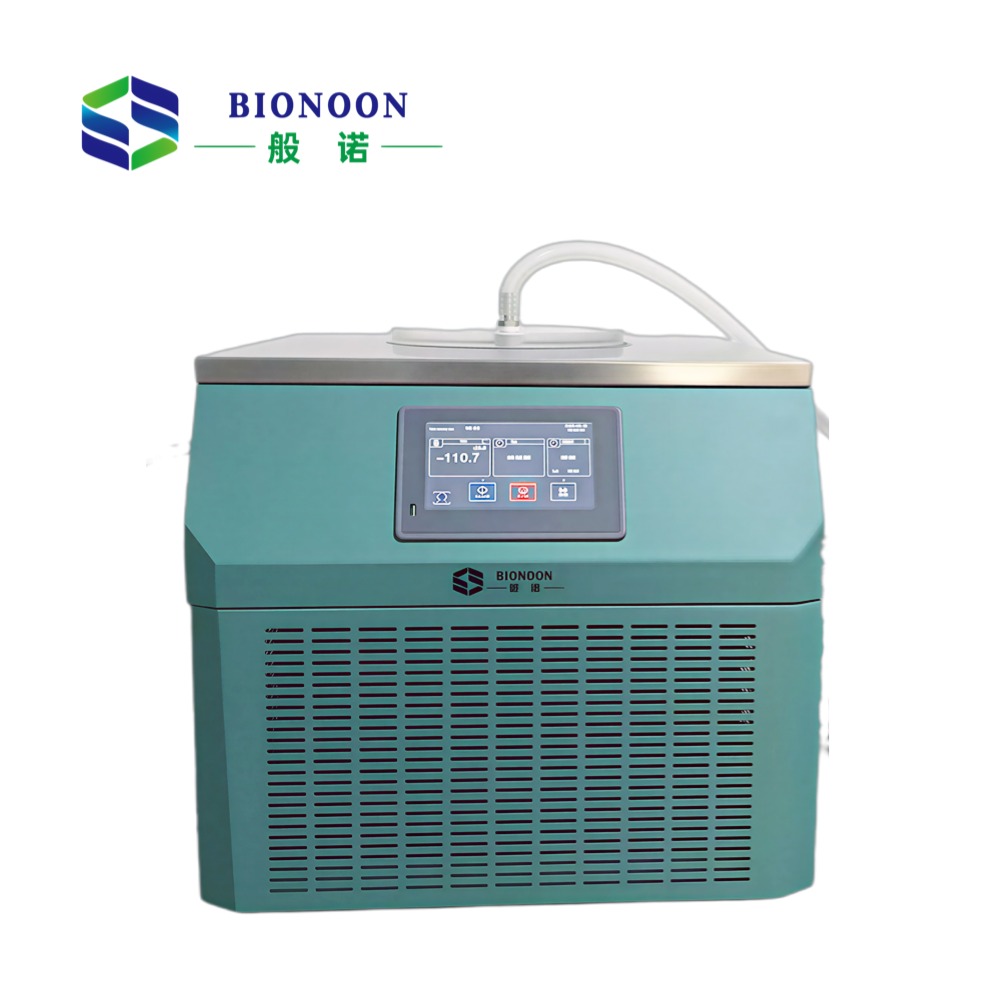

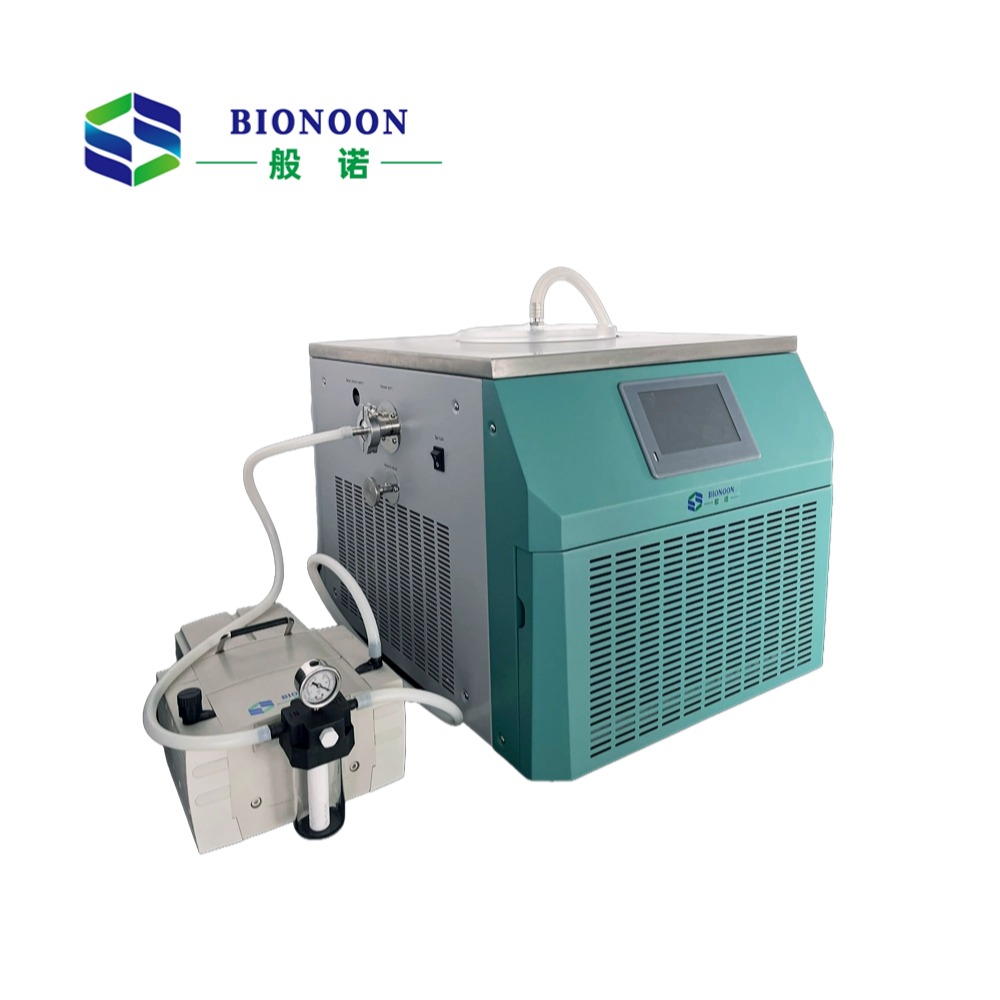

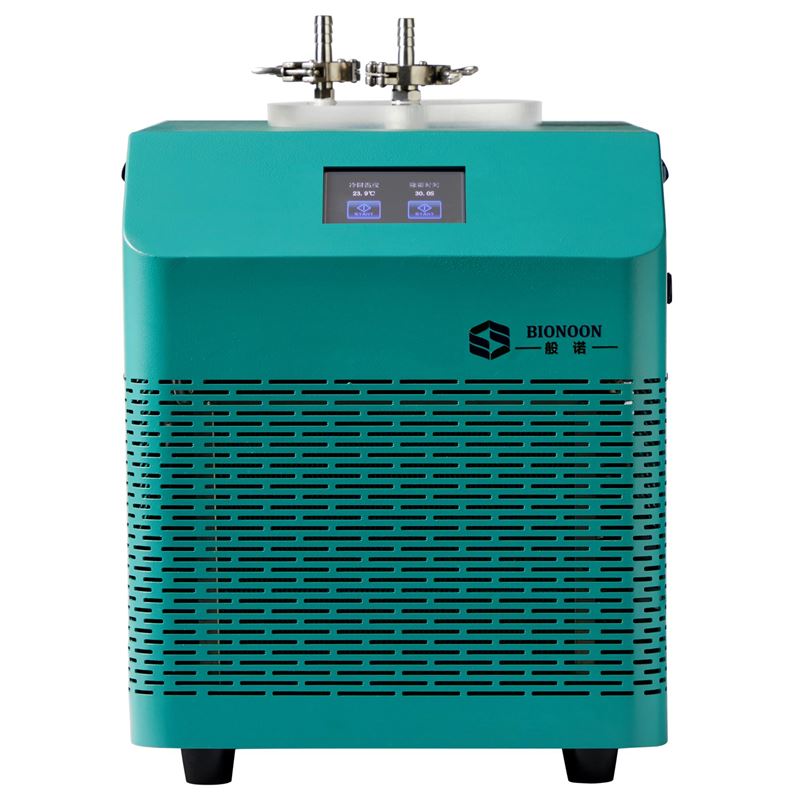

This ultra-low temperature cold trap is a supporting device specially developed by Shanghai Bionoon Biotechnology Co., Ltd. for Bionoon vacuum centrifugal concentrators. After years of market verification, it has undergone iterative upgrades based on the old-generation cold trap to meet customer needs. As a 2nd-generation upgraded model, it features higher intelligence, simpler operation, better refrigeration effect, and enhanced solvent trapping capacity. Equipped with a touch screen, it supports one-click operation (including one-click defrosting), making it an essential solvent trapping device for sample concentration and drying processes.
II. Working Principle
The BIONOON-80D6 -80℃ Ultra-Low Temperature Cold Trap from Shanghai Bionoon is a new type of high-efficiency solvent recovery device. It is used to condense solvent vapor and recover solvents, especially organic solvents. The cold trap can significantly improve the efficiency of the vacuum concentration system: the reduction of vapor increases the vacuum degree of the system, thereby accelerating the concentration process.
III. Product Features
1. Adopts a high-quality compressor, ensuring excellent refrigeration performance.
2. Built-in condenser tube: The cold trap maintains a low temperature, resulting in stronger solvent trapping capacity.
3. One-click defrost activation function: Defrost time can be adjusted freely, with fast defrosting speed.
4. Cold trap chamber: Integrally formed 304 stainless steel tank; the coil is placed inside the tank, and a 20-30mm gap is reserved between the outer coil and the inner wall of the tank for easy cleaning.
5. PLC control system with a 4.3-inch touch screen: Displays cold trap temperature, set time, total operating time, and defrost time; supports one-click start.
6. Compact size with a vertical structure, saving laboratory space.
7. R-type rounded corner design of the cold trap chamber for easy cleaning.
8. Transparent glass cover: Enhances aesthetics and allows easy observation of the internal condition.
9. Equipped with a liquid discharge port for convenient solvent drainage.
